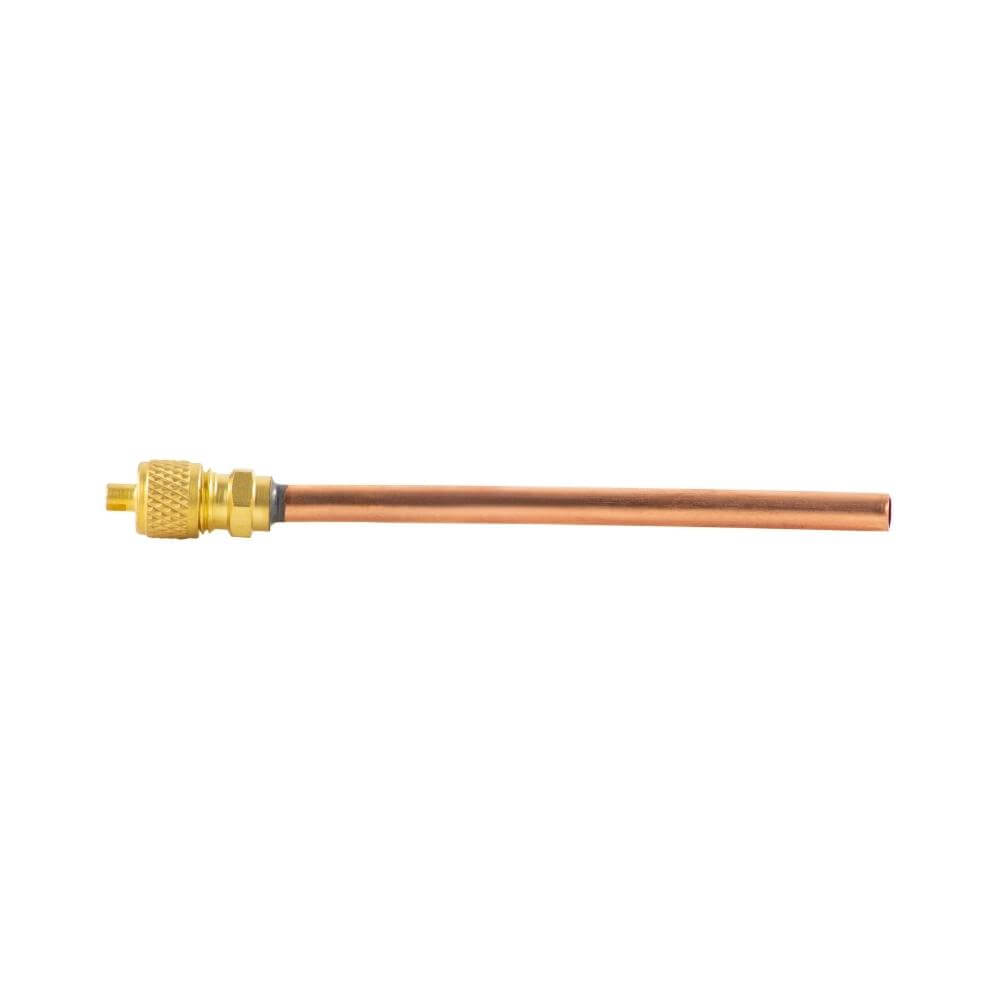

REFRIGERATION ACCESS VALVE

Product Description

A refrigeration access valve, often referred to as a Schrader valve or service valve, is a specialized high-pressure fitting that allows technicians to access a sealed cooling system. These valves are essential for performing critical maintenance tasks, such as pressure testing, refrigerant recovery, vacuuming, and recharging the system without losing the existing refrigerant charge.

Engineering and Construction

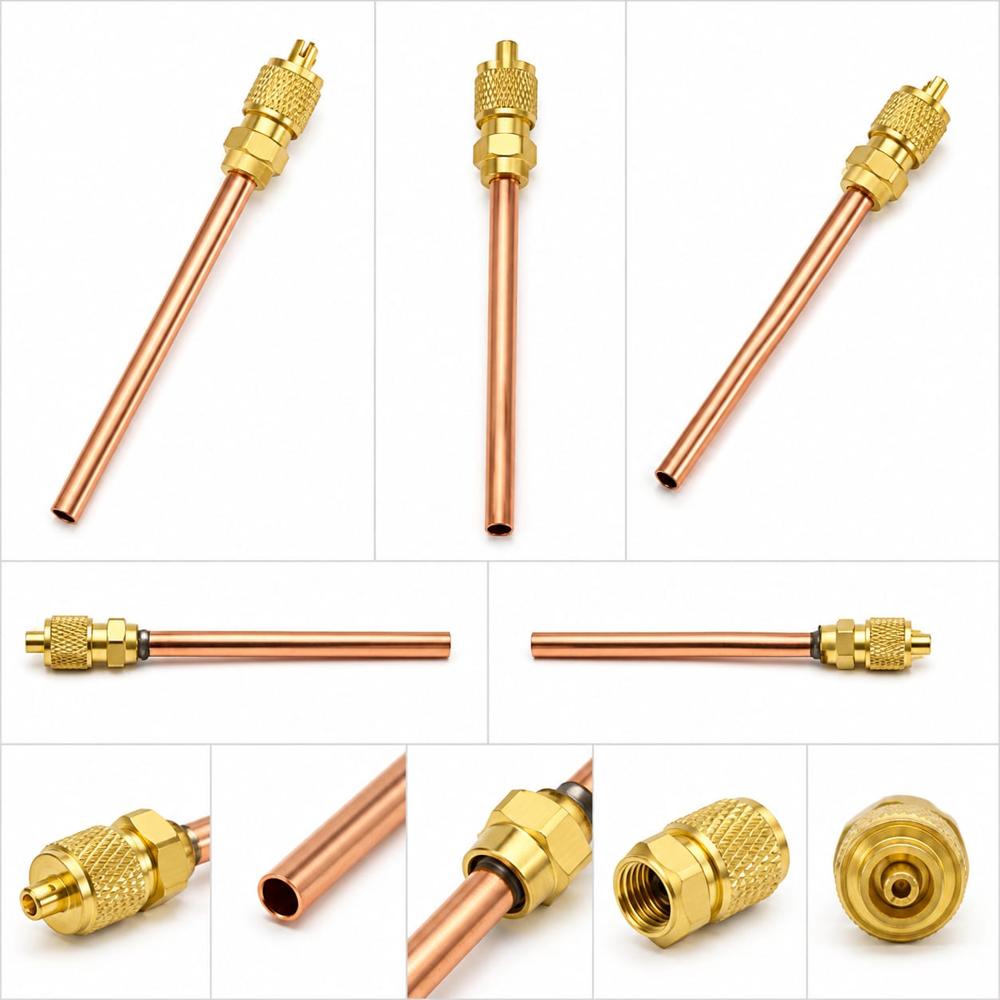

Access valves are typically manufactured from high-grade brass (C36000) for the body and a copper tube extension (often 1/4" or 1/8" OD) for easy brazing onto the main refrigeration lines. The heart of the valve is the removable valve core, which utilizes a spring-loaded pin and a high-performance synthetic rubber seal (like Neoprene or Viton). This core is designed to withstand extreme temperature fluctuations and high pressures associated with modern refrigerants like R-410A or R-32.

Key Functional Features

1. Leak-Proof Sealing: The primary seal is provided by the valve core, but a brass flare cap with an internal gasket provides a secondary, mechanical seal. This ensures the system remains hermetically sealed even if the core develops a micro-leak.

2. One-Way Flow Control: The internal pin acts as a check valve. When a service hose is attached, the pin is depressed, opening the flow. Once the hose is removed, the spring immediately snaps the valve shut.

3. Brazing Versatility: The copper tail is designed to be easily welded or brazed into the liquid or suction lines of an air conditioning unit, refrigerator, or heat pump.

Industrial Importance

In the HVAC/R industry, the reliability of the access valve is paramount. A faulty valve is a leading cause of refrigerant leaks, which compromises system efficiency and environmental safety. For manufacturers and exporters, ensuring these valves meet SAE (Society of Automotive Engineers) standards for flare fittings is mandatory. Whether used in domestic refrigerators or large-scale industrial chillers, the brass access valve remains the most vital point of contact for diagnostic and repair professionals worldwide.
