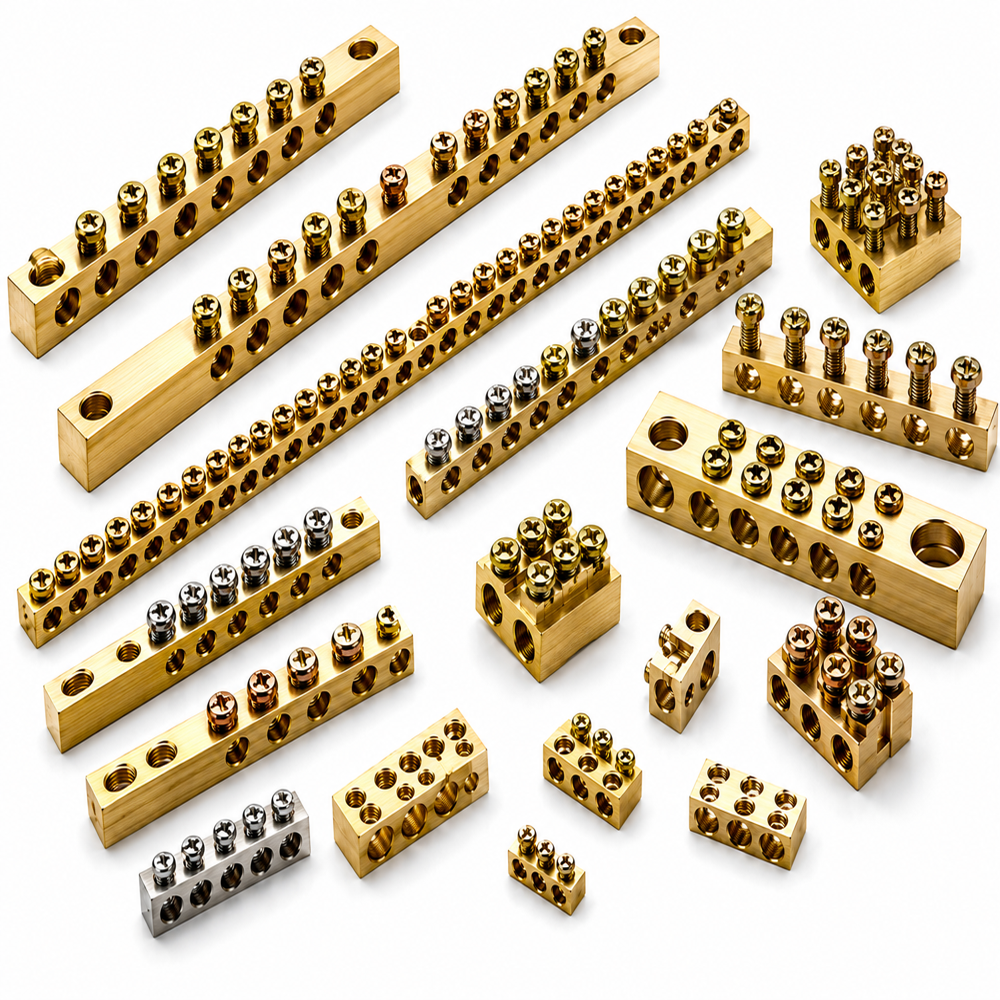

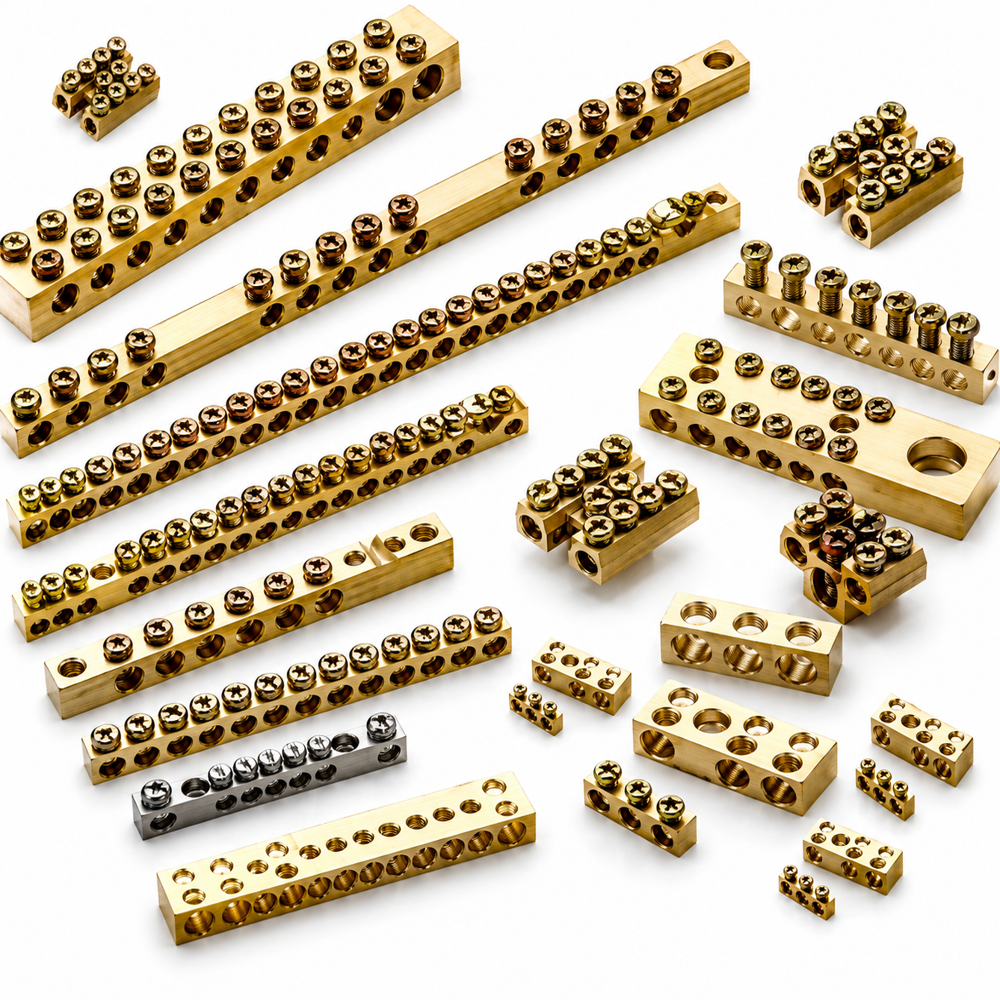

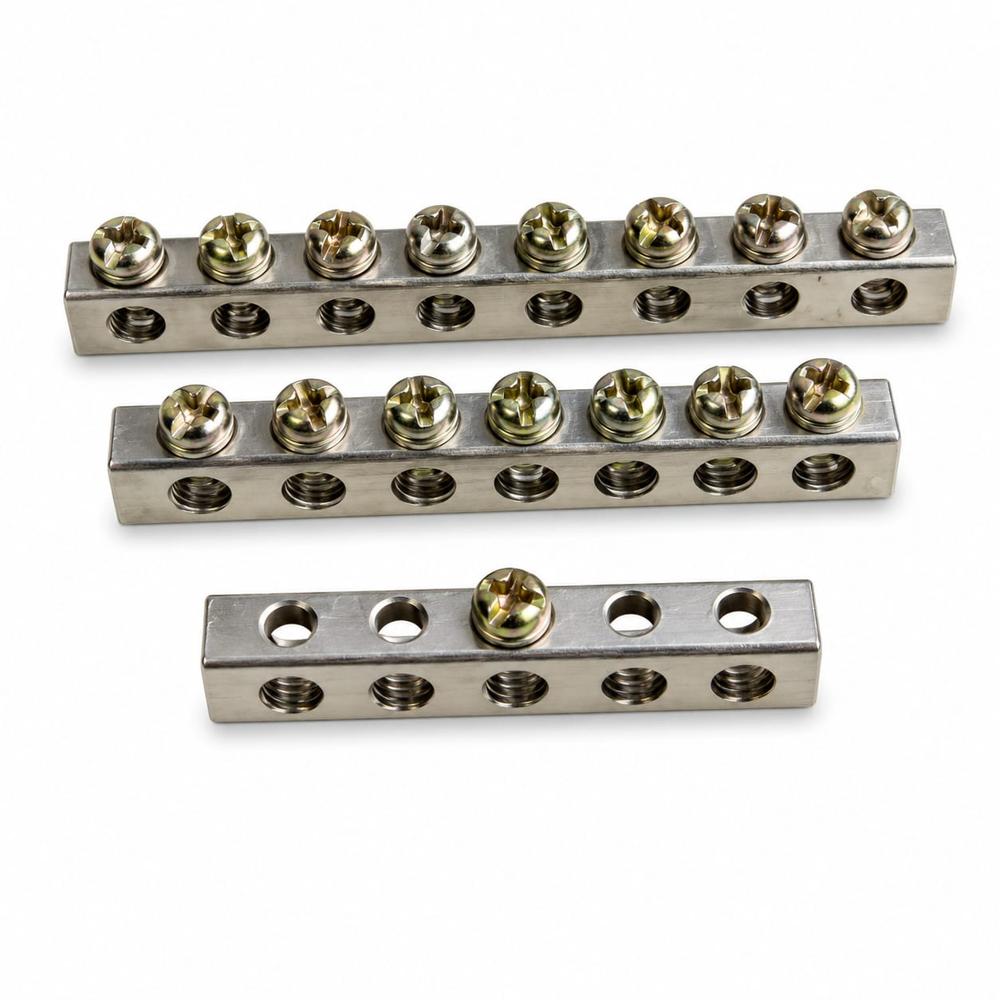

BRASS SWITCHGEAR NEUTRAL LINK

Product Description

A brass switchgear neutral link (also known as a neutral bar or terminal block) serves as a critical junction point in an electrical distribution system. Its primary function is to provide a common termination point for neutral wires, acting as a bridge to return current safely back to the power source and ensuring the stability of the electrical circuit.

Design and Construction

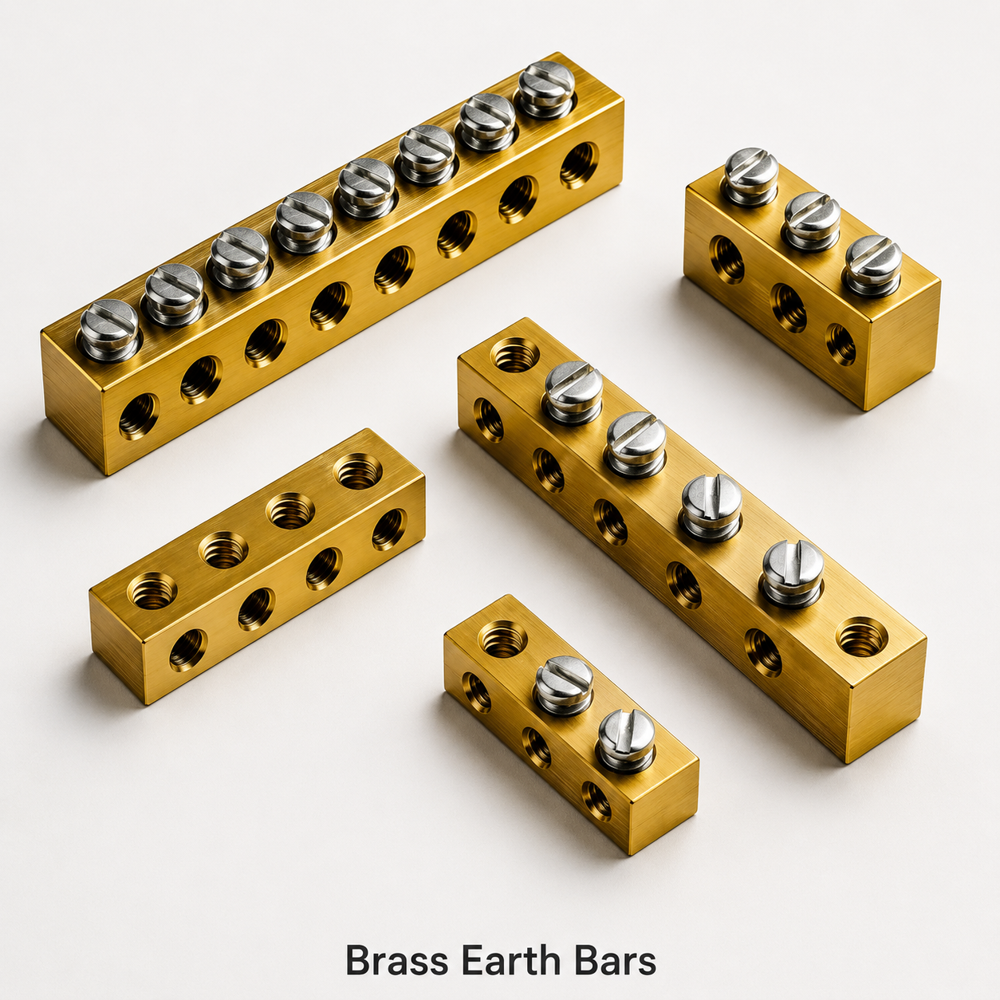

Neutral links are typically manufactured from free-cutting brass (Grade IS 319 or CuZn39Pb3) to facilitate high-speed precision machining. They are designed with a series of bored holes and cross-drilled threaded holes for screw clamping.

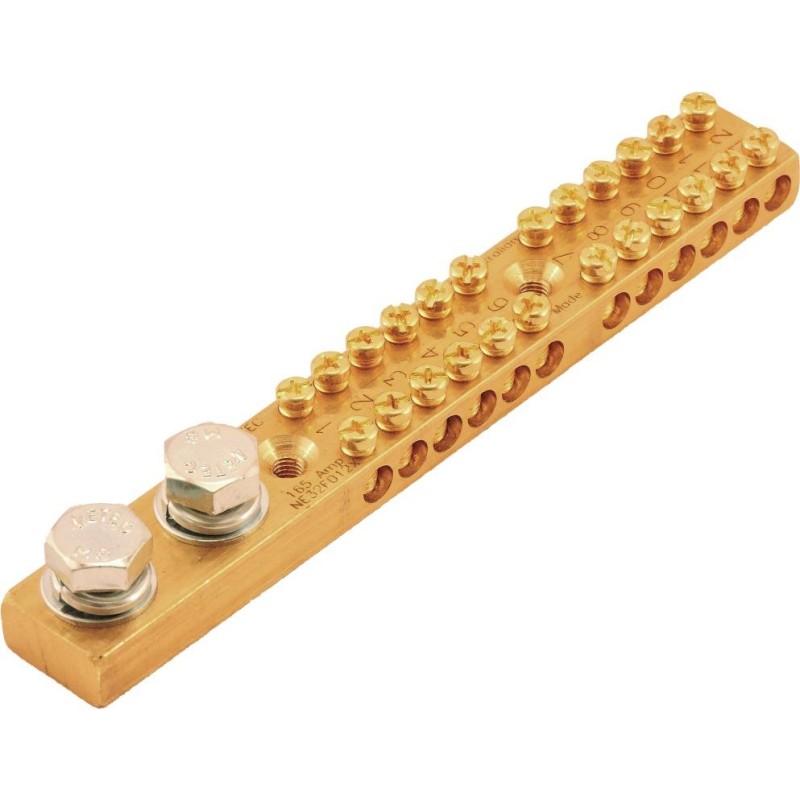

• Capacity: Available in various sizes, ranging from 4-way to over 100-way configurations, to accommodate different panel board densities.

• Mounting: Often mounted on ceramic or PVC insulators to isolate the neutral path from the grounded enclosure or chassis.

• Clamping: High-tensile brass or steel screws are used to ensure the wires remain seated under thermal expansion.

Functional Importance

• Circuit Protection: By centralizing neutral connections, these links facilitate the effective operation of residual current devices (RCDs) and circuit breakers by maintaining a clear return path.

• Voltage Balancing: In multi-phase systems, a robust neutral link helps prevent neutral "floating," which can lead to dangerous overvoltage and equipment damage.

• Space Efficiency: The compact, linear design allows for organized wiring within crowded switchgear and distribution boards (DBs).

Technical Specifications and Coating

To meet international safety standards (such as IEC or BS), neutral links must demonstrate high short-circuit withstand strength. While natural brass is standard, they are frequently nickel-plated or tin-plated to:

1. Increase surface hardness and wear resistance.

2. Provide a barrier against galvanic corrosion when connecting to aluminum conductors.

3. Enhance the aesthetic finish for high-end export-quality electrical panels.
