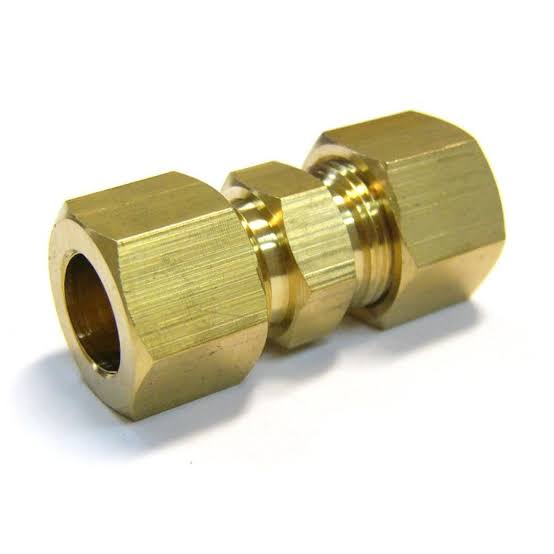

brass compression union
Product Details:
- Material BRASS
- Product Type brass compression union
- Shape Union
- Head Code Hexagon
- Surface Treatment Polished Finish
- With Rings Yes, Brass Compression Rings Included
- Working Mediums Water, Oil, Air, Gas
- Click to View more
brass compression union Price And Quantity
- 1150.0 INR/Unit
- 1000 Kilograms
brass compression union Product Specifications
- Yes, Brass Compression Rings Included
- Hexagon
- Union
- Nickel Plated
- brass compression union
- BRASS
- Water, Oil, Air, Gas
- Polished Finish
- Union (Female x Female)
- Long-lasting Performance
- Compression
- 1/8" to 2" or Custom
- Plumbing, Hydraulic, Pneumatic Systems
- DIN, ASTM, ISO
- High
- Tool-Free Assembly
- Yes
- BSP, NPT or Metric
- Up to 30 bar
- -20C to +150C
- Brass
brass compression union Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Australia, Central America, North America, South America, Asia, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
A brass compression union is a fundamental plumbing and industrial fitting designed to join two lengths of tubing or pipe without the need for soldering, welding, or threading the pipe itself. Known for its reliability and ease of installation, it is a staple in both residential plumbing and high-pressure industrial applications, particularly where a leak-proof, mechanical seal is required.
Mechanism and Components
The union consists of three primary components: the fitting body, the compression nut, and the ferrule (often referred to as the "sleeve" or "olive").
When the tubing is inserted into the fitting body and the nut is tightened, the nut applies axial force to the ferrule. This force compresses the ferrule against the tubing, causing it to "bite" into the pipe material. This creates a dual seal: one between the ferrule and the pipe, and another between the ferrule and the fitting body. Because this is a mechanical connection, it can often be disassembled and reassembled, making it ideal for systems requiring occasional maintenance.
Material Advantages
Using brass for these unions offers several distinct benefits:
-
Corrosion Resistance: High resistance to oxidation and mineral buildup, ensuring a long service life in water and gas lines.
-
Machinability: Brass can be precision-machined to tight tolerances, ensuring perfect alignment of the internal seats and threads.
-
Temperature Stability: It maintains structural integrity across a wide range of temperatures, from freezing to high-heat environments.
Applications
Brass compression unions are extensively used in:
-
Gas Lines: Connecting copper or plastic tubing for flammable gases.
-
Plumbing: Hot and cold water distribution.
-
Hydraulic Systems: Handling low to medium pressure fluids in machinery.
-
Instrumentation: Connecting sensitive gauges and sensors in industrial processing plants.
Their ability to withstand vibration and thermal expansion makes them superior to standard push-fit connectors in rigorous industrial settings.
Superior Corrosion Resistance and Durability
Crafted from premium brass and plated with nickel, our compression unions excel in harsh environments. The polished finish and high corrosion resistance ensure reliable performance over time, making them ideal for water, oil, air, and gas applications. With standards-compliant construction, these connectors withstand both high pressure and wide temperature ranges.
Effortless, Tool-Free Installation
The union's innovative design facilitates straightforward, tool-free assembly, eliminating the need for specialist tools or training. Simply align the pipes, insert the brass compression rings, and hand-tighten the hexagon nut for a secure, leak-free connection. This user-friendly process ensures quick installation and reduces maintenance downtime.
Wide Application and Flexible Sizing
Our Brass Compression Unions can be used in diverse applications including plumbing, hydraulic, and pneumatic systems. With a broad range of sizes from 1/8" to 2" and custom options available, along with thread compatibility for BSP, NPT, and metric standards, they offer unmatched versatility for industrial, commercial, and residential projects.
FAQ's of brass compression union:
Q: How do I install the brass compression union without tools?
A: To install the brass compression union, start by sliding the compression rings onto the pipe ends. Insert the pipes into the union body and then hand-tighten the hexagonal nuts until a secure, leak-proof seal is achieved. No specialized tools are required, making the process quick and straightforward.Q: What are the main benefits of choosing a brass compression union for plumbing or hydraulic systems?
A: Brass compression unions offer exceptional corrosion resistance, reliable leak-free performance, and compatibility with a variety of working mediums such as water, air, oil, and gas. Their tool-free installation and reusability make them cost-effective for both installation and future maintenance.Q: Which thread standards are supported by this compression union?
A: Our unions support BSP, NPT, and metric thread types, ensuring adaptability with various regional and international piping systems. This versatility simplifies integration into existing or new installations worldwide.Q: Where are brass compression unions typically used?
A: These unions are widely used in plumbing, hydraulic, and pneumatic systems across residential, commercial, and industrial environments. Their durability, corrosion resistance, and compatibility with multiple media make them suitable for demanding applications.Q: What process is involved in reusing the brass compression union?
A: To reuse, simply disassemble the union by loosening the hex nuts and removing the pipes. Inspect the compression rings and threads for wear; if they are in good condition, the union can be reinstalled following the original assembly procedure. This feature allows for system modifications without the need for replacement parts.Q: When is a custom size or configuration recommended?
A: Custom sizes or configurations are recommended for specialized projects where standard sizes may not fit or when unique connection requirements exist. Please contact us with your specifications to tailor a solution to your needs.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
