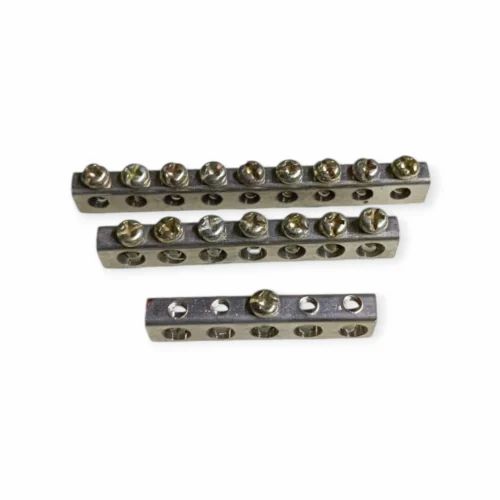

BRASS SINGLE POLE NEUTRAL BAR

A Brass Single Pole Neutral Bar is a fundamental grounding and termination component used extensively in electrical wiring systems. It acts as a centralized busbar for neutral wire connections, ensuring a safe and efficient return path for electrical current in single-phase distribution networks.

Material Specifications

The performance of a neutral bar is heavily dependent on its metallurgy. Most high-quality bars are extruded from CW614N or CZ121 brass, known for its excellent machinability and high electrical conductivity. In environments prone to moisture or chemical exposure, these bars are typically Nickel-plated to prevent "season cracking" and galvanic corrosion, ensuring the integrity of the connection over decades of service.

Design and Construction

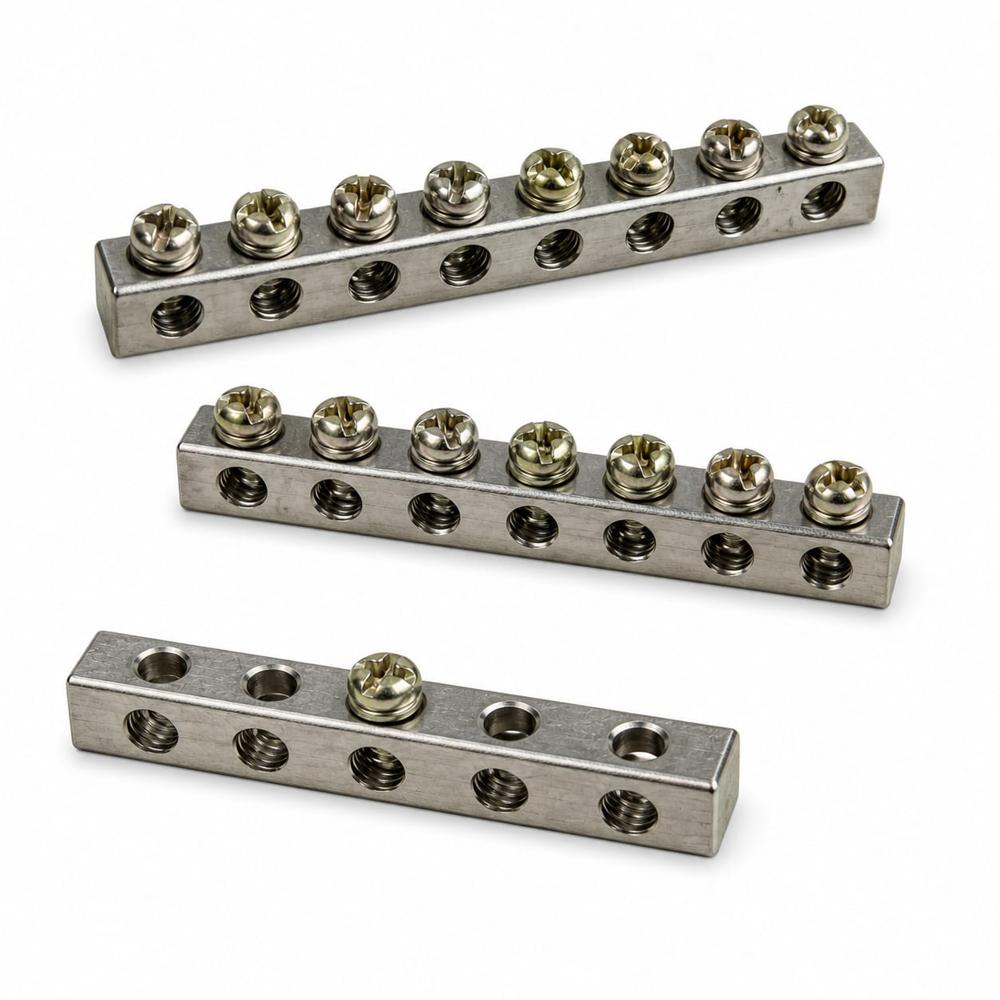

Single pole neutral bars are characterized by a solid rectangular or square cross-section with a series of precision-drilled "tunnels."

• Terminal Configuration: They generally feature one or two larger incoming "main" ports and several smaller outgoing ports.

• Fastening System: Each port is fitted with a set screwusually made of brass or zinc-plated steeldesigned to apply consistent pressure on the conductor without shearing the wire strands.

• Base Options: These bars can be supplied as bare metal for direct mounting or pre-assembled on DMC/BMC (Dough Moulding Compound) or Nylon insulators to prevent short-circuiting against the metal enclosure.

Applications and Utility

These components are the backbone of:

• Consumer Units: Managing the neutral links for domestic RCD (Residual Current Device) protection.

• Industrial Control Panels: Providing a common neutral point for PLC (Programmable Logic Controller) circuits and sensor arrays.

• Junction Boxes: Simplifying complex wiring by replacing multiple wire-nut connections with a single, organized terminal block.

Why Brass?

Brass is favored over aluminum or steel due to its balance of cost and conductivity. It offers a lower contact resistance than steel and is less prone to the "creep" or thermal expansion issues often associated with aluminum terminals. For manufacturers and installers, the Brass Single Pole Neutral Bar remains the industry standard for creating reliable, low-maintenance electrical termination points.
