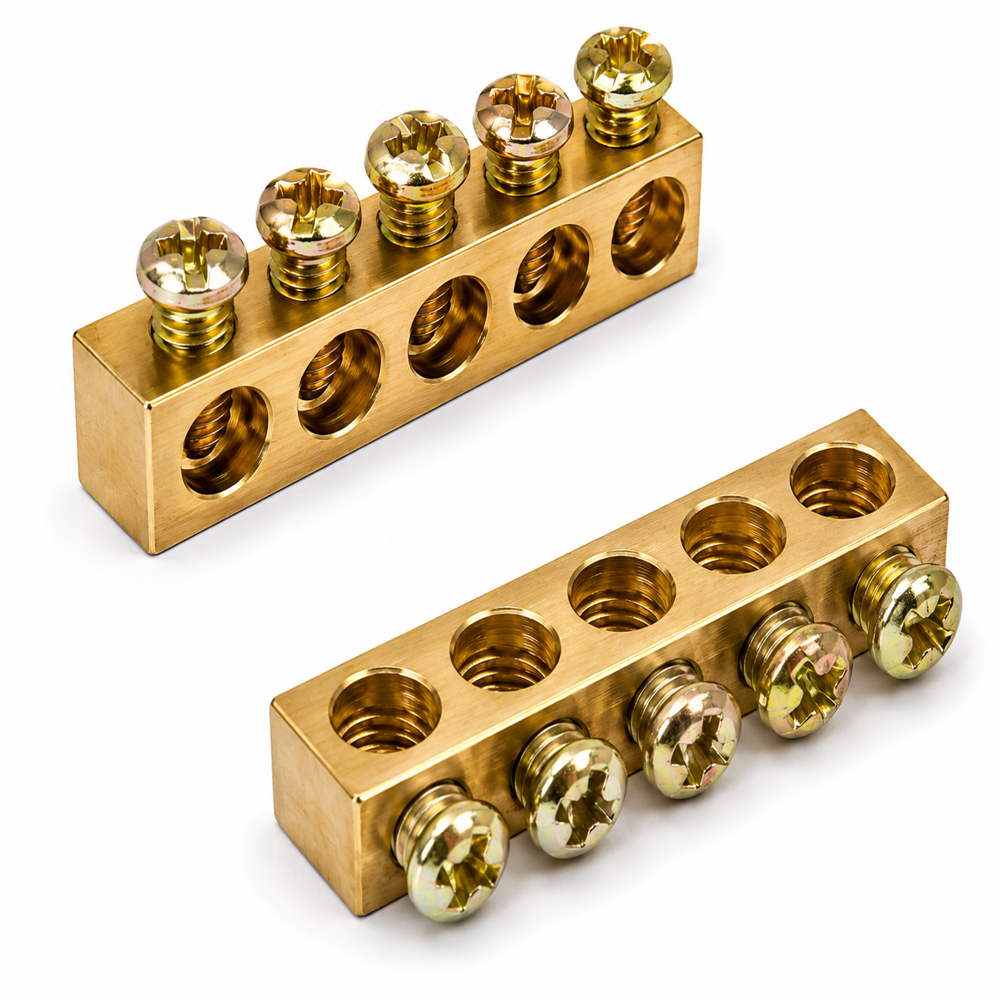

BRASS SCREW CLAMP TERMINAL
Product Details:
- Product Type Other
- Style Screw Clamp
- Material Capabilities Brass
- Surface Treatment Nickel Plated / Natural Brass
- CNC Machining Yes
- Size MULTI
- Dimension (L*W*H) Varies as per model (e.g., 12mm x 10mm x 18mm)
- Click to View more
BRASS SCREW CLAMP TERMINAL Price And Quantity
- 1050.0 INR/Kilograms
- 1000 Kilograms
BRASS SCREW CLAMP TERMINAL Product Specifications
- Screw Clamp
- Varies as per model (e.g., 12mm x 10mm x 18mm)
- Golden
- Brass
- BRASS
- Other
- MULTI
- Nickel Plated / Natural Brass
- Yes
- Up to 16 sq. mm
- Metric / Imperial (as required)
- Yes
- -20C to +120C
- RoHS compliant
- < 1 m
- Electrical Distribution, Circuit Terminations
- Up to 32A
- Panel Mounted / Rail Mounted
- Box or Polybag
BRASS SCREW CLAMP TERMINAL Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa, South America
- All India
Product Description
A brass screw clamp terminal is a robust electrical connection interface designed to provide a secure mechanical and electrical bond between a conductor and a circuit. These terminals are the gold standard for industrial terminations where vibration resistance, high torque, and long-term reliability are non-negotiable.
Design and Functional Logic
The screw clamp mechanism operates by capturing a wire within a "cage" or under a terminal plate. As the screw is tightened, it exerts a downward force that compresses the wire directly against the brass conductive body.
-
Gas-Tight Connection: The high clamping pressure creates a "gas-tight" seal, preventing oxygen and moisture from entering the contact area, which eliminates the risk of oxidation at the point of contact.
-
Vibration Safety: Precision-threaded brass ensures that the screw maintains its tension even in environments with heavy machinery or constant movement.
Material Advantages
-
High Strength-to-Weight Ratio: Brass allows for thin-walled designs that can still withstand high tightening torques without stripping threads or cracking.
-
Anti-Magnetic Properties: Being non-ferrous, brass terminals do not interfere with sensitive electronic signals or magnetic fields, making them ideal for high-frequency applications.
-
Corrosion Resistance: The alloy naturally forms a protective patina, ensuring the terminal remains conductive for decades in demanding industrial atmospheres.
Technical Applications
Brass screw clamps are found in almost every high-stakes electrical environment:
-
Circuit Breakers and RCDs: Ensuring the primary power line is securely fastened to the safety device.
-
Industrial Enclosures: Serving as the main entry and exit points for DIN-rail mounted terminal blocks.
-
Renewable Energy: Used in solar inverters and battery storage systems to manage high-current DC connections.
-
Heavy Machinery: Providing the interface for motor control units and sensor arrays.
Versatile Application
Engineered for use in electrical distribution and circuit terminations, these brass screw clamp terminals support a broad range of wire sizes and mounting preferences. Their robust design makes them adaptable for panel-mounted or rail-mounted installations, ensuring dependable performance across multiple industrial and commercial settings.
Superior Material and Finish
Manufactured from premium brass, the terminals offer outstanding corrosion resistance and low contact resistance (<1 m). Choose from nickel-plated or natural brass finishes, each CNC machined to exacting standards for consistent quality and reliability in both challenging and everyday environments.
FAQ's of BRASS SCREW CLAMP TERMINAL:
Q: How do I install the brass screw clamp terminal for secure wiring?
A: Begin by choosing the appropriate size terminal for your wire (up to 16 sq. mm) and preferred mounting style. Insert the stripped end of the wire into the clamp, then tighten the screw securely to ensure a strong connection. Depending on the model, mount the terminal onto a panel or rail as per your application's requirements.Q: What are the main benefits of using a brass screw clamp terminal in electrical circuits?
A: Brass screw clamp terminals provide robust mechanical strength, excellent conductivity, and reliable corrosion resistance. This results in efficient and long-lasting connections, minimizes maintenance requirements, and ensures safety in distribution and termination circuits.Q: When should I choose a screw clamp terminal with nickel plating over natural brass?
A: Nickel-plated terminals offer enhanced corrosion protection in harsher environments or applications where exposure to moisture or chemicals is likely. If your installation requires superior durability, nickel plating is preferred; otherwise, natural brass is suitable for general applications.Q: Where can these terminals be used in electrical distribution systems?
A: These brass screw clamp terminals are ideal for use in distribution boards, control panels, switchgear, and other applications requiring secure and stable connections. Their versatility allows them to be installed in both industrial and commercial electrical systems.Q: What processes ensure the quality and precision of these brass terminals?
A: Each terminal is manufactured using advanced CNC machining, ensuring precise dimensions and consistent quality. This process, combined with stringent material selection and surface treatments, helps meet industry standards and RoHS compliance.Q: How does the product accommodate multiple sizes and mounting options?
A: The terminals are available in various sizes and styles, suitable for both metric and imperial threads. Their design supports mounting on panels or rails, giving users flexibility to match specific installation needs.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+

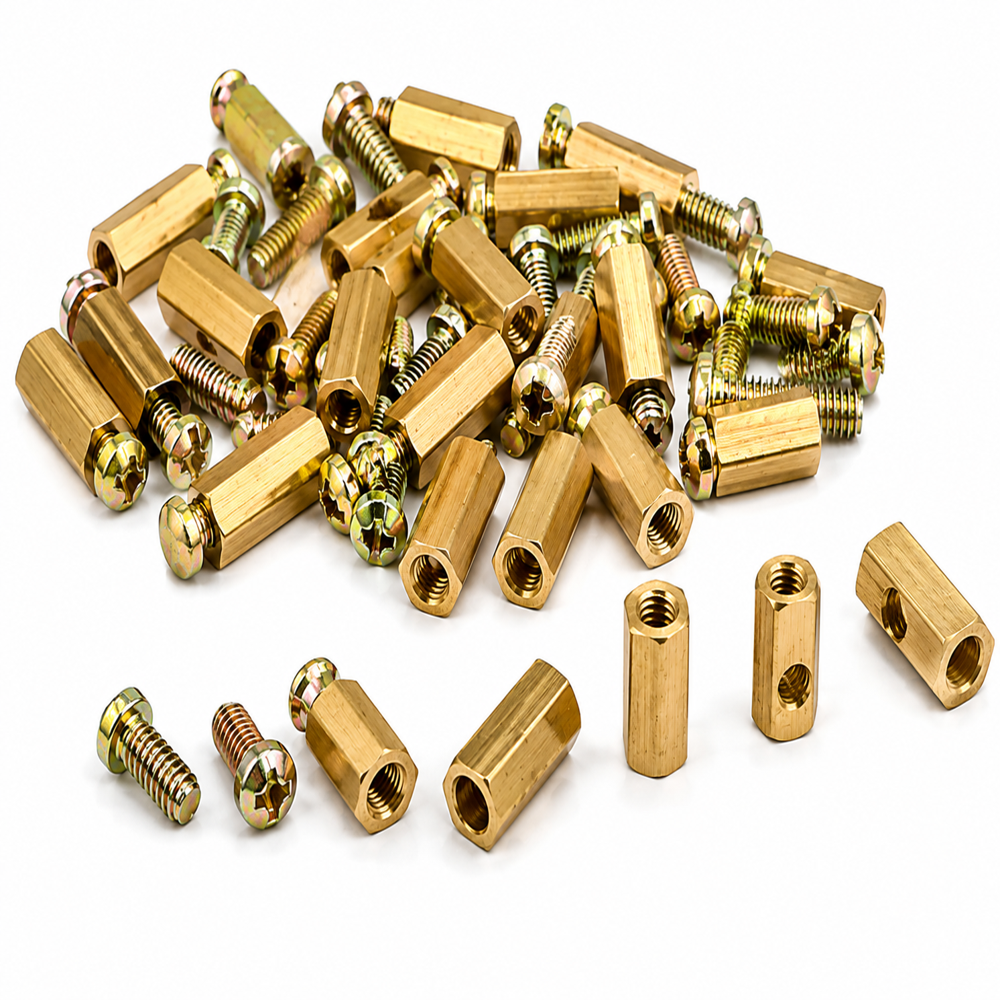

Other Products in 'Brass Electrical Components' category
