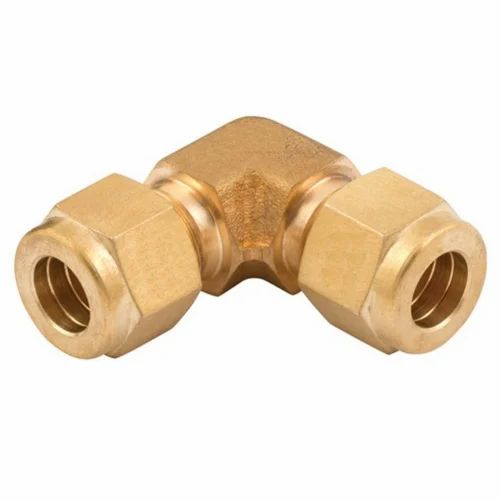

BRASS DOUBLE END ELBOW

Product Description

A brass double-end elbow is a specialized plumbing or gas fitting used to connect two pieces of tubing or pipe at a 90-degree angle, where both ends of the fitting share the same connection type. Unlike a "street" elbow, which has one male and one female end, a double-end elbow is symmetrical.

Common Configurations

These fittings are typically identified by the type of connection on each "end":

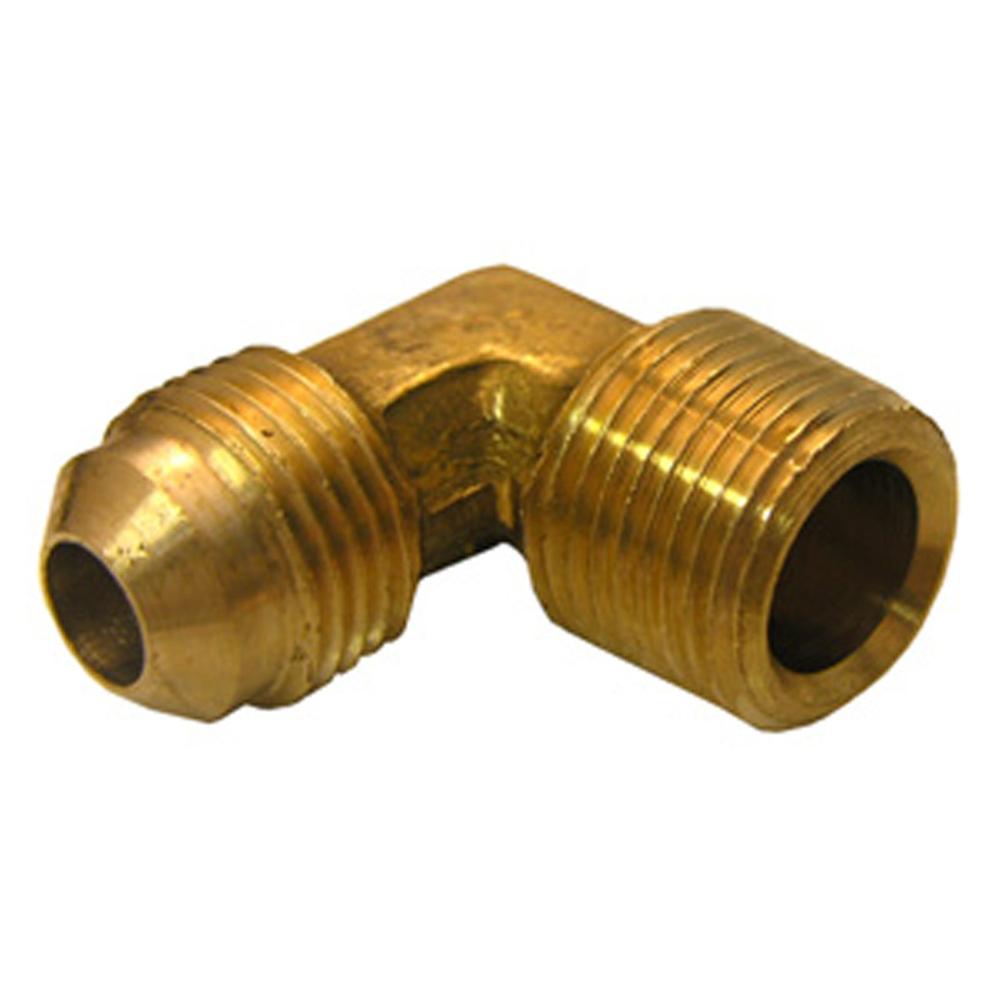

• Double Flare: Features two external tapered threads designed to accept flared tubing and flare nuts. This is common in refrigeration (HVAC) and gas line applications.

• Double Female (FPT): Both ends have internal threads. This is the standard "elbow" used to join two male pipes or nipples.

• Double Male (MPT): Both ends have external threads, often used to bridge two female ports in a manifold or valve block.

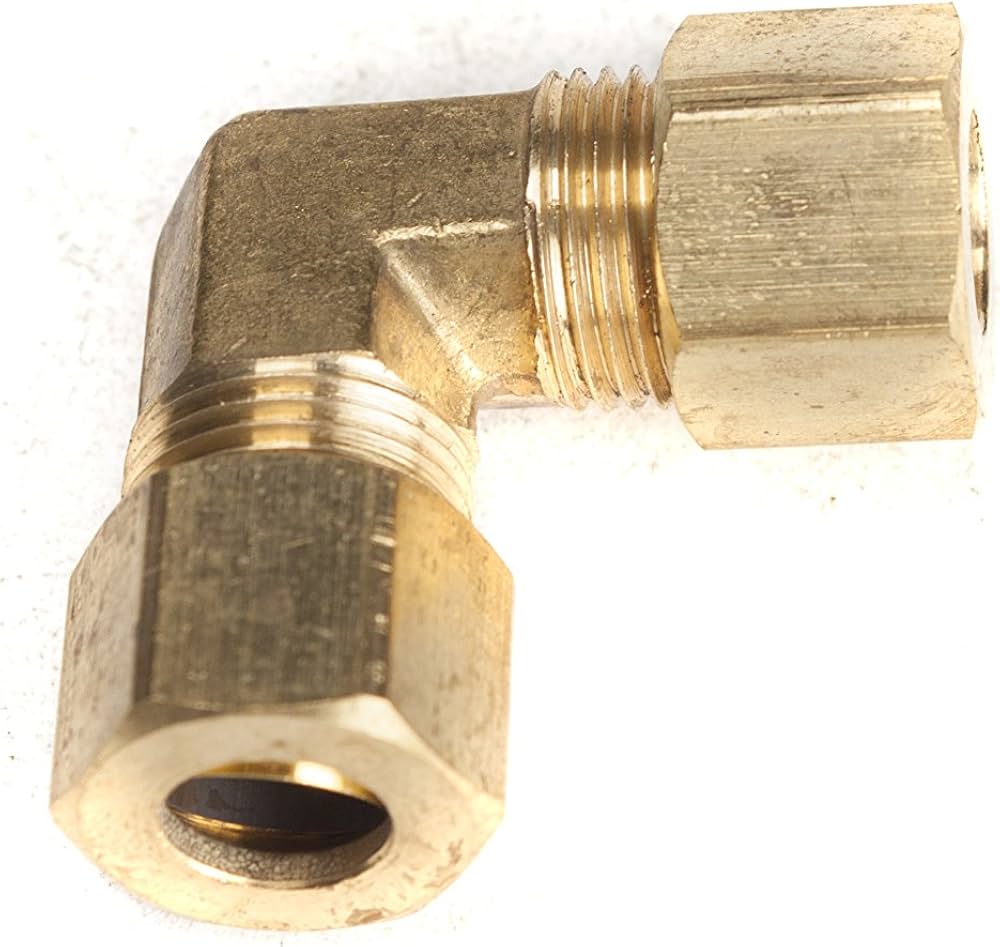

• Double Compression: Used for quick, solderless connections on copper or plastic tubing, often found in under-sink plumbing or instrumentation.

Why Use Brass?

Brass is the material of choice for double-end elbows due to its durability and corrosive resistance. Because brass is a non-ferrous metal, it will not rust when exposed to water, making it ideal for residential plumbing. In industrial settings, its ability to withstand high pressures (often up to 3,000 PSI for flare types) and its spark-resistance make it a safety standard for fuel and flammable gas transport.
