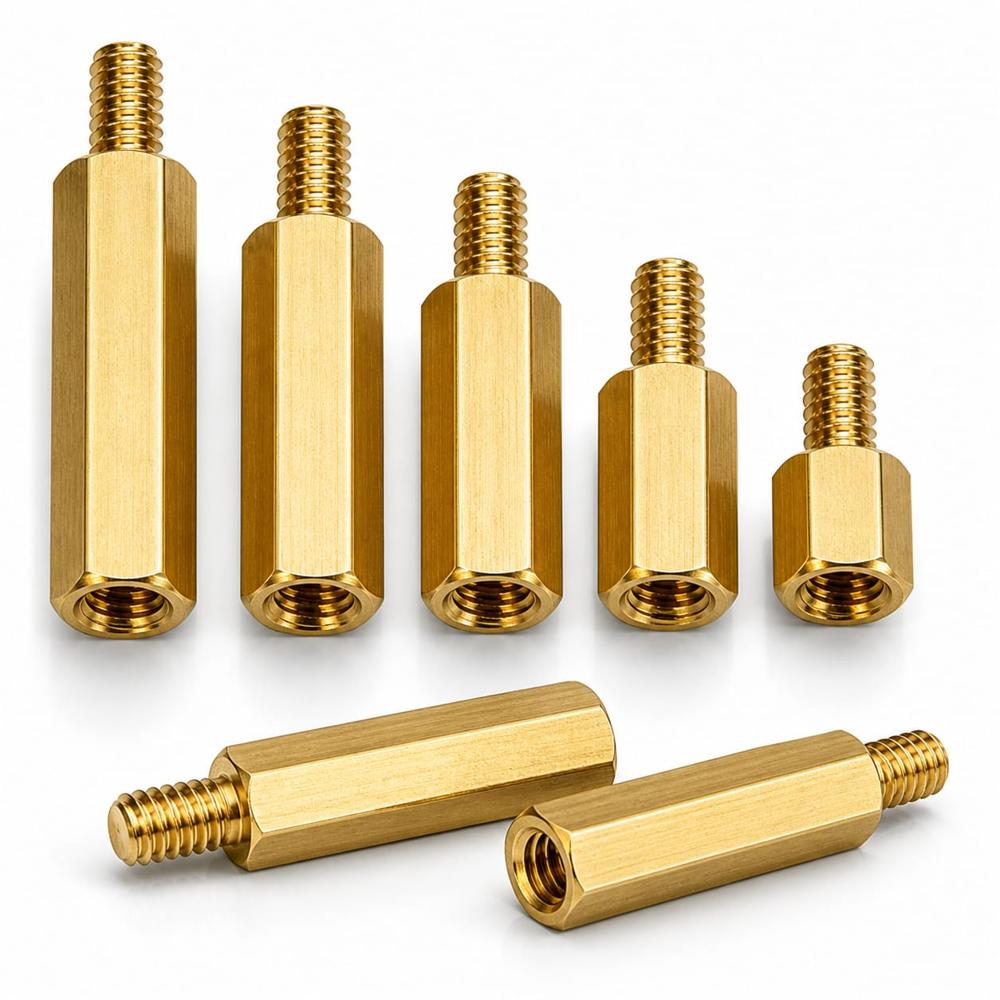

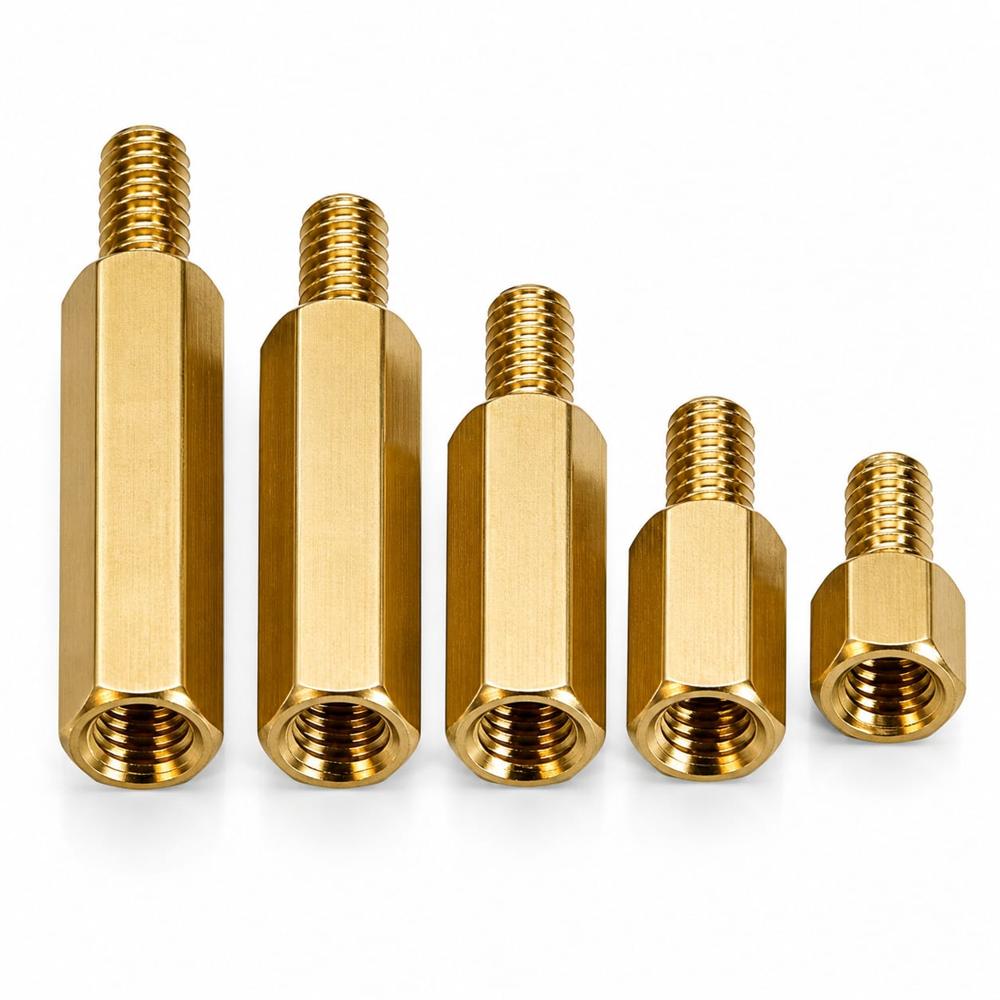

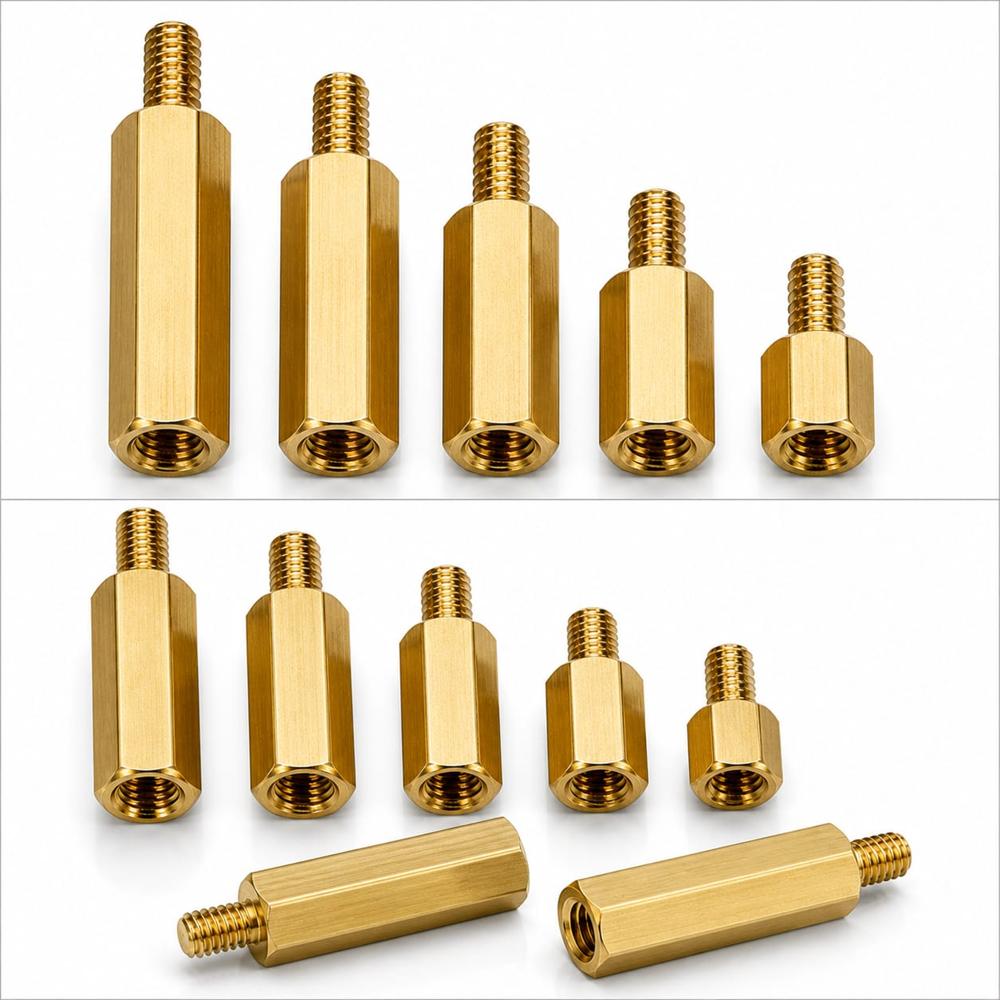

brass pcb spacer
Product Details:
- Product Type brass pcb spacer
- Material BRASS
- Type PCB Spacer
- Color Golden
- Size M3 to M10 (custom sizes available)
- Diameter 3mm to 10mm
- Length 5mm to 50mm
- Click to View more
brass pcb spacer Price And Quantity
- 1100.0 INR/Kilograms
- 1000 Kilograms
brass pcb spacer Product Specifications
- M3 to M10 (custom sizes available)
- 5mm to 50mm
- Nickel Plated / Natural Brass
- BRASS
- 3mm to 10mm
- Golden
- PCB Spacer
- Round / Hexagonal
- brass pcb spacer
- Box or Bulk Packing
- Available as per customer requirements
- Metric Thread
- Easy to Install with Screwdriver
- Up to 150C
- RoHS Compliant
- High
- Yes
- Used for mounting PCBs and providing isolation
brass pcb spacer Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, South America, Eastern Europe, Australia, Western Europe, Middle East, Central America, North America, Africa
- All India
Product Description
Brass PCB Spacer Discs: Critical Hardware for Electronic Integrity
The Brass PCB Spacer Disc is a specialized fastening component designed to provide precise elevation and structural support for Printed Circuit Boards (PCBs) within electronic enclosures. Unlike standard industrial spacers, these discs are engineered with a focus on low-profile mounting and electrical grounding, ensuring that the delicate circuitry of a board is kept at a safe, consistent distance from a metal chassis or adjacent components.
Technical Importance in Electronics
In high-performance electronics, maintaining a uniform gap is vital to prevent electrical short-circuiting and to manage heat dissipation. Brass is the industry-standard material for PCB spacers due to its excellent electrical conductivity. When used as a mounting point, a brass spacer disc can double as a grounding path, connecting the boards ground plane directly to the enclosure. Furthermore, brass is non-magnetic, meaning it will not interfere with high-frequency signals or sensitive magnetic components like inductors and transformers.
Design and Manufacturing Standards
Typically machined from C36000 Free-Cutting Brass, these discs are produced to meet strict ISO and RoHS compliance standards. In professional assemblies, they are often used in conjunction with threaded standoffs to create a robust "sandwich" mount. Key specifications for these components include:
-
Precision Thickness: Usually ranging from 0.5mm to 5mm to accommodate tight spacing in compact devices.
-
Bore Diameter: Precisely sized for M2, M2.5, or M3 screws, which are the standard fasteners for modern PCB assembly.
-
Surface Finish: Often Nickel or Tin-plated to enhance corrosion resistance and ensure reliable electrical contact over the life of the device.
Strategic Applications
Brass PCB spacer discs are found in everything from industrial control panels and telecommunications rack-mounts to high-end consumer audio equipment. Their ability to provide mechanical stability while maintaining electrical continuity makes them a superior choice over nylon or plastic alternatives in environments subject to high temperatures or mechanical vibration. For manufacturers, these discs represent a small but critical investment in the longevity and reliability of the final electronic product.
Versatile PCB Mounting Solution
Brass PCB spacers provide reliable support and isolation for mounting printed circuit boards. Their robust construction, coupled with the versatility in size and shape, ensures compatibility with various industrial and electronic assembly needs.
Superior Material and Finishing
Manufactured from high-quality brass, these spacers guarantee corrosion resistance and longevity. The option of natural brass or nickel-plated finishes further enhances their durability, making them suitable for demanding environments.
Customized for Your Requirements
We offer customization in sizes, shapes, and packaging options, ensuring that the spacers meet specific project demands. Our solutions cater to exporters, manufacturers, and suppliers, offering both small-scale and bulk delivery worldwide.
FAQ's of brass pcb spacer:
Q: How are brass PCB spacers installed?
A: Brass PCB spacers can be quickly and easily installed using a standard screwdriver. Simply align the spacer with the mounting hole and secure it by tightening the screw through the PCB and into the spacer.Q: What makes these spacers suitable for electronic assemblies?
A: These brass PCB spacers provide both mechanical support and electrical isolation, preventing short circuits and ensuring secure, vibration-resistant mounting of circuit boards.Q: When should I use nickel-plated versus natural brass spacers?
A: Nickel-plated spacers offer enhanced corrosion resistance, making them preferable in humid or chemically exposed environments, while natural brass is ideal for general applications requiring excellent mechanical properties.Q: Where can I request customized dimensions or shapes for spacers?
A: Customization requests can be made during the ordering process. We accommodate special size, thread, and shape requirements to fit your specific PCB mounting needs.Q: What are the benefits of using brass as a spacer material?
A: Brass provides high tensile strength, excellent corrosion resistance, and reliable performance across a wide temperature range, making it an optimal choice for PCB mounting in both industrial and commercial electronics.Q: How are these spacers packaged for delivery?
A: We offer flexible packing options, including box and bulk packing configurations, to suit both small and large volume orders for global distributors, manufacturers, and exporters.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+

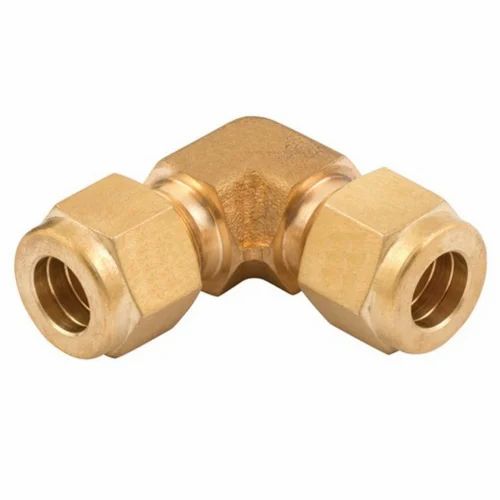

Other Products in 'Brass Sanitary Parts' category
