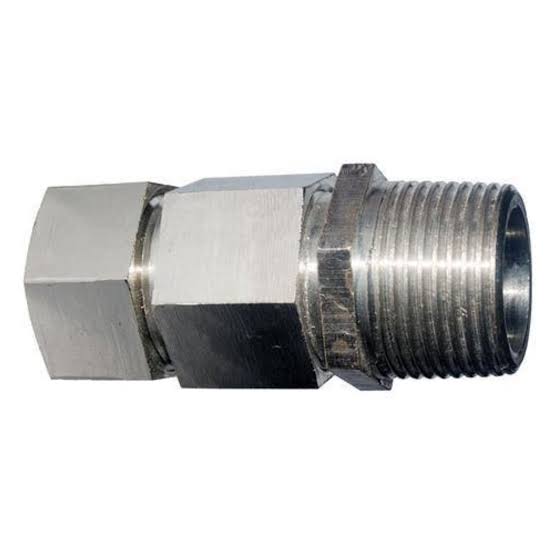

NPT CABLE GLAND
Product Details:
- Tensile Strength High, as per standard mechanical requirements
- Armored Material Optional brass or SS clamping
- Install Type Mount through NPT threaded hole
- Cable Type Round, armored or unarmored cables
- Usage & Applications Cable entry for enclosures, panels, junction boxes
- Weight Varies with size (e.g., 50-400g per piece)
- Rated Temperature -40C to +100C
- Click to View more
NPT CABLE GLAND Price And Quantity
- 1200.0 INR/Kilograms
- 1000 Kilograms
NPT CABLE GLAND Product Specifications
- Industrial, Power Station
- Threaded/Nut locking
- NPT Cable Gland
- Brass, Nickel-plated Brass, Stainless Steel, or Polyamide
- STRONG QUALITY
- Metallic, Natural, or Black
- Up to 690V
- -25C to +80C
- Varies with size (e.g., 50-400g per piece)
- PA (Polyamide) or Nylon
- -40C to +100C
- Cable entry for enclosures, panels, junction boxes
- 1/4 to 4 NPT thread, various sizes available
- Cable diameter range supported: 3 mm to 50 mm depending on model
- Applicable to cable being used
- -40C to +100C
- Mount through NPT threaded hole
- Round, armored or unarmored cables
- Not applicable (used for cable termination at gland entry)
- Customizable / As per cable length
- Metallic Silver or Black (varies by model)
- High, as per standard mechanical requirements
- Optional brass or SS clamping
- As per gland size (e.g., 1/2, 3/4, 1 NPT thread)
- EPDM or Neoprene Rubber
- Resistant to oils, greases, and common industrial solvents
- UL 94 V-2 or V-0
- Varies-typically covers several cable outer diameters per gland size
- Excellent (brass, nickel-plated, or stainless steel options)
- Locknut, sealing washer (on request)
- Screw-in with locknut and sealing washer (for non-threaded holes)
- NPT (National Pipe Thread)
- IP66/IP68 (depending on model and installation)
NPT CABLE GLAND Trade Information
- Others
- 5000 Kilograms Per Month
- 2 Week
- South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, North America
- All India
Product Description
The NPT Cable Gland (National Pipe Tapered) is a rugged, industrial-grade connector designed to secure and protect electrical cables as they enter enclosures, junction boxes, and control systems. Built according to North American ANSI/ASME B1.20.1 standards, these glands utilize a tapered thread design that creates a high-pressure, liquid-tight seal through a metal-to-metal wedging action, often supplemented by a sealing washer or O-ring.
Key Performance Features
-
Environmental Integrity: Most NPT glands carry an IP68 or NEMA 4X/6P rating, offering total protection against dust and prolonged water immersion.
-
Superior Strain Relief: They feature a high-performance internal bushing that grips the cable sheath, preventing internal terminations from pulling out due to vibration or tension.
-
Material Versatility: Available in Nickel-Plated Brass for corrosion resistance, Stainless Steel for food-grade or marine use, and Nylon for lightweight, non-corrosive applications.
Industrial Applications
Because of their reliable "tight fit" seal, NPT glands are the standard choice for the oil and gas, petrochemical, and manufacturing industries. They are essential for ensuring explosion-proof and flame-retardant safety in hazardous areas. Whether used in automation or heavy machinery, NPT cable glands provide a professional, safe, and durable termination point that prevents environmental contaminants from damaging sensitive electronics.
Superior Protection and Durability
NPT Cable Glands are engineered to provide superior ingress protection, backed by international IP66/IP68 ratings, ensuring reliable performance against dust and water intrusion. Manufactured from corrosion-resistant materials and featuring flame-retardant inserts, these glands excel in hostile environments, making them highly durable for long-term industrial use.
Flexible Sizing and Easy Installation
Available in NPT threads from 1/4 to 4 inches, these cable glands accommodate various cable diameters and installation requirements. Their mounting system supports both threaded and non-threaded holes using locknuts and sealing washers, ensuring secure and adaptable installation for panels, enclosures, or junction boxes.
Versatile Application Range
The glands support round, armored, or unarmored cables, offering customizable lengths and multiple material options to suit a spectrum of applications. Their robust construction and efficient sealing make them an excellent choice for power stations, industrial panels, and challenging environments where reliability, safety, and flexibility matter.
FAQ's of NPT CABLE GLAND:
Q: How do I select the right size NPT Cable Gland for my application?
A: Choose a cable gland size based on your cable's outer diameter and the required NPT thread type. Each gland covers a range of cable diameters and is available in various NPT thread sizes (from 1/4 to 4 inches), ensuring a secure fit for your specific needs.Q: What level of environmental protection do these cable glands provide?
A: Depending on the model and installation, NPT Cable Glands offer ingress protection ratings of IP66 or IP68, safeguarding electrical connections against dust, water jets, and prolonged submersion, making them ideal for harsh industrial conditions.Q: Where are NPT Cable Glands typically used?
A: They are widely employed in enclosures, junction boxes, and panels used in industrial facilities, power stations, and export-quality equipment requiring reliable cable entry points and environmental sealing.Q: What materials are available and how do I choose the best one?
A: Glands are offered in brass, nickel-plated brass, stainless steel, and polyamide. The choice depends on your application's corrosion, flame, and environmental resistance needs-stainless steel for maximum durability, polyamide for light applications, and brass variants for general industrial use.Q: Can I use NPT Cable Glands with armored cables?
A: Yes, compatible models support clamping and sealing for both armored and unarmored round cables. Optional internal brass or stainless steel clamping ensures a robust connection and strain relief for armored cable installations.Q: What is the process of installing an NPT Cable Gland?
A: Install by screwing the gland into an NPT-threaded hole or use the included locknut and sealing washer for non-threaded panels. Feed your cable through the gland and tighten to compress the sealing insert (EPDM or neoprene rubber), creating a watertight and dustproof seal.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
