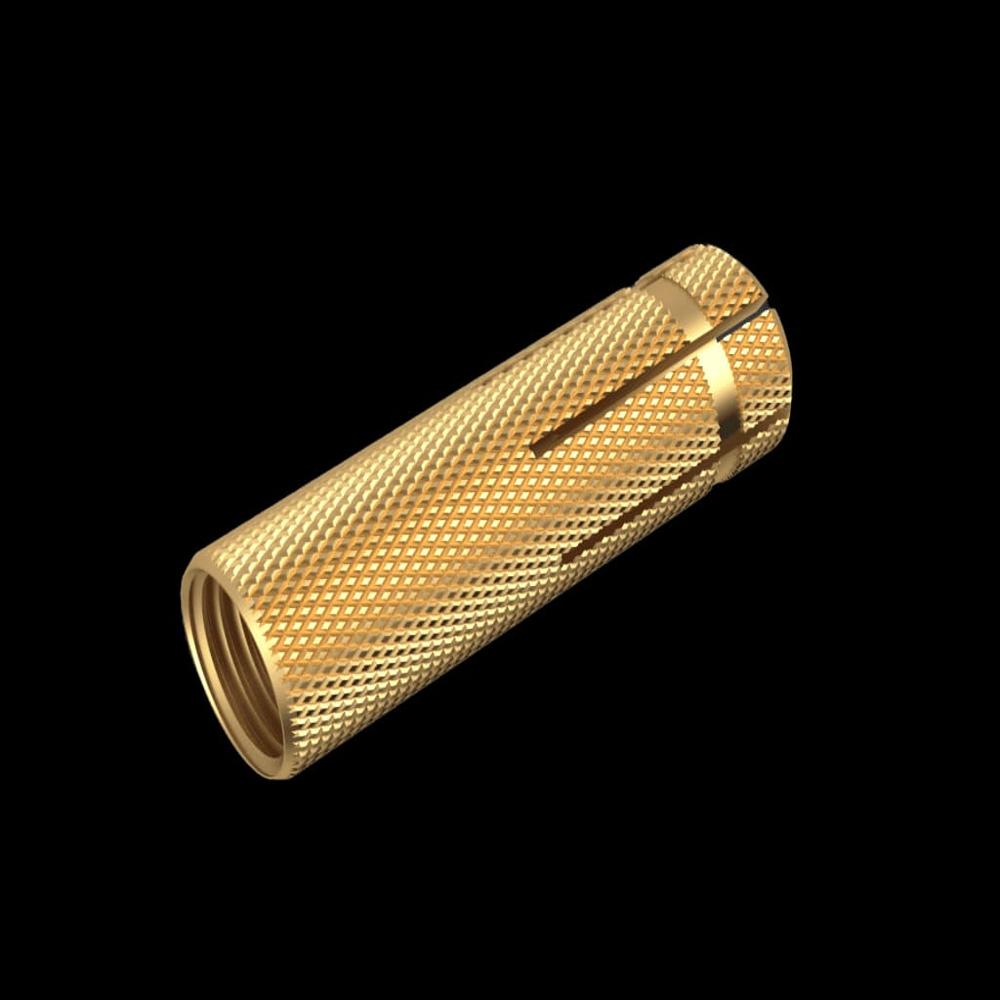

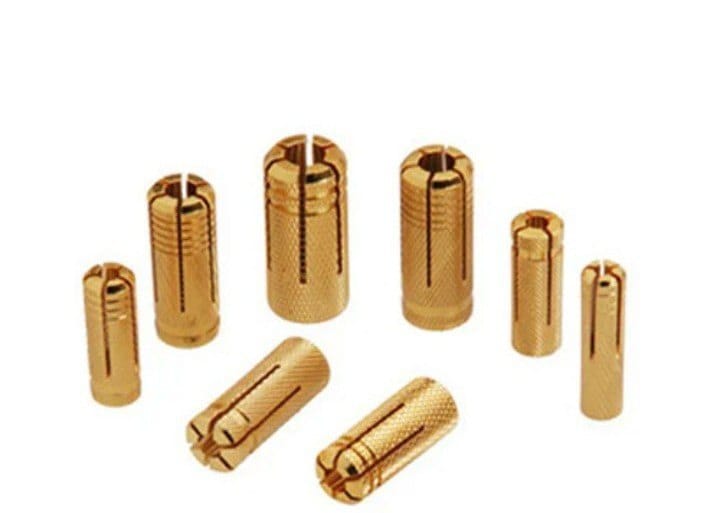

BRASS DROP IN ANCHORS

Product Description

Brass drop-in anchors (also known as brass expansion anchors) are internally threaded sleeves used for permanent anchoring in solid materials like concrete, brick, stone, and wood. They are distinct because they act as a permanent socket; once installed, the bolt can be removed and replaced without disturbing the anchor.

Technical Specifications & Sizing

The sizing for drop-in anchors is generally categorized by the internal thread size ($M4$, $M6$, etc.). However, for cataloging and installation, the external diameter is the most critical dimension for drilling.

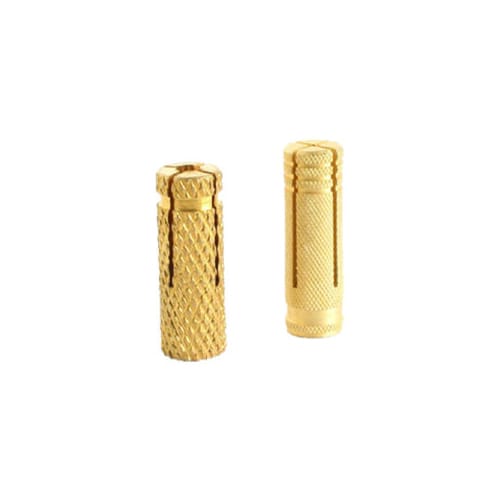

Drop-In vs. Knurled Anchors

While the terms are often used interchangeably in the trade, there is a subtle mechanical difference:

• Drop-In Anchors: Often feature a smooth or partially knurled body with an internal conical plug. They are generally designed for heavier static loads and are frequently used in overhead suspensions.

• Knurled Anchors: Feature a fully textured "diamond" or "straight" knurled surface. This provides immediate friction against the hole walls, making them excellent for materials that might slightly crumble, like old brick.

Key Features for Catalog Listings

• Material: High-grade Free Cutting Brass (IS 319 Type I or BS 2874).

• Corrosion Resistance: Natural brass is inherently rust-proof, but Nickel or Tin plating is recommended for high-salinity or aesthetic applications.

• Temperature Stability: Unlike plastic plugs, these anchors retain their grip in extreme heat, making them ideal for fire-safety installations and heating systems.

• Removability: The fixture can be unbolted and the surface left flush with only the brass socket remaining.
