brass barrel nipple

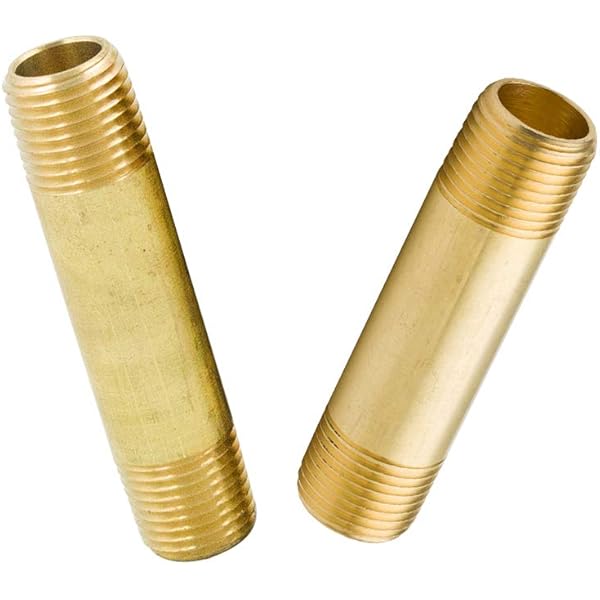

A Brass Barrel Nipple is a fundamental piping component consisting of a short length of cylindrical pipe with external male threads at both ends and a smooth, unthreaded section in the middle. It serves as a critical connector or extender, allowing for the joining of two female-threaded fittings or valves within a fluid distribution network.

Material Engineering and Construction

Machined from high-quality lead-free or industrial-grade brass (such as C36000 or CZ121), the barrel nipple is prized for its exceptional durability and corrosion resistance. Unlike steel nipples, brass will not rust when exposed to moisture, making it the preferred choice for water supply lines, pneumatic systems, and heating installations. The "barrel" designation refers to its straight, uniform body, which provides a robust flow path and sufficient surface area for wrench gripping during installation.

Key Features and Specifications

• Precision Threading: Typically features NPT (National Pipe Thread) or BSPT tapered threads. These tapered threads are designed to create a metal-to-metal interference fit, which, when used with thread sealant or PTFE tape, ensures a leak-proof seal even under high pressure.

• Pressure and Temperature Ratings: Capable of handling significant working pressures (often up to 125200 PSI depending on the pipe schedule) and extreme temperature fluctuations, making it suitable for both hot and cold water applications.

• Flow Efficiency: The smooth internal bore is engineered to minimize friction and turbulence, ensuring that the pressure drop across the fitting remains negligible.

Common Applications

The brass barrel nipple is a "workhorse" fitting used across residential, commercial, and industrial sectors. It is frequently employed to extend pipe headers, connect water meters to service lines, or bridge the gap between a main supply line and a shut-off valve. Because brass is spark-resistant, these nipples are also commonly utilized in fuel and gas lines where safety is a primary concern. Its versatility, ease of installation, and long-term reliability make it an indispensable component in any high-quality plumbing or mechanical assembly.
