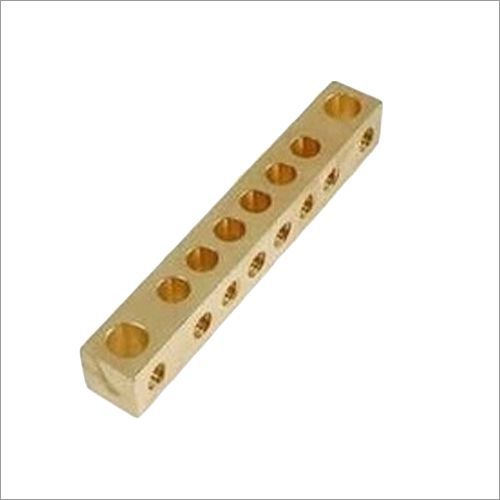

BRASS GROUND BAR
Product Details:
- Product Type Other
- Style Rectangular Bar
- Material Capabilities Other
- Surface Treatment Polished
- CNC Machining Available
- Size Standard sizes or as per customer requirement
- Dimension (L*W*H) As specified by customer or OEM specification
- Click to View more
BRASS GROUND BAR Price And Quantity
- 1000 Kilograms
- 1150.0 INR/Kilograms
BRASS GROUND BAR Product Specifications
- As specified by customer or OEM specification
- Standard sizes or as per customer requirement
- Other
- Rectangular Bar
- BRASS
- Golden Yellow
- Polished
- Available
- Other
- Screw or Bolt Type Terminal Connections
- Screw Mount
- M4, M5 or as per requirements
- -20C to 120C
- Up to 200 Amps (varies as per size and bar design)
- Smooth, Burr-free Edges
- Earthing, Grounding in Electrical Panels
- RoHS, CE Approved
- Customizable (commonly 4 to 24 holes based on requirements)
BRASS GROUND BAR Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Western Europe, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East
- All India
Product Description
A brass ground bar is a fundamental component used to provide a common termination point for grounding conductors within an electrical circuit. While often used interchangeably with "earth bars," ground bars are specifically designed to tie the various grounded components of a system together, ensuring they stay at the same electrical potential and protecting against transient voltages.
Material Excellence
Brass is the material of choice for ground bars due to its superior durability and corrosion resistance compared to steel or aluminum. Most industrial-grade ground bars are machined from Extruded Brass (IS 319 / CZ121). This alloy provides sufficient conductivity for safety grounding while offering the structural integrity required to support heavy-duty lugs and large-diameter cables. In high-salinity or corrosive industrial environments, these bars are often tin-plated to eliminate the risk of oxidation and maintain low contact resistance over decades of service.
Design and Configuration
-
Terminal Density: Ground bars are available in various lengths and hole configurations (e.g., 4-way, 12-way, or 72-way), allowing for organized cable management in crowded enclosures.
-
Direct-to-Enclosure Mounting: Unlike neutral bars, which require insulation, ground bars are often mounted directly to the metal chassis of a panel to ensure the entire enclosure is effectively grounded.
-
Precision Threading: Tapped holes are precision-engineered to accommodate high-torque fastening, ensuring that even under thermal expansion, the connection remains gas-tight.
Key Applications
Brass ground bars are ubiquitous in telecommunications, where they protect sensitive electronics from surge damage, and in residential load centers, where they secure the grounding wires from branch circuits. They are also essential in solar power installations for bonding PV modules and rails. By providing a stable, centralized path for fault currents, the brass ground bar is an indispensable "silent guardian" of electrical safety and equipment longevity.
Flexible Grounding Solutions
Designed for easy integration, our brass ground bars can be tailored to specific needs, including the number of terminal holes and dimensional specifications. This flexibility allows seamless adaptation in various electrical panel installations, providing both safety and convenience.
Premium Construction for Durability
Machined from high-grade brass and finished to a smooth, polished texture, these ground bars ensure longevity and optimal electrical performance. Burr-free edges and precise threading further enhance reliability, making them ideal for both standard and custom earthing requirements.
FAQ's of BRASS GROUND BAR:
Q: How do I select the appropriate number of holes for my Brass Ground Bar?
A: The number of holes can be customized from 4 to 24, typically based on your application's wiring requirements and the number of terminals that need connection. Let your supplier know your specifications or share your panel design for precise recommendations.Q: What is the installation process for a Brass Ground Bar with screw mount?
A: The bar is designed for easy screw mounting. Simply align the mounting holes with the panel, insert screws or bolts into the pre-threaded holes (M4, M5, or as specified), and secure it tightly. Ensure all connections are clean and firm for optimal grounding performance.Q: When should a Brass Ground Bar be used in an electrical panel?
A: Use a brass ground bar whenever a reliable, durable, and high-current capacity earthing solution is needed within electrical panels. It is particularly beneficial in environments requiring RoHS and CE compliance, or where custom configurations are essential.Q: Where can I specify custom sizes or features for my Brass Ground Bar?
A: You can provide your required dimensions (L*W*H), thread size, and number of holes directly to the manufacturer, supplier, or exporter during the order process. CNC machining is available for specialized requests.Q: What are the benefits of choosing a polished, burr-free Brass Ground Bar?
A: A polished surface with burr-free edges ensures safety during installation, reduces risk of accidental injury, and promotes optimal conductivity by minimizing potential points of resistance or corrosion.Q: How does the bar's current carrying capacity vary?
A: The ground bar's maximum current rating (up to 200 amps) is determined by its size and specific design. Larger or thicker bars generally accommodate higher currents, while custom options may be designed to suit your unique application needs.
