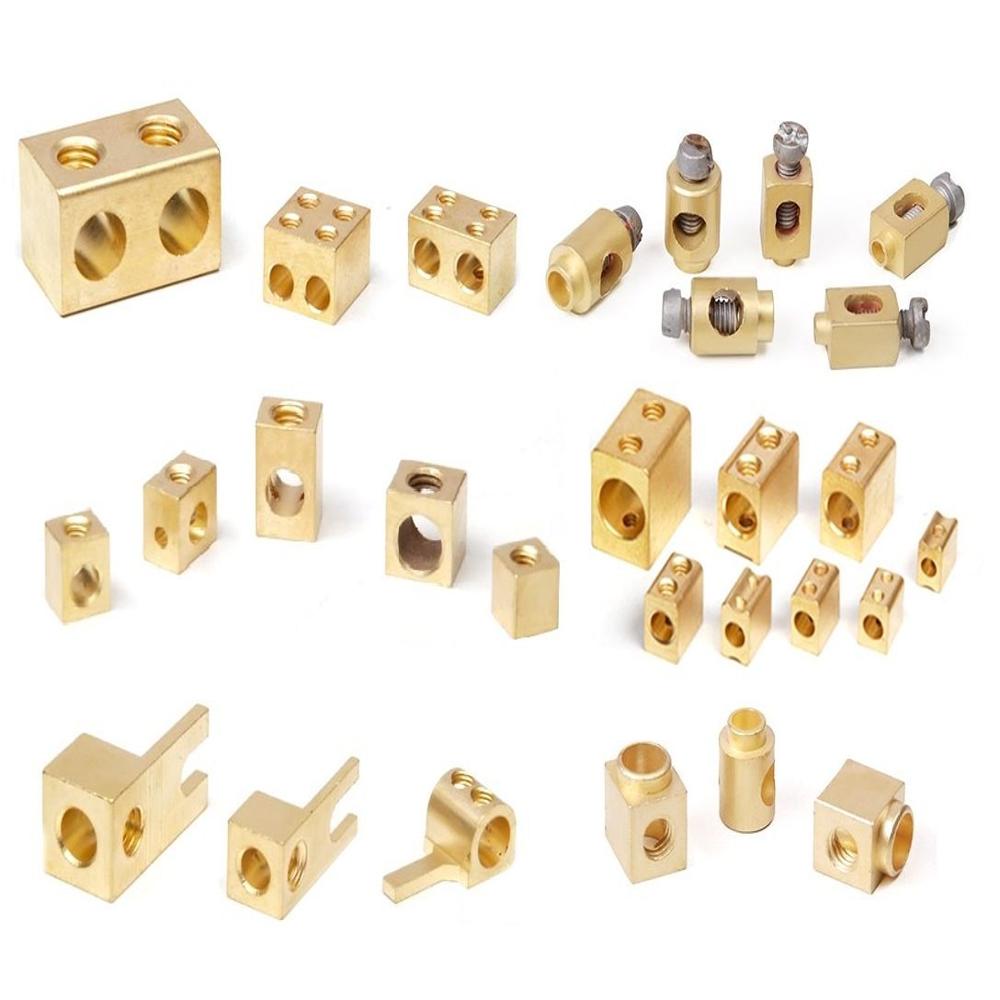

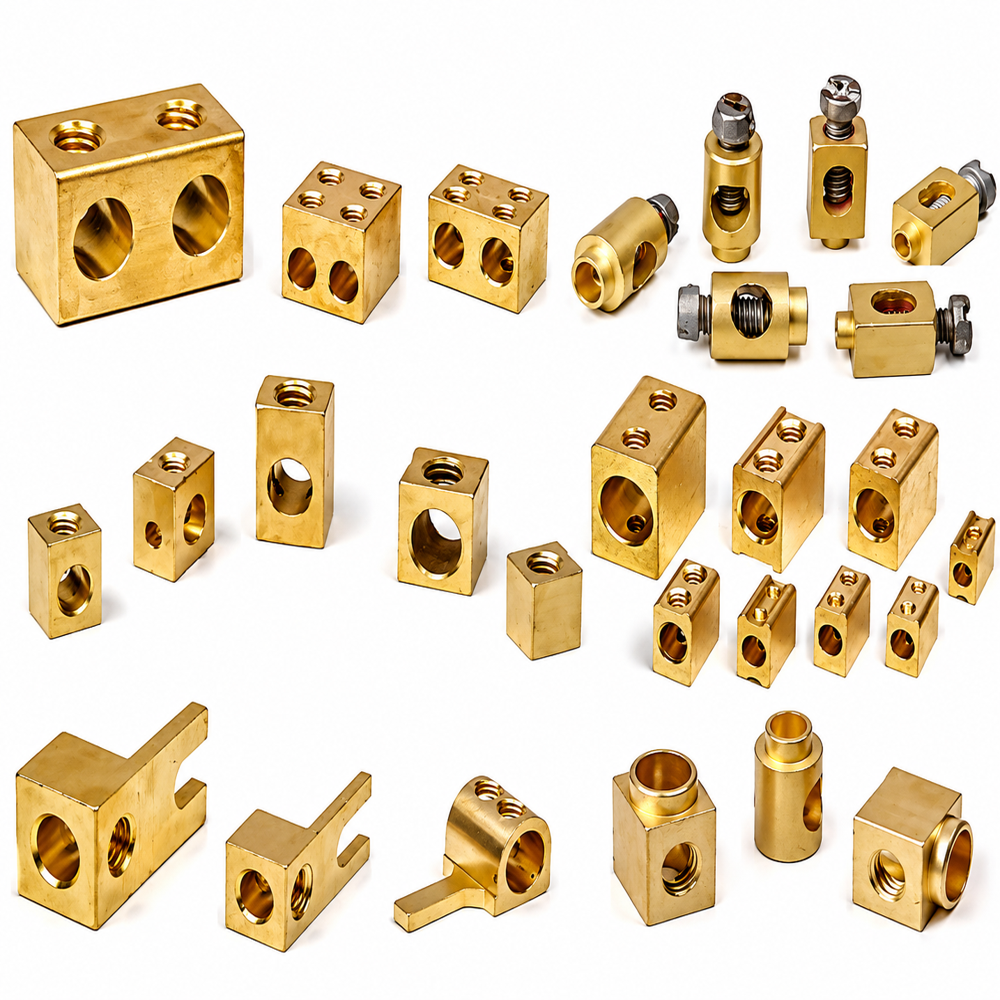

Brass Earthing Connector
Product Details:
- Product Type Other
- Style Industrial
- Material Capabilities Brass
- Surface Treatment Nickel Plated, Natural Brass Finish
- CNC Machining Yes
- Size MULTI
- Dimension (L*W*H) As per requirement
- Click to View more
Brass Earthing Connector Price And Quantity
- 1000 Kilograms
- 1100.0 INR/Kilograms
Brass Earthing Connector Product Specifications
- Nickel Plated, Natural Brass Finish
- Other
- Industrial
- Brass
- Yes
- As per requirement
- BRASS
- MULTI
- Brass Yellow
- Direct Clamping
- 1000 pieces
- Earthing/Grounding Systems
- >350 MPa
- Metric/Imperial
- Up to 250A
- -20C to +120C
- IS/IEC 62305, BS 7430
- High
- Clamp Type
Brass Earthing Connector Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
A brass earthing connector is a specialized mechanical fitting used to establish a secure, low-resistance path between an electrical system and the ground (earth). These connectors are vital for safety, ensuring that fault currents are diverted away from equipment and personnel, thereby preventing electric shocks, fires, and hardware damage.
Material Integrity and Performance
Earthing connectors are primarily forged or machined from high-tensile brass alloys. Brass is the preferred material for earthing because:
-
Corrosion Resistance: Earth connections are often located in damp basements or exposed to soil. Brass resists the corrosive effects of moisture and underground minerals better than many other conductive metals.
-
Thermal Conductivity: During a short circuit, an earthing connector must handle a sudden surge of high-temperature energy without melting or deforming.
-
Mechanical Grip: Brass provides the structural "bite" necessary to maintain a permanent connection on copper or galvanized steel grounding rods.
Common Types and Designs
Earthing connectors come in several specialized forms to suit different installation needs:
-
Rod-to-Tape Clamps: Used to connect flat copper earth tapes to circular grounding electrodes.
-
U-Bolt Connectors: Designed to secure cables or wires to vertical earth rods, offering a large surface area for contact.
-
Split Bolt Connectors: Ideal for joining two or more earthing cables in a parallel or "tap-off" configuration.
-
Earthing Bridges: Used in large-scale installations to link multiple grounding points into a unified grid.
Professional Application
These components are essential in:
-
Lightning Protection Systems: Discharging atmospheric electricity safely into the ground.
-
Substation Grounding: Managing high-voltage return paths in utility grids.
-
Industrial Machinery: Grounding the chassis of heavy equipment to eliminate static buildup and fault risks.
-
Residential Safety: Connecting the main neutral-earth bond in consumer units.
Engineered for Superior Safety and Performance
Built to withstand demanding industrial environments, the Brass Earthing Connector offers outstanding durability and electrical conductivity critical for reliable earthing and grounding systems. Combined with high corrosion resistance and a robust brass composition, this connector meets international standards, promising long-term operational security and low maintenance.
Versatile Mounting & Custom Dimensions
This connector supports both Metric and Imperial thread types, ensuring compatibility with a wide variety of installations. Direct clamping simplifies the mounting process, and CNC machining allows for custom dimensioning based on your unique requirements. Choose between nickel-plated or natural brass finishes for optimal performance and aesthetics.
FAQ's of Brass Earthing Connector:
Q: How is the Brass Earthing Connector installed in grounding systems?
A: The Brass Earthing Connector is installed using a clamp-type connection, allowing for secure and direct mounting onto grounding rods or conductors, ensuring a reliable electrical path for earthing systems.Q: What are the main benefits of using a high-tensile brass earthing connector?
A: High-tensile brass offers excellent mechanical strength (>350 MPa) and superior corrosion resistance, ensuring the connector delivers long-lasting performance even in challenging industrial conditions.Q: When should I choose the Metric or Imperial thread type for my application?
A: Select the thread type based on the prevailing standards and existing hardware at your installation site. Metric threads are common in most international applications, while Imperial threads are often used in regions with British standards.Q: Where can this earthing connector be applied effectively?
A: The connector is ideal for industrial earthing and grounding systems, particularly in electrical substations, power distribution panels, and any setup requiring reliable current dissipation and equipment protection.Q: What standards does the Brass Earthing Connector adhere to?
A: This connector conforms to IS/IEC 62305 and BS 7430 standards for safety and performance in earthing and lightning protection systems.Q: What is the minimum order quantity, and can dimensions be customized?
A: The minimum order quantity is 1,000 pieces. Yes, dimensions-length, width, and height-can be tailored precisely to your project's requirements, thanks to CNC machining capabilities.Q: How does the surface treatment contribute to the connector's durability?
A: The connector comes with either nickel plating or a natural brass finish. Nickel plating enhances corrosion resistance and surface hardness, while the natural brass finish maintains high conductivity and authentic industrial aesthetics.
