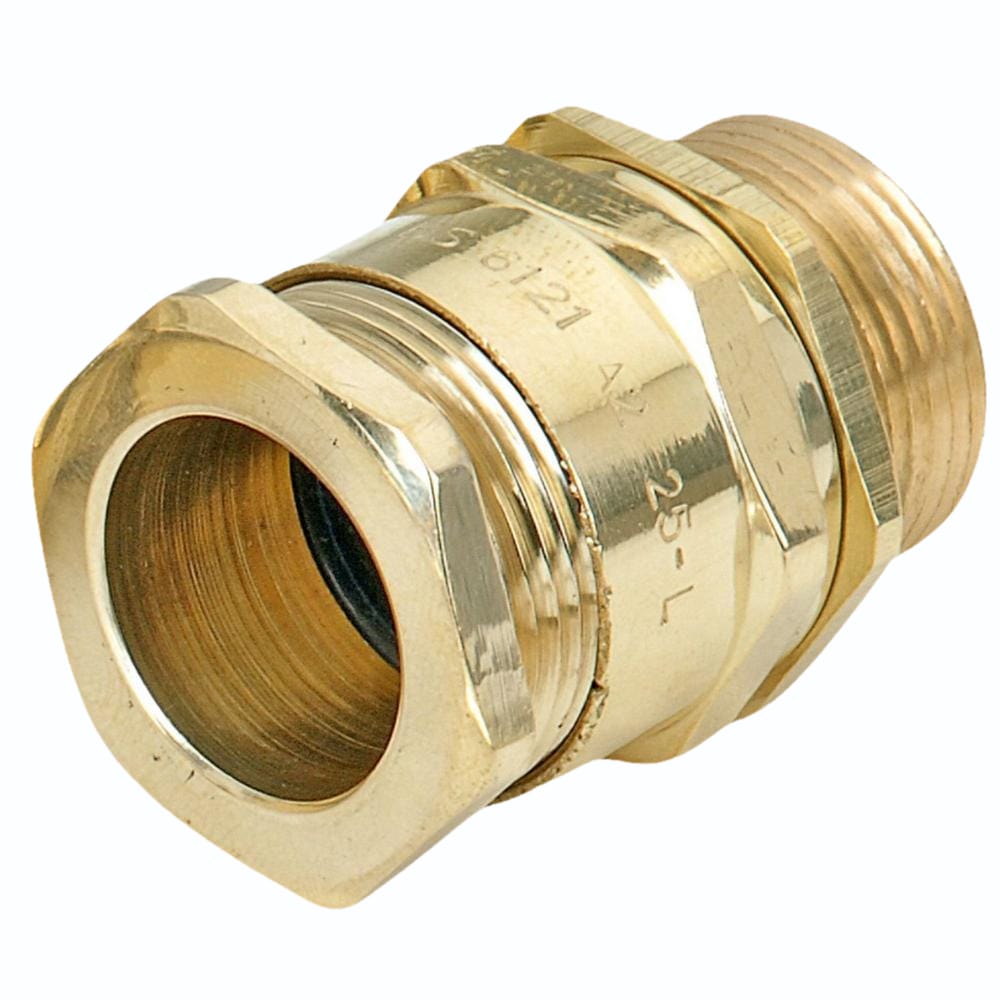

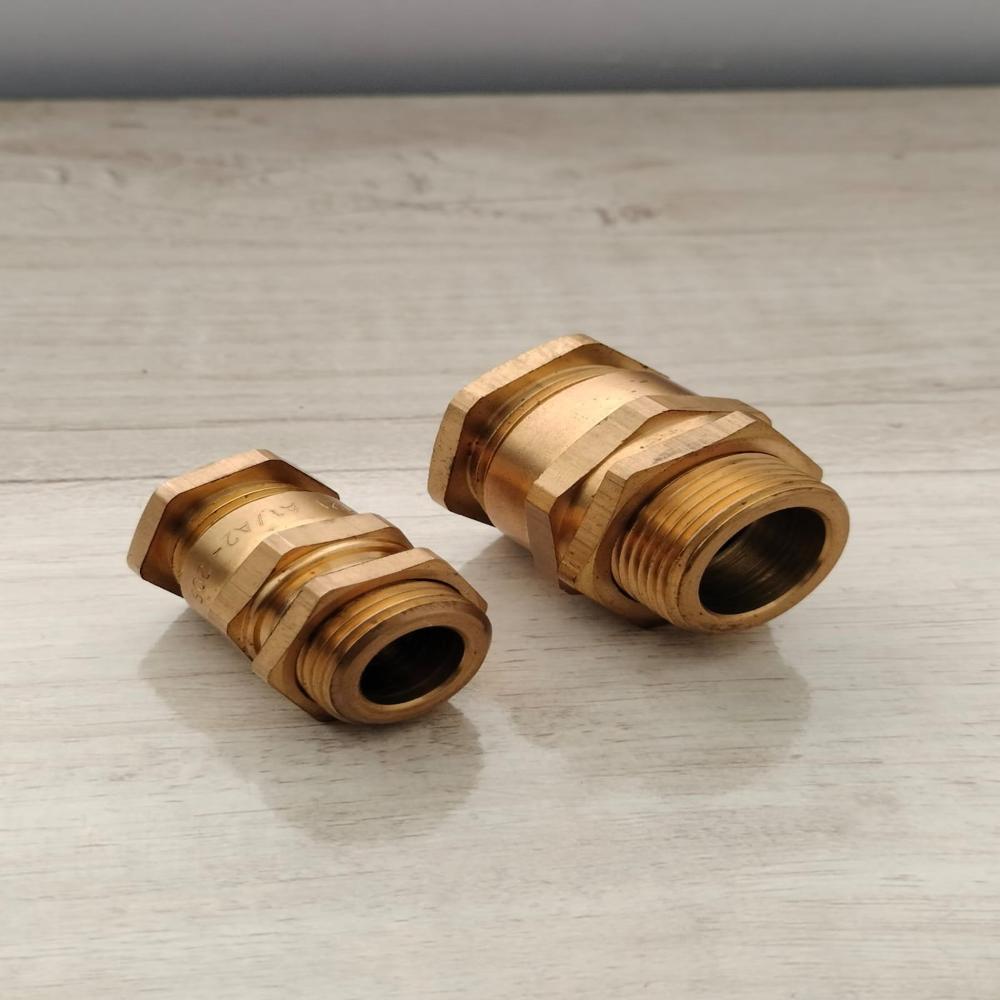

A1/A2 CABLE GLAND
Product Details:
- Locking Type Threaded with sealing ring
- Tensile Strength High mechanical strength
- Weight Varies with size
- Install Type Screw/Threaded
- Usage & Applications Electrical connections, power distribution, cable management
- Features STRONG QUALITY
- Armored Material Brass / Nickel or Chrome Plated
- Click to View more
A1/A2 CABLE GLAND Price And Quantity
- 1150.0 INR/Piece
- 1000 Piece
A1/A2 CABLE GLAND Product Specifications
- Varies with size
- High mechanical strength
- Brass, Nickel Plated Brass
- Screw/Threaded
- Electrical connections, power distribution, cable management
- STRONG QUALITY
- Metallic Silver
- A1/A2 Cable Gland
- Threaded with sealing ring
- Available in 12mm to 90mm (Metric) and various imperial sizes
- N/A (applies to cable, not gland)
- -20C to +80C
- Silver/Metallic
- -20C to +80C
- N/A (applies to cable, not gland)
- Available as per cable diameter and gland size
- Thermoplastic Polyamide / Polyethylene insert
- Customizable as per requirement
- Suitable for low and medium voltage cable terminations
- Brass / Nickel or Chrome Plated
- -20C to +80C
- Thermoplastic Polyamide
- Termination of unarmoured and armoured cables in hazardous and non-hazardous areas
- Unarmoured or light armoured cable termination
- Varies with gland size
- Metric, Imperial (BS, PG, NPT, ET)
- Electroplated for corrosion resistance
- Compression seal with sealing ring
- Ensures environmental sealing and mechanical retention
- As per manufacturer policy
- Locknut, Earth Tag, Shroud (upon request)
- BS 6121, EN 50262, IEC 62444
- Individually packed or bulk as per order
- IP66 / IP67
A1/A2 CABLE GLAND Trade Information
- Others
- 5000 Piece Per Month
- 2 Week
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East
- All India
Product Description
The A1/A2 Cable Gland is a premium industrial-grade brass fitting specifically engineered for unarmored, plastic, or rubber-sheathed cables. These glands are a staple in both indoor and outdoor electrical installations, providing a high-performance solution for securing cable entries into enclosures, bulkheads, and control panels.
Key Technical Specifications
-
A1 Gland: Designed primarily for indoor applications, focusing on mechanical cable retention and basic environmental sealing.
-
A2 Gland: Features a high-grade displacement seal that offers IP66/IP68 ingress protection, making it suitable for outdoor environments where resistance to rain, dust, and moisture is critical.
-
Material: Typically manufactured from high-tensile Nickel-Plated Brass or Stainless Steel to ensure corrosion resistance and long-term durability.
-
Temperature Range: Engineered to perform reliably in extreme conditions, generally ranging from -20C to +80C.
Performance Benefits
These glands provide exceptional strain relief, protecting internal terminations from being pulled or twisted. The "A2" variants unique outer seal grips the cable sheath firmly, ensuring a watertight connection that maintains the integrity of the electrical system.
Commonly used in the oil and gas, power generation, and automation industries, A1/A2 glands are compliant with international standards like BS 6121. They are an essential choice for contractors looking for a robust, easy-to-install, and cost-effective cable management solution that guarantees safety and professional finishing.
Exceptional Protection and Sealing
The A1/A2 Cable Gland is built to ensure exceptional environmental sealing and mechanical retention for both unarmoured and light armoured cables. With IP66 and IP67 ingress ratings, these glands safeguard against dust and water ingress, enhancing the reliability of electrical systems in demanding indoor and outdoor environments.
Robust Construction and Versatile Sizing
Manufactured with high-quality brass or nickel plated brass, the glands offer robust corrosion resistance through an electroplated finish. With sizes ranging from 12mm to 90mm (metric), and various imperial options, they accommodate diverse cable requirements and support low and medium voltage applications.
Effortless Installation and Customization
Designed for threaded screw installation, these cable glands come with optional accessories like locknuts, earth tags, and shrouds. Length and packing options are customizable as per order, ensuring flexibility for different project needs and site conditions.
FAQ's of A1/A2 CABLE GLAND:
Q: How do I determine the correct size of A1/A2 cable gland for my cable?
A: Select the gland size based on your cable's outer diameter and the required thread type (metric or imperial). The A1/A2 Cable Gland is available in sizes from 12mm to 90mm and in various imperial threads such as BS, PG, NPT, and ET to suit most unarmoured or light armoured cables.Q: What are the main benefits of using an A1/A2 cable gland with IP66/IP67 protection?
A: These cable glands provide excellent dust and water ingress resistance, ensuring long-term cable integrity in challenging environments. Their compression sealing with a sealing ring supports robust mechanical retention and environmental protection, making them ideal for both indoor and outdoor installations.Q: When is the installation of an A1/A2 cable gland recommended?
A: Install A1/A2 cable glands whenever you require secure termination of low or medium voltage unarmoured or light armoured cables, especially in applications exposed to moisture, dust, or mechanical stress, such as power distribution and electrical connections.Q: Where can these cable glands be used effectively?
A: A1/A2 cable glands are suitable for use in industrial, commercial, and hazardous locations, including electrical panels, junction boxes, and outdoor equipment, wherever reliable ingress protection and cable retention are necessary.Q: What is the installation process for the A1/A2 cable gland?
A: The gland is installed using a threaded screw mechanism. Insert the cable through the gland and compression seal, then tighten the gland to form a secure, watertight seal. Optional accessories like locknuts, earth tags, and shrouds can be incorporated based on your installation needs.Q: What advantages do the provided installation accessories offer?
A: Accessories such as locknuts, earth tags, and shrouds enhance safe grounding, sealing, and cable protection. They help comply with installation standards, improve mechanical stability, and extend the longevity of the cable assembly.Q: Are the A1/A2 cable glands customizable for project requirements?
A: Yes, these glands can be ordered with custom lengths, packing preferences (individual or bulk), and accessory options based on your specific project or site requirements, as per the manufacturer's policy.
