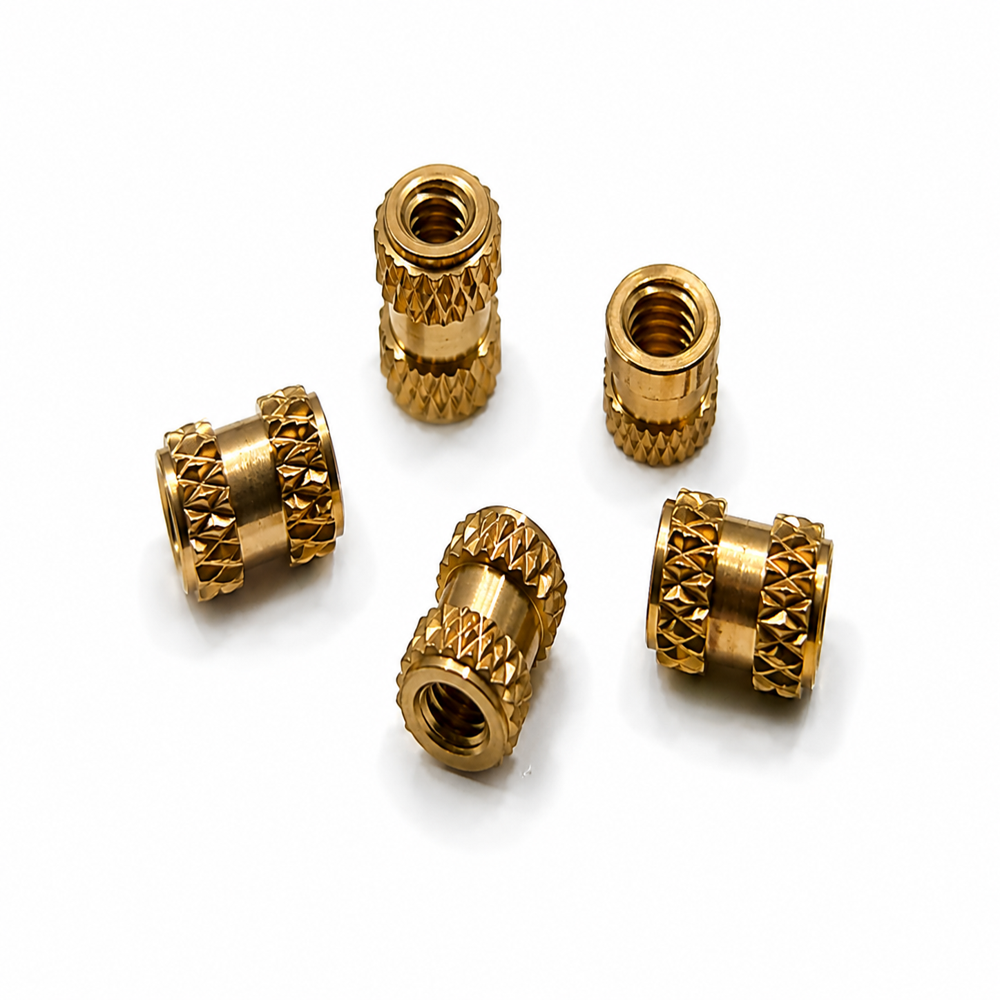

Brass Metric Insert
Product Details:
- Size MULTI
- Product Type Brass Metric Insert
- Material BRASS
- Type Brass Metric Insert
- CNC Machining Yes
- Diameter M3 to M12 (custom sizes available)
- Tolerance 0.02 mm
- Click to View more
Brass Metric Insert Price And Quantity
- 1000 Kilograms
- 1100.0 INR/Kilograms
Brass Metric Insert Product Specifications
- M3 to M12 (custom sizes available)
- Brass Metric Insert
- Yes
- Other
- BRASS
- Brass Metric Insert
- MULTI
- 0.02 mm
- Other
- High
- Plastic bag, box, or as required
- High grade brass
- Press Fit, Ultrasonic, Heat Fit
- Metric
- Plastic Mouldings, Thermoplastics, Automotive, Electrical
- Brass 80-100 HV
- Natural, Nickel Plated, Chrome Plated, or custom finishes
Brass Metric Insert Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
Brass metric inserts are the global standard for providing precision, wear-resistant threads in plastic, wood, and composite materials. While Unified threads (UNC/UNF) are common in North America, metric threads (ISO) are the universal language of modern manufacturing, used in everything from consumer electronics to heavy industrial machinery. These inserts allow for a standardized, high-performance interface that facilitates international trade and cross-border engineering.
Metric Standardization and Precision
The primary advantage of the metric system in fastening is its logical progression of sizes (e.g., M2, M3, M4, M8). Brass metric inserts are typically machined to 6H tolerance, ensuring a perfect fit with standard metric bolts. This precision is essential in high-tech industries where:
-
M1.4 to M3 inserts are used in micro-electronics and mobile devices.
-
M4 to M6 inserts are standard for automotive interiors and appliance housings.
-
M8 and larger inserts provide structural mounting points in heavy-duty equipment.
Why Brass is the Ideal Medium
Most metric inserts are manufactured from C36000 (Free-Cutting Brass) or Lead-Free alternatives like C27450. Brass offers superior thermal conductivity, which is vital for heat-staking or ultrasonic installation into thermoplastics. It allows the insert to heat up rapidly and evenly, ensuring the plastic flows smoothly into the knurls for a secure mechanical lock without the risk of the material becoming brittle or scorched.
Versatile Installation and Design
Metric inserts are available in a wide array of configurations to suit different production needs:
-
Headed/Flanged: Provides a larger load-bearing surface and acts as an electrical contact.
-
Symmetrical: Can be fed into automated assembly machines from either end, increasing production speed.
-
Knurling Variations: Straight, diamond, or opposed-helical patterns are used to maximize torque-out resistance depending on the hardness of the host material.
Global Applications
Because they follow ISO standards, brass metric inserts are found in:
-
Global Electronics: Laptops, servers, and telecommunications hardware.
-
Automotive Systems: International vehicle platforms where parts are sourced globally.
-
Medical Equipment: High-precision diagnostic tools and laboratory instruments.
Versatile Installation Methods
Our Brass Metric Inserts are designed for flexibility, supporting press fit, ultrasonic, and heat fit installations. This versatility allows for secure anchoring in a wide array of plastic and thermoplastic materials, ensuring consistency and strength for your applications.
Wide Range of Customization
Available in natural, nickel-plated, chrome-plated, and custom finishes, these inserts can be tailored to match both aesthetic and functional requirements. Precision machining accommodates diameters from M3 to M12, with options for special sizing to fit unique designs.
FAQ's of Brass Metric Insert:
Q: How are Brass Metric Inserts commonly installed?
A: Brass Metric Inserts can be installed using press fit, ultrasonic, or heat fit methods, making them adaptable to various production environments and material specifications.Q: What applications are these brass inserts best suited for?
A: These inserts excel in plastic mouldings and thermoplastics across automotive, electrical, and industrial applications where durable and reliable threading is essential.Q: What benefits does brass material provide for these inserts?
A: Brass offers a combination of high hardness (80-100 HV), superior corrosion resistance, and long-lasting durability, making it ideal for demanding environments.Q: What finishes are available for Brass Metric Inserts?
A: Standard finishes include natural brass, nickel plating, and chrome plating. Custom finishes can also be arranged to meet specific project requirements.Q: Where are these inserts manufactured and exported?
A: As a manufacturer, supplier, and exporter, we provide Brass Metric Inserts that meet international quality standards, supplying them to customers worldwide.Q: What is the process for ordering custom-sized brass metric inserts?
A: Custom orders can be specified by providing your required diameter, finish, and tolerance. Our CNC machining capabilities accommodate diameters from M3 to M12 or other dimensions as needed.Q: What packaging options are offered for Brass Metric Inserts?
A: We offer standard packaging in plastic bags or boxes, and also provide customized packaging solutions based on client preferences to ensure safe and efficient delivery.
