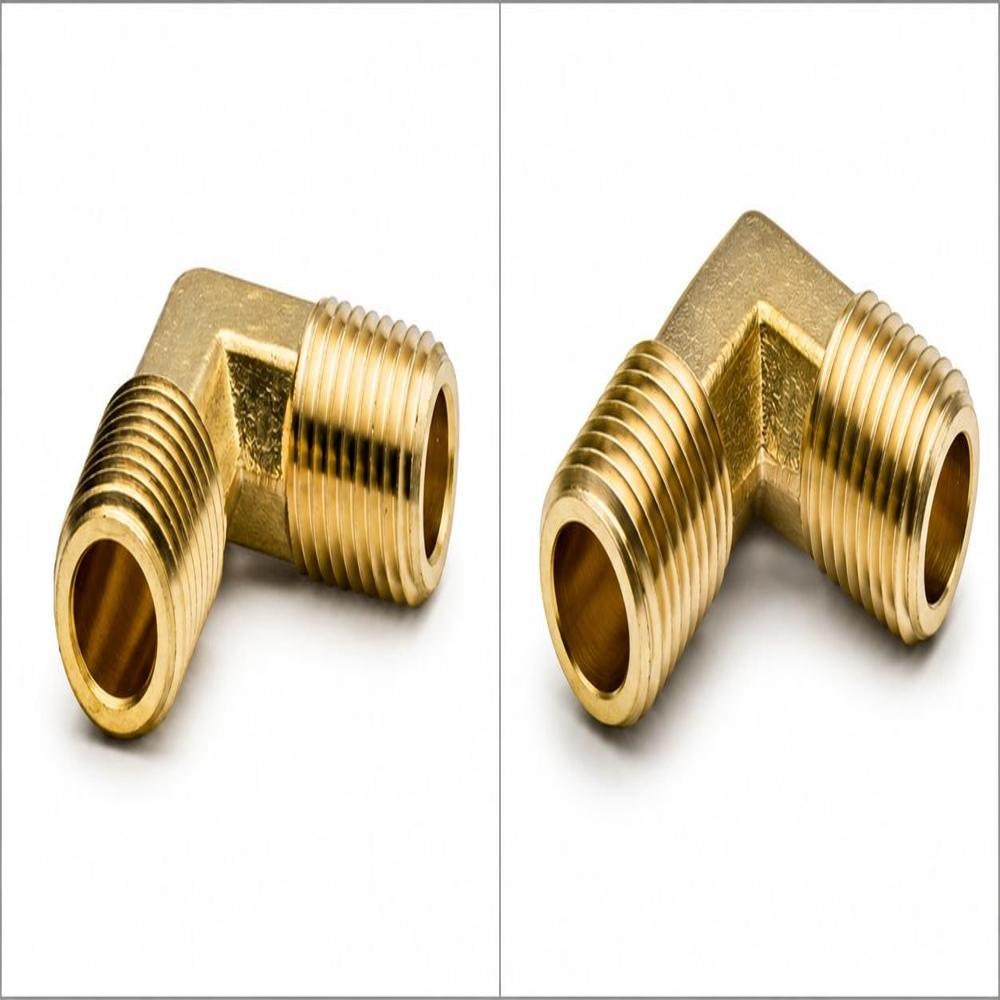

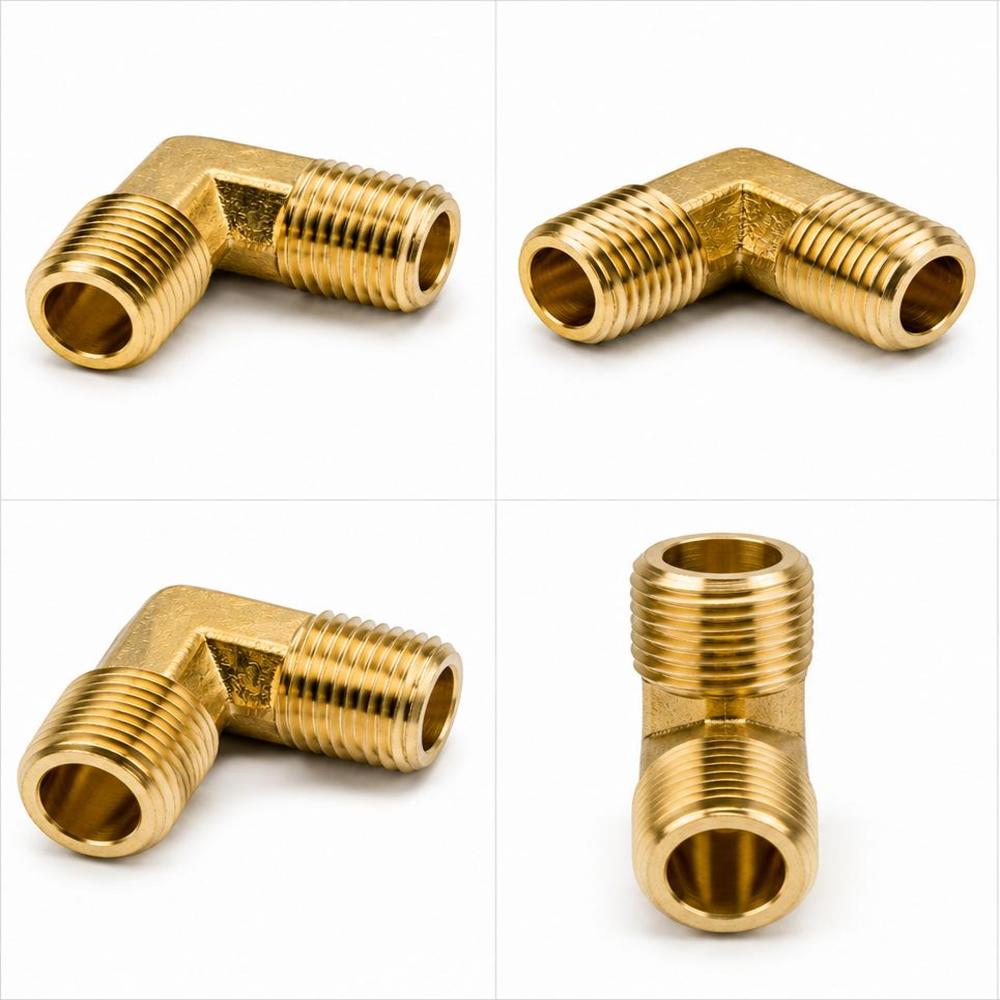

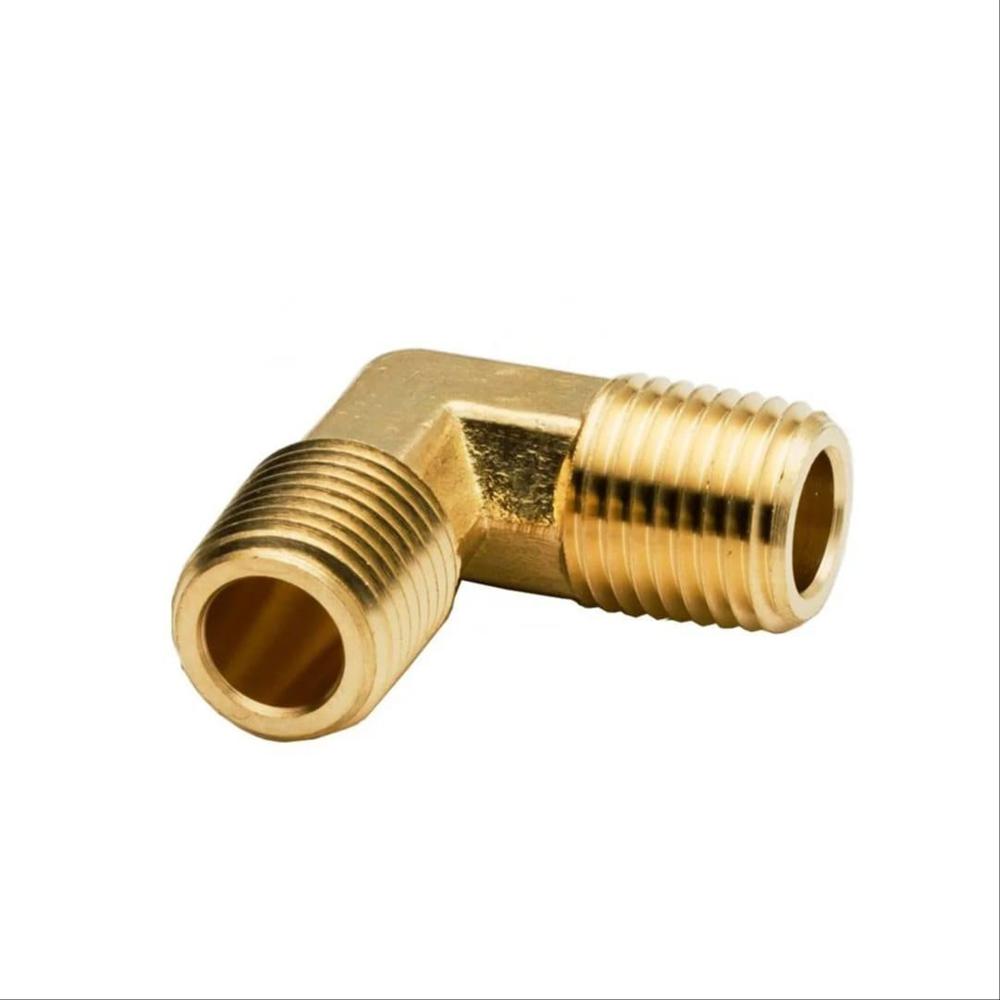

Brass Refrigeration Elbow
Product Details:
- Material BRASS
- Product Type Brass Refrigeration Elbow
- Type Refrigeration Elbow
- Color Golden Yellow
- Size Customized / Standard Sizes Available
- Diameter 1/4 inch to 1 inch (or as required)
- Length Standard Elbow Length
- Click to View more
Brass Refrigeration Elbow Price And Quantity
- 1250.0 INR/Kilograms
- 1000 Kilograms
Brass Refrigeration Elbow Product Specifications
- Elbow
- Polished
- BRASS
- 1/4 inch to 1 inch (or as required)
- Brass Refrigeration Elbow
- Customized / Standard Sizes Available
- Standard Elbow Length
- Golden Yellow
- Refrigeration Elbow
- Yes
- Threaded / Compression
- Up to 600 PSI
- -40C to +150C
- Easy to Install and Remove
- Refrigeration Line Joints
- 90 Degree
- Box / Poly Bag
- ASTM / DIN / ISO Compliant
Brass Refrigeration Elbow Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
The Brass Refrigeration Elbow is a vital directional fitting designed to change the path of refrigerant flow within a cooling or air conditioning system. In the complex world of HVAC/R piping, where space is often limited and components are densely packed, the elbow allows for seamless 90-degree or 45-degree turns without compromising the structural integrity or flow efficiency of the refrigerant line.
Material Strength and Thermal Stability
These elbows are typically manufactured from forged brass or high-grade extruded brass bar stock. Brass is selected for its unique ability to remain ductile at extremely low temperaturespreventing brittleness in suction lineswhile maintaining strength in high-pressure discharge lines. Its natural resistance to corrosion ensures that the fitting will not degrade when exposed to the moisture, oils, and synthetic refrigerants commonly found in closed-loop systems.
Design and Connection Types
-
Flare vs. Solder: Refrigeration elbows are commonly available in SAE 45 Flare configurations for mechanical connections, which allow for easy disassembly during maintenance. They also come in ODS (O.D. Solder) versions, which are designed to be brazed directly onto copper tubing for a permanent, leak-proof joint.
-
Internal Geometry: The internal radius of a refrigeration elbow is precision-machined to be smooth. This "long-radius" design is crucial as it reduces turbulence and friction loss, ensuring that the pressure drop across the fitting is kept to an absolute minimum.
-
High-Pressure Rating: Specifically engineered to handle the demanding pressures of modern refrigerants, these fittings are often tested to exceed standard operating pressures, providing a significant safety margin.
Professional Applications
The brass refrigeration elbow is a staple in both residential split systems and large-scale commercial chillers. It is frequently used to navigate around compressors, connect to evaporator coils, or facilitate tight bends within a condenser unit. By providing a robust and reliable means of redirecting flow, the brass elbow ensures that HVAC/R installations are both compact and highly efficient, maintaining a gas-tight seal throughout the lifespan of the equipment.
Premium Material for Enhanced Longevity
Manufactured from high-quality brass, this refrigeration elbow offers superior corrosion resistance under extreme temperatures and pressures. Its robust construction ensures a long service life, even in harsh refrigeration environments. The polished finish not only enhances its appearance but also provides additional protection against wear.
Versatile Applications and Standards Compliance
Designed to meet stringent ASTM, DIN, and ISO standards, this brass elbow is suitable for a variety of refrigeration systems. Its compatibility with both threaded and compression connections broadens its application scope. Standard and customized sizes make it adaptable for an array of refrigeration line setups.
FAQ's of Brass Refrigeration Elbow:
Q: How do you install a brass refrigeration elbow in a refrigeration line joint?
A: To install the brass refrigeration elbow, first select the appropriate size for your refrigeration line. Ensure all surfaces are clean and dry, then connect the elbow using either threaded or compression fittings, tightening securely to prevent leaks. Its design enables easy installation and removal without specialized tools.Q: What are the benefits of using a brass refrigeration elbow over other materials?
A: Brass offers excellent corrosion resistance, durability, and thermal conductivity. These qualities, along with compliance to ASTM, DIN, and ISO standards, ensure reliable performance within a -40C to +150C temperature range and up to 600 PSI, making it ideal for demanding refrigeration applications.Q: Where can the brass refrigeration elbow be used?
A: This elbow is primarily used in refrigeration line joints across commercial and industrial refrigeration systems. Its robust properties and pressure rating make it suitable for cold storage, cooling units, and HVAC applications requiring secure and efficient piping connections.Q: When should I consider replacing my existing refrigeration elbow with this brass version?
A: Consider replacing your current elbow if you notice signs of corrosion, leaks, or reduced performance, or if your system requires compliance with updated industry standards. Upgrading to this brass elbow can enhance reliability, safety, and efficiency in your refrigeration setup.Q: What sizes and packaging options are available for this refrigeration elbow?
A: The brass refrigeration elbow is available in standard and customized sizes ranging from 1/4 inch to 1 inch in diameter. Packaging options include secure boxes or poly bags, ensuring the product reaches you in pristine condition.Q: How does the corrosion resistance feature benefit prolonged usage?
A: The corrosion-resistant brass ensures long-term reliability by withstanding harsh operating conditions and exposure to moisture, minimizing the risk of leaks and system failure while reducing maintenance needs over the product's lifespan.
