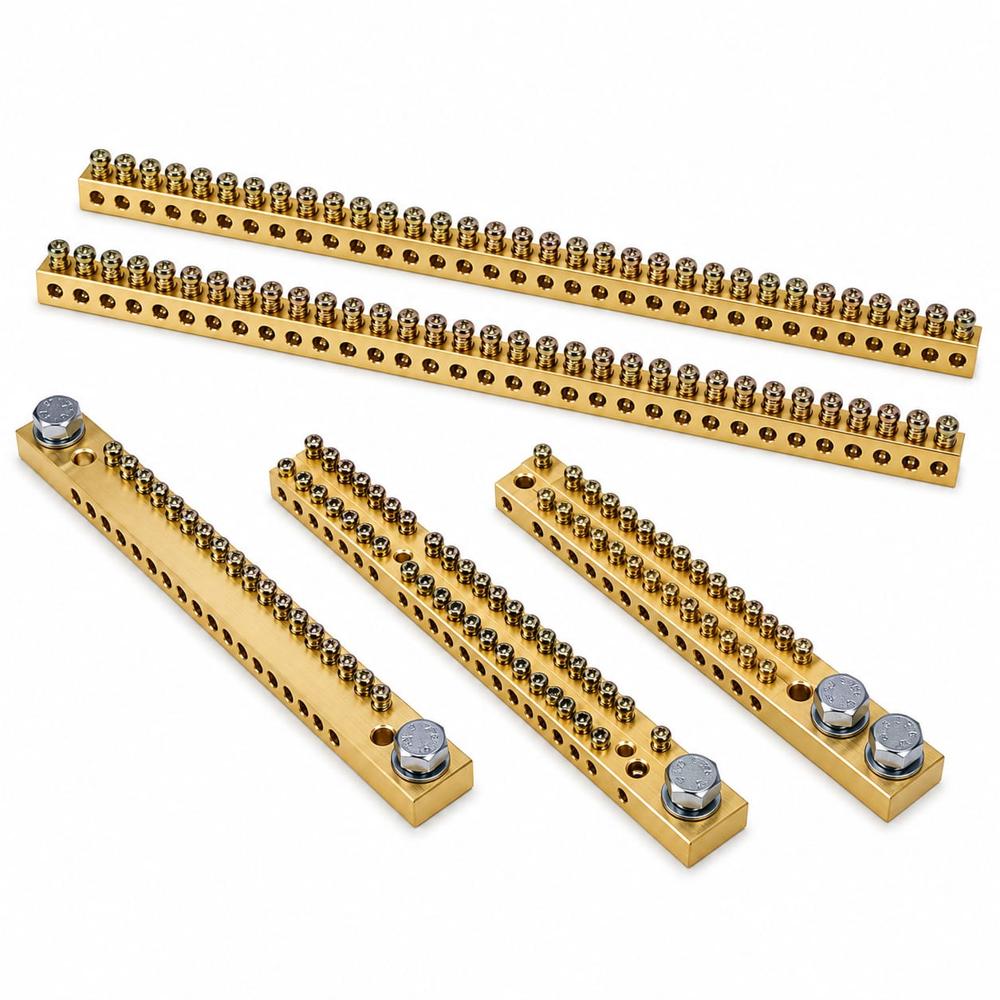

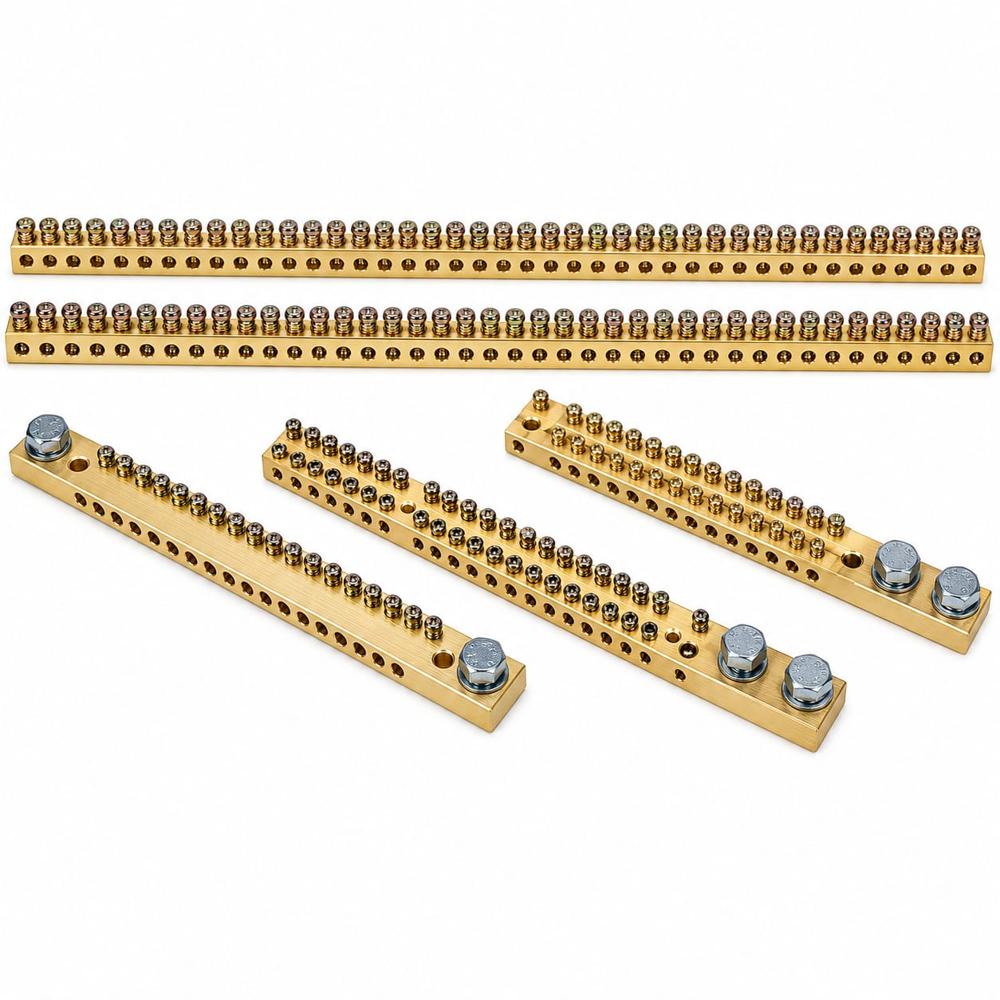

BRASS DOUBLE POLE NEUTRAL BAR

A Brass Double Pole Neutral Bar is a specialized electrical terminal designed to manage two distinct neutral circuits within a single distribution assembly. Unlike single pole versions, these bars are often utilized in systems where isolation between different neutral groups is requiredsuch as in dual-RCD consumer units or split-load distribution boards.

Material Composition and Durability

To ensure maximum conductivity and mechanical longevity, these bars are manufactured from premium extrusions of Free Cutting Brass (Grade IS 319 or BS 249). This material selection provides the ideal balance of electrical efficiency and structural integrity. For industrial applications or coastal environments, the bars are frequently Electro-Nickel or Tin-plated. This protective coating acts as a barrier against atmospheric oxidation, preventing the buildup of high-resistance surface films that can lead to overheating.

Structural Design Features

The "Double Pole" configuration typically refers to two separate brass sections mounted on a single insulated base, or a singular bar designed to handle dual-phase neutral returns.

• Dual-Section Isolation: Often mounted on a high-dielectric Nylon 66 or Phenolic base, providing electrical clearance between the two poles to prevent cross-talk or short circuits.

• Precision Termination: Features a series of tapped holes with "tunnel" entries. These are fitted with high-torque brass or steel screws that provide a high-pressure contact area for the conductor.

• Modular Lengths: Available in standard sizes ranging from 4+4 ways up to 60+60 ways, allowing for scalable electrical designs in complex panels.

Primary Applications

These components are essential in sophisticated power management setups:

1. Split-Load Consumer Units: Allowing separate neutral paths for different banks of miniature circuit breakers (MCBs).

2. Industrial Switchgear: Managing neutral returns in heavy-duty 2-phase or 3-phase systems where circuit segregation is mandatory.

3. Solar & Inverter Panels: Providing a centralized point for AC and DC neutral/grounding isolation.

By providing a robust and organized termination point, the Brass Double Pole Neutral Bar ensures that even high-density electrical panels remain safe, serviceable, and compliant with modern wiring regulations.
