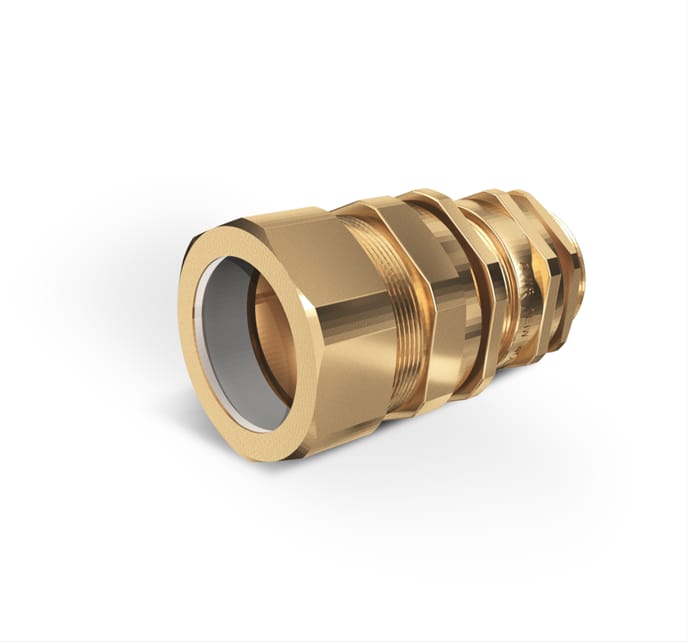

E1W CABLE GLAND
1150.0 INR/Piece
Product Details:
- Install Type Panel/Enclosure Mounting
- Locking Type Threaded entry with locknut
- Usage & Applications Industrial, commercial, and hazardous area electrical wiring
- Tensile Strength High tensile brass body ensures secure grip
- Diameter Cable acceptance: 10 mm - 80 mm (depends on gland size)
- Insulation PVC shroud available for additional insulation
- Weight Depends on size, typically 100g-500g
- Click to View more
X
E1W CABLE GLAND Price And Quantity
- 1000 Piece
- 1150.0 INR/Piece
E1W CABLE GLAND Product Specifications
- Industrial, commercial, and hazardous area electrical wiring
- Cable acceptance: 10 mm - 80 mm (depends on gland size)
- Standard size; varies as per gland size (customizable)
- High tensile brass body ensures secure grip
- PVC shroud available for additional insulation
- Metallic
- -20C to +80C
- Not applicable (gland body and components are metallic)
- Threaded entry with locknut
- Up to 1000V (dependent on application)
- Silver/Metallic
- Brass (Nickel-plated brass on request)
- Available from 16 mm to 90 mm (various metric and imperial sizes)
- Panel/Enclosure Mounting
- Termination of steel wire armoured cables in electrical enclosures, switchgear, distribution panels, and junction boxes.
- Depends on gland size; conforms to gland size standards
- -20C to +80C (gland operating range)
- Provides moisture and dust proof seal at cable outer sheath, suitable for both indoor and outdoor applications, designed for use with armoured cables.
- For steel wire armoured (SWA) cables
- E1W Cable Gland
- -20C to +80C
- PVC or Thermoplastic (typically used for cable insulation)
- Not applicable (gland is external hardware)
- Depends on size, typically 100g-500g
- Steel wire armoured cable
- Metric, ET, PG, and NPT threads available
- Natural Brass, Nickel Plated Brass (on request)
- Brass
- Inner and outer seal for enhanced protection
- Indoor and outdoor duty, suitable for wet and dusty conditions
- IP66/IP67 (with correct installation)
- Wide range to suit different cable diameters
- Available with optional earth tag
- Suitable for hazardous environments according to ATEX (on request)
- BS 6121, EN 50262
- PVC (optional)
E1W CABLE GLAND Trade Information
- 4 Week
Product Description
The E1W Cable Gland is a high-performance, industrial-grade mechanical fitting specifically designed for use with Single Large Wire Armour (SWA) cables. Engineered for demanding environments, the E1W provides a dual-action seal, ensuring the integrity of both the cables inner and outer sheaths while offering superior mechanical retention for the galvanized steel armor.
Dual-Sealing Technology
Unlike standard glands, the E1W features two distinct seals:
-
Inner Seal: Provides a weatherproof and gas-tight grip on the cables inner bedding, protecting internal circuitry from moisture ingress.
-
Outer Seal: Compresses against the outer sheath to provide a robust IP66 rating, making it suitable for harsh outdoor conditions.
Armour Clamping & Safety
The defining feature of the E1W is its specialized armour clamping ring. This component ensures a high-strength mechanical grip and electrical continuity for the steel wire armour, which is vital for safe earthing and fault-current protection.
Construction & Application
Typically manufactured from high-quality Nickel-Plated Brass, E1W glands offer exceptional resistance to corrosion and environmental degradation. They are widely used in heavy-duty sectors such as power distribution, oil and gas, and infrastructure projects. Compliant with BS 6121 standards, the E1W is the industry benchmark for securing armored cables in both indoor and outdoor industrial installations.
Engineered for Versatility and Superior Protection
The E1W Cable Gland is designed to accommodate a wide selection of metric and imperial sizes, allowing compatibility with varying cable diameters from 10 mm up to 80 mm. Its high-grade brass construction ensures superior mechanical strength, while its dual-seal mechanism provides exceptional moisture and dust ingress protection for use in challenging environments.
Compliant and Safe for Hazardous Locations
This gland meets stringent standards including BS 6121 and EN 50262. With proper installation, it achieves IP66/IP67 ingress ratings and is suitable for hazardous (ATEX-rated) locations upon request. Optional features such as earth tags and PVC shrouds further enhance safety, making the E1W gland a trusted choice worldwide.
FAQ's of E1W CABLE GLAND:
Q: How do I install the E1W Cable Gland to achieve IP66/IP67 ingress protection?
A: To ensure IP66/IP67 ingress protection, follow the manufacturer's installation instructions carefully, making sure both the inner and outer seals are firmly engaged with the cable sheath. Secure the threaded gland tightly with a locknut on the panel or enclosure, and use an optional PVC shroud for added insulation and protection.Q: What environments are suitable for using the E1W Cable Gland?
A: The E1W Cable Gland is built for use in indoor and outdoor environments, including wet and dusty conditions. Its robust construction and tight sealing make it ideal for industrial, commercial, and hazardous locations requiring high ingress protection.Q: When should I include an earth tag and PVC shroud during installation?
A: Choose the optional earth tag when electrical continuity with the cable armor or gland mounting panel is required. Use a PVC shroud for applications needing additional insulation or protection against corrosive substances and environmental factors.Q: What cable types and sizes are compatible with this cable gland?
A: The E1W Cable Gland is specifically designed for steel wire armoured (SWA) cables. It is available in sizes from 16 mm to 90 mm metric, accommodating cable diameters from 10 mm to 80 mm, thus covering a broad range of armoured cable requirements.Q: Where can E1W Cable Glands be used in electrical installations?
A: These glands are suitable for terminating SWA cables in electrical enclosures, switchgear, distribution panels, and junction boxes in a variety of industrial, commercial, and hazardous area applications.Q: What are the main benefits of using the E1W Cable Gland?
A: E1W Cable Glands provide an effective moisture and dust-proof seal, secure cable grip, high mechanical strength, compliance with major international standards, and adaptability to different cable and panel types, enhancing overall safety and installation reliability.Tell us about your requirement
