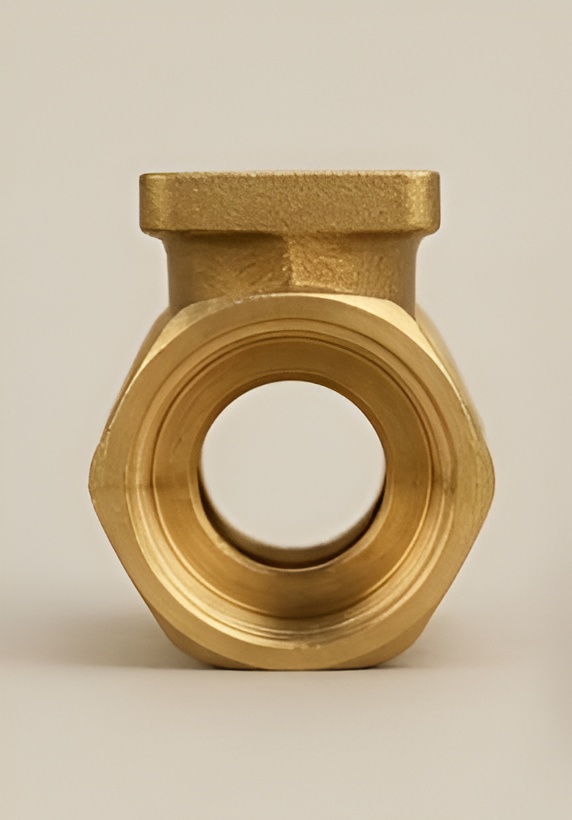

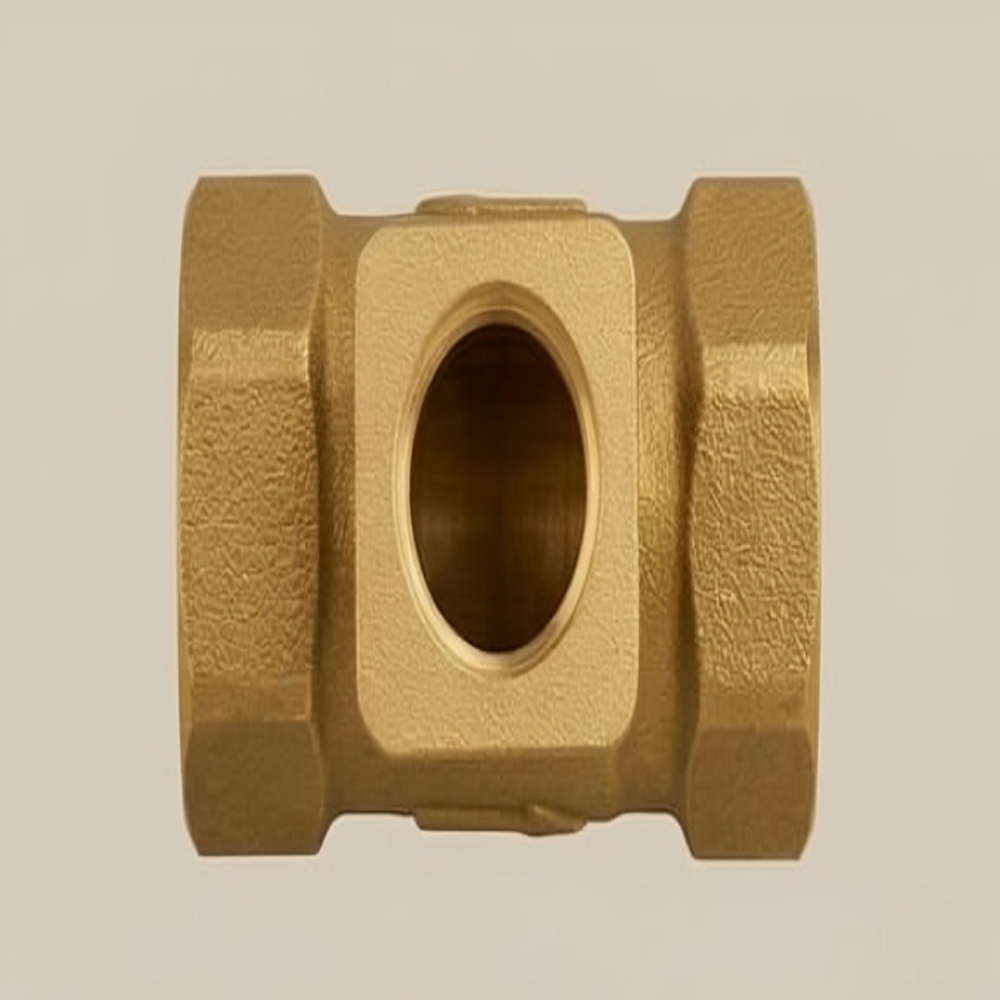

Forged Ball Valve Bodies

Product Description

The Anatomy of Forged Ball Valve Bodies

A forged ball valve body is the robust outer shell designed to house the internal componentsthe ball, seats, and stemwhile withstanding high-pressure flow. Unlike cast bodies, which are made by pouring molten metal into a mold, forged bodies are created through a mechanical process where solid metal (usually carbon or stainless steel) is shaped under extreme heat and pressure using dies.

Why Choose Forging?

The primary advantage of a forged body lies in its structural integrity. The forging process aligns the grain flow of the metal to the contour of the valve body. This results in:

• Superior Strength: Forged steel is denser and virtually free of internal defects like gas pockets or cooling cracks.

• High Pressure Resistance: Because of the refined grain structure, forged bodies are the gold standard for high-pressure (up to 10,000 psi or more) and high-temperature applications.

• Enhanced Safety: In critical industries like oil and gas or petrochemicals, the reliability of a forged body minimizes the risk of catastrophic failure under stress.

Design Variations

Forged ball valve bodies typically come in two or three-piece designs.

1. Two-Piece Forged: Consists of a main body and one end cap, offering a balance between cost and serviceability.

2. Three-Piece Forged: Features a center body with two end caps. This "swing-out" design is highly valued for maintenance, as it allows technicians to replace seals and seats without removing the entire valve from the pipeline.

Material Standards

Most forged bodies are manufactured to strict international standards, such as ASTM A105 for carbon steel or ASTM A182 for stainless steel. These materials ensure that the valve can handle corrosive environments and maintain mechanical properties over a long service life.
