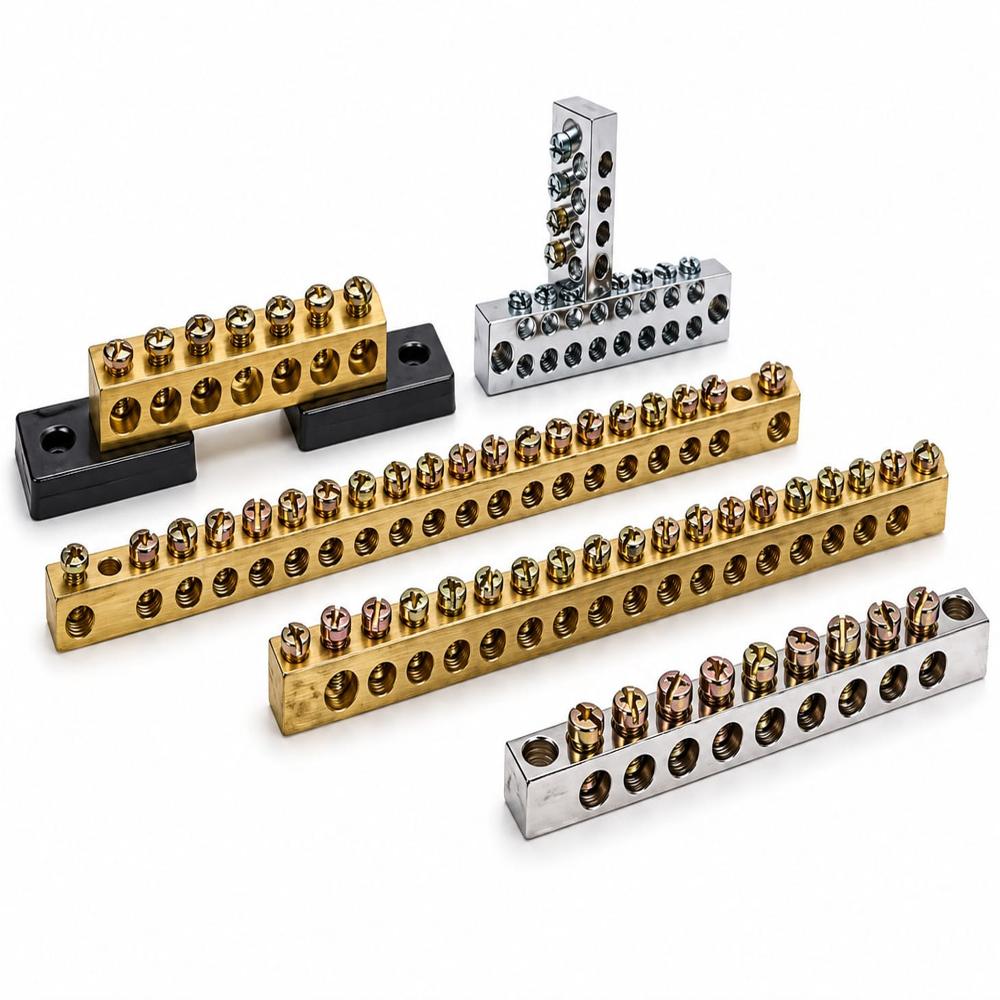

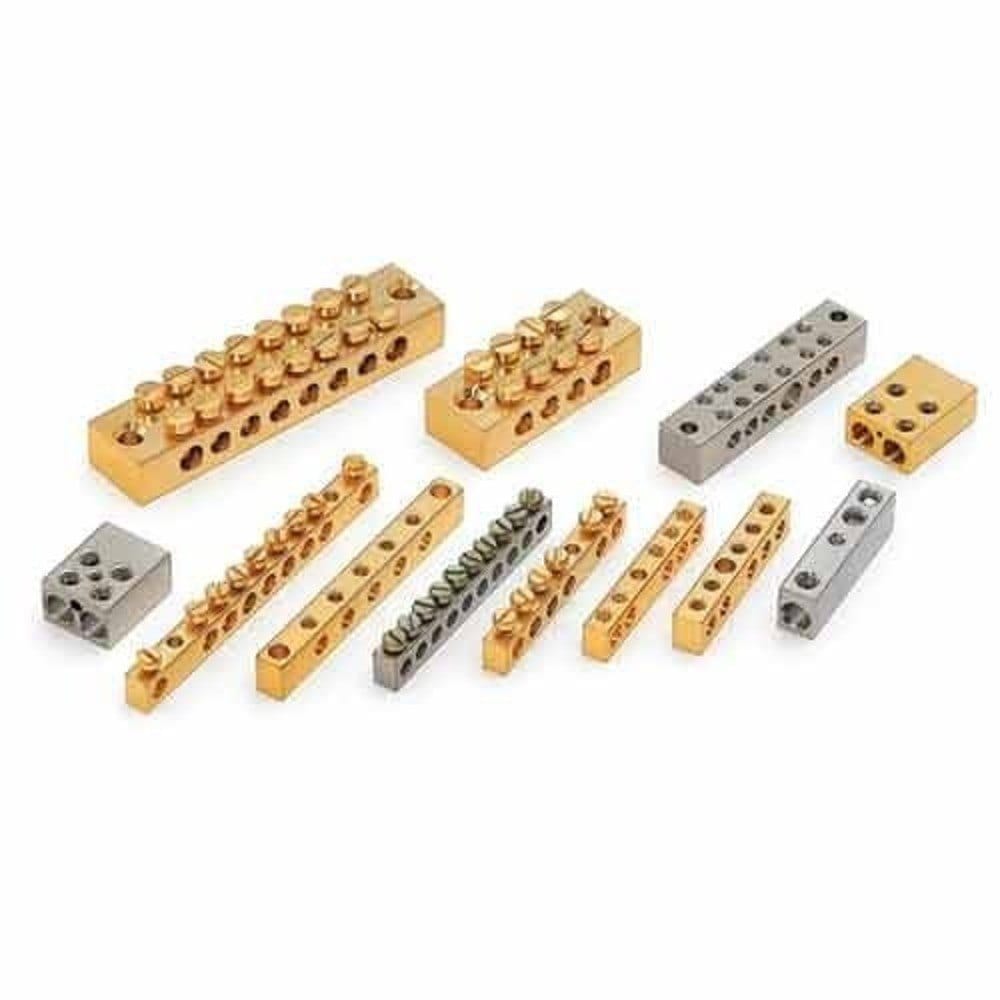

brass power distribution block
Product Details:
- Product Type Other
- Style Screw Clamp
- Material Capabilities Other
- Surface Treatment Nickel Plated
- CNC Machining Yes
- Size Customizable
- Dimension (L*W*H) 100mm x 25mm x 20mm
- Click to View more
brass power distribution block Price And Quantity
- 1000 Kilograms
- 1150.0 INR/Kilograms
brass power distribution block Product Specifications
- Golden Brass
- 100mm x 25mm x 20mm
- Nickel Plated
- Screw Clamp
- Yes
- Customizable
- Other
- Other
- BRASS
- Up to 2.5 Nm
- Up to 600V
- 1 to 12 Poles (Configurable)
- DIN Rail or Panel Mount
- >2000 M
- Box / Carton
- -40C to +120C
- Industrial Panels, Control Cabinets, Electrical Switchboards
- Up to 250A
- 2.5mm2 - 50mm2
- Screw Terminal
- High
- RoHS, CE Approved
brass power distribution block Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, Middle East, Africa, South America, Eastern Europe, Western Europe
- All India
Product Description
A brass power distribution block (PDB) is a heavy-duty electrical component designed to take a single primary input power source and distribute it across multiple secondary circuits. By acting as a centralized hub, these blocks eliminate the need for complex "daisy-chaining" of wires, resulting in a cleaner, safer, and more organized electrical panel.
Material Superiority
These blocks are engineered from high-conductivity brass alloys, which offer a robust alternative to aluminum. Brass provides a significant advantage in terms of mechanical durability; the threads in a brass block are far more resistant to stripping under high torque, ensuring a gas-tight, long-term connection. To prevent oxidation and to allow for the safe mixing of copper and aluminum conductors, the brass bodies are typically electro-tin plated.
Design and Safety Features
-
Modular Configuration: PDBs often feature a "1-in, multiple-out" design, accommodating various wire gauges for both the line and load sides.
-
Insulated Housing: Most blocks are encased in high-heat, flame-retardant polymers (such as UL 94 V-0 rated plastics) to prevent accidental contact and short circuits.
-
High Amperage Capacity: Designed to manage substantial current loads, they are common in systems ranging from 100A to over 1000A, depending on the cross-sectional mass of the brass core.
Key Applications
Power distribution blocks are essential in industrial automation, HVAC systems, and commercial motor control centers. They are also widely used in renewable energy setups, such as solar combiner boxes, to merge outputs from multiple strings into a single inverter feed. By streamlining the wiring process, brass PDBs reduce installation time and simplify future troubleshooting, making them a cornerstone of modern industrial electrical engineering.
Engineered for Versatile Industrial Applications
This power distribution block is meticulously designed for use in various industrial environments, including electrical switchboards, automation panels, and control cabinets. Its high corrosion resistance and robust brass construction ensure durability, while both DIN rail and panel mounting options offer installation flexibility. The block's design accommodates a range of wiring configurations, making it adaptable to diverse electrical schematics and demanding operational conditions.
Superior Safety and Performance Standards
Ensuring both safety and reliability, this product is RoHS and CE approved. The high insulation resistance of over 2000 M, combined with precision CNC machining and nickel plating, minimizes risk and maximizes conductivity. The product also adheres to strict torque and operating temperature specifications, providing peace of mind for engineers and installers working in mission-critical applications.
FAQ's of brass power distribution block:
Q: How do I install the brass power distribution block?
A: The block can be easily mounted using either a DIN rail or directly onto a panel. Secure the block in your desired location, connect wires into the screw terminals according to your circuit requirements, and tighten up to 2.5 Nm torque for a reliable connection.Q: What types of wiring applications is this distribution block suitable for?
A: This distribution block supports wire sizes from 2.5mm2 to 50mm2, making it ideal for industrial panels, electrical switchboards, and control cabinets requiring safe and efficient power distribution.Q: When should I use a brass power distribution block instead of other metals?
A: Brass offers excellent corrosion resistance, superior conductivity, and durability in harsh industrial settings. Choose this block when you require a component that withstands extreme temperatures and demanding operational environments.Q: Where can I use this power distribution block?
A: Its robust construction and compliance with RoHS and CE standards make it suitable for industrial, electrical, and automation panels used in various commercial and manufacturing facilities.Q: What benefits does the nickel-plated surface provide?
A: The nickel plating enhances corrosion resistance, prolongs product lifespan, and ensures stable electrical performance, especially in moisture-prone or chemically aggressive environments.Q: How many poles and wire configurations can I customize?
A: The product is configurable for 1 to 12 poles and accommodates wire sizes from 2.5mm2 to 50mm2, allowing you to match your specific circuit and load requirements.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
