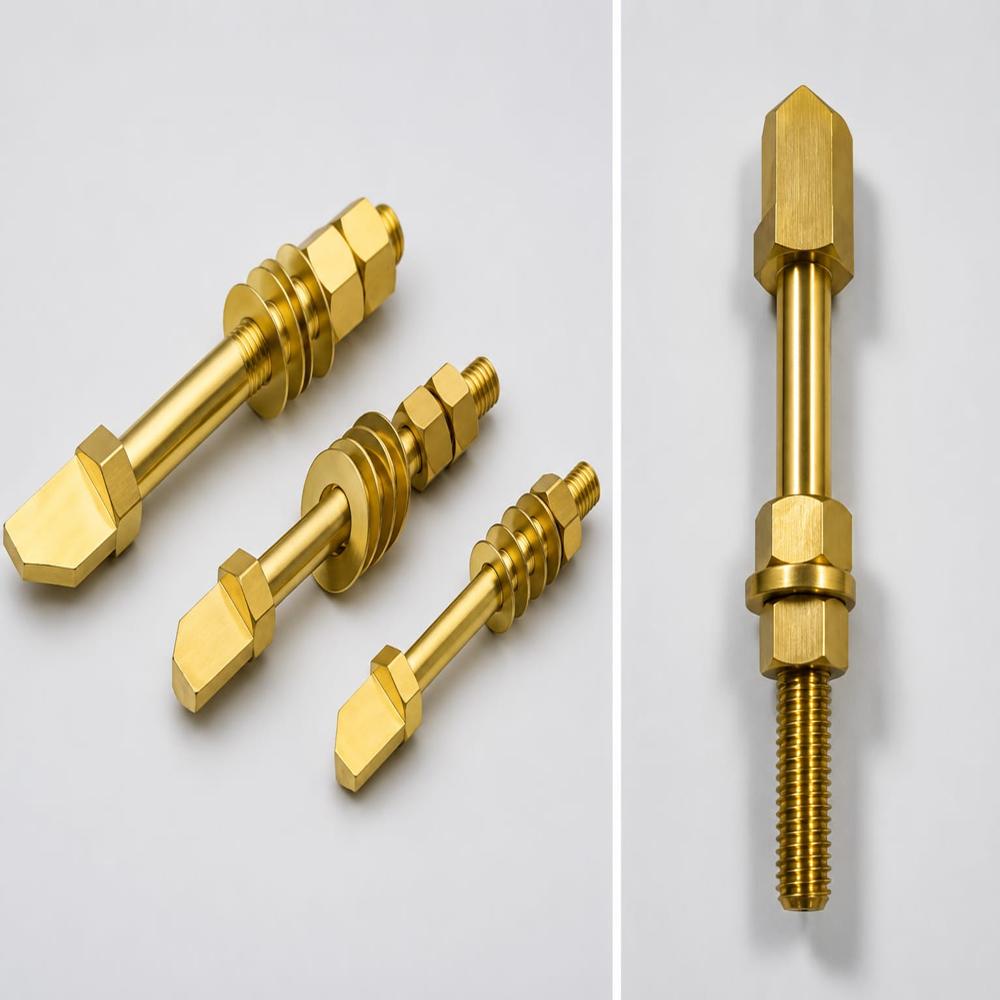

BRASS STUD TERMINAL
Product Details:
- Product Type Other
- Style Hexagonal Head with Threaded Stud
- Material Capabilities Other
- Surface Treatment Natural Brass Finish or Nickel Plated
- CNC Machining Yes
- Size MULTI
- Dimension (L*W*H) As per requirement (Common: 20mm-60mm length x diameter as per size)
- Click to View more
BRASS STUD TERMINAL Price And Quantity
- 1100.0 INR/Kilograms
- 1000 Kilograms
BRASS STUD TERMINAL Product Specifications
- MULTI
- As per requirement (Common: 20mm-60mm length x diameter as per size)
- Other
- Yes
- Hexagonal Head with Threaded Stud
- Golden
- Natural Brass Finish or Nickel Plated
- Other
- BRASS
- Thread Length, Head Shape, Plating Options Available
- -40C to +120C
- Metric / Imperial Threads (as per requirement)
- Electrical, Automotive, Industrial Terminal Connections
- Panel Mount / PCB Mount
- Up to 50A (Varies by size and application)
- RoHS Compliant
BRASS STUD TERMINAL Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
The Brass Stud Terminal is a specialized electrical connector designed for high-current applications where secure, permanent, and vibration-resistant terminations are required. Unlike standard screw-type terminal blocks, the stud terminal utilizes a threaded post (stud) and nut assembly to clamp wire lugs or busbars, providing a superior mechanical and electrical bond for heavy-duty power distribution.
Material Superiority
Machined from premium-grade brass, these terminals leverage the alloy's excellent electrical conductivity and mechanical toughness. In high-amperage environments, the choice of brass is critical because it maintains its structural integrity under significant thermal stress. Furthermore, brass is naturally resistant to corrosion, ensuring that the contact surface between the lug and the stud remains free of oxidation. This prevents "hot spots"areas of high resistance that can lead to catastrophic electrical failure.
Key Design Advantages
The design of the brass stud terminal is focused on reliability and ease of maintenance:
-
High Torque Capacity: The threaded stud allows for the application of high torque via a hex nut, ensuring a "gas-tight" connection that will not loosen due to thermal cycling or mechanical vibration.
-
Versatile Termination: These terminals can accommodate various cable sizes by using different-sized crimp lugs, making them ideal for battery connections, motors, and industrial transformers.
-
Dual-End Mounting: Often available in "stud-to-stud" or "stud-to-screw" configurations, they offer flexibility for bridging power between two cables or mounting directly onto a panel board.
Industrial Applications and Safety
Brass stud terminals are the preferred choice for demanding sectors, including automotive power systems, renewable energy inverters, and heavy machinery control panels. By providing a large surface area for current transfer, they minimize voltage drops and maximize efficiency. For engineers and manufacturers, these terminals represent a "fit-and-forget" solution that meets rigorous safety standards, ensuring long-term stability in both domestic power hubs and complex industrial grids.
Versatile Connection Solutions
Designed for both panel and PCB mounting, the Brass Stud Terminal is ideal for a wide range of electrical, automotive, and industrial uses. Its adaptability ensures secure and stable connections in demanding environments, making it a preferred choice for professionals seeking reliable terminal connectivity.
Tailored to Your Project Needs
With multiple customization options available-including thread length, head shape, surface plating, and overall dimensions-this stud terminal can be manufactured to suit specific project requirements. Manufacturers and suppliers ensure meticulous quality control, supporting project flexibility and unique application demands.
Durability and Performance
Produced using high-grade brass and precision CNC machining, the terminal delivers superior durability and conductivity. The product withstands operating temperatures from -40C to +120C and supports high current loads up to 50A. Choose from natural or nickel-plated finishes for enhanced rust resistance and longevity.
FAQ's of BRASS STUD TERMINAL:
Q: How do I select between panel mount or PCB mount Brass Stud Terminals?
A: The mounting type depends on your application's requirements. Panel mount terminals are typically used for direct attachment to enclosures or chassis, while PCB mount terminals are designed to fit onto printed circuit boards. Choose the mount type that matches your installation preference for a secure and reliable connection.Q: What customization options are available for Brass Stud Terminals?
A: You can customize the thread length, head shape, plating (natural brass or nickel), and overall dimensions (common length ranges from 20mm-60mm, with diameter as per requirement). These modifications ensure the terminal fits your specific electrical or mechanical applications.Q: When should I use a brass terminal with imperial threads instead of metric?
A: Select metric or imperial thread types according to your regional standards or the compatibility of existing hardware. Imperial threads are commonly used in North America, while metric threads are standard in Europe and Asia. This ensures seamless integration and secure fastening in your project.Q: Where can these Brass Stud Terminals be commonly applied?
A: They are widely used in electrical distribution panels, automotive wiring systems, and industrial equipment for terminal connections. Their reliability and durability make them suitable for high-vibration and heavy-duty environments.Q: What is the process for ordering custom Brass Stud Terminals?
A: To order custom terminals, provide your specifications such as required thread type, length, head shape, plating preference, and quantity to the manufacturer or supplier. Custom orders benefit from CNC machining, ensuring precision and consistency in each terminal produced.Q: How does RoHS compliance benefit my project?
A: RoHS compliant Brass Stud Terminals do not contain hazardous substances, ensuring your end product meets international environmental safety standards and reduces the risk of regulatory issues.Q: What are the benefits of choosing a brass stud terminal with a nickel-plated surface?
A: Nickel plating enhances the terminal's resistance to corrosion, oxidation, and surface wear, extending product life and maintaining electrical conductivity in harsh or moisture-prone environments.
