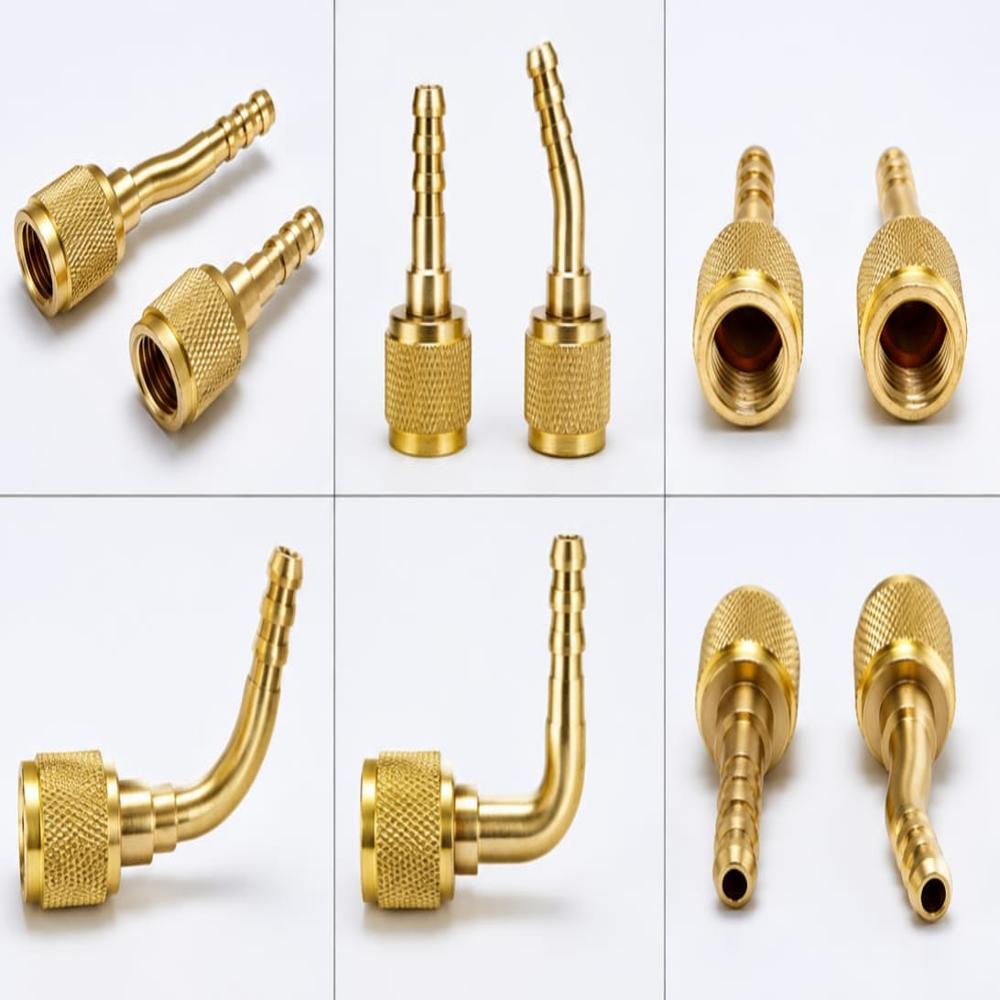

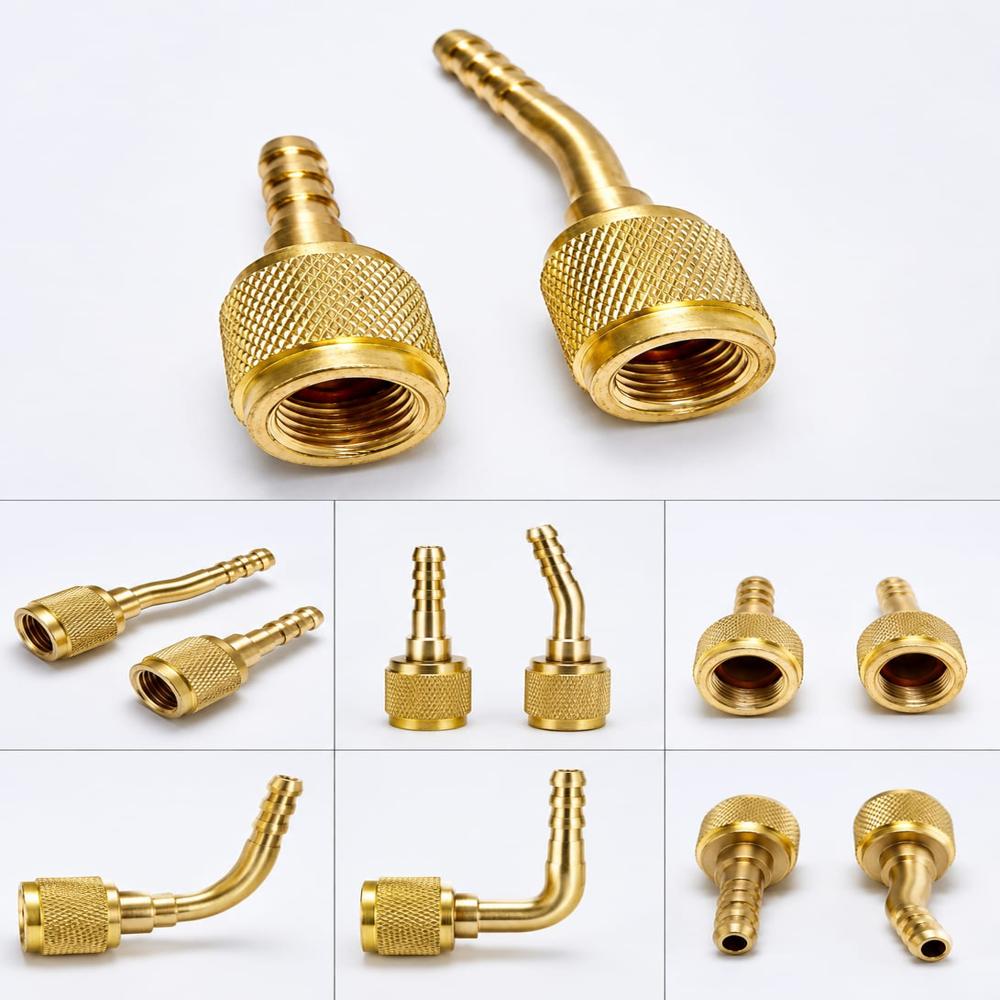

Refrigerant Charging Hose Connector
Product Details:
- Material BRASS
- Product Type Refrigerant Charging Hose Connector
- Type Refrigerant Charging Hose Connector
- Color Gold (Body) with Blue Grip
- Size 1/4 inch
- Diameter Standard 1/4 inch SAE
- Length N/A (Connector Only)
- Click to View more
Refrigerant Charging Hose Connector Price And Quantity
- 1000 Kilograms
- 1150.0 INR/Kilograms
Refrigerant Charging Hose Connector Product Specifications
- 1/4 inch
- BRASS
- Gold (Body) with Blue Grip
- N/A (Connector Only)
- Standard 1/4 inch SAE
- Refrigerant Charging Hose Connector
- Straight with Hex Nut
- Nickel Plated
- Refrigerant Charging Hose Connector
- Compatible with R134a, R22, R410a, R12 and More
- Up to 600 psi
- Knurled Grip for Easy Handling
- Blister Pack or Individual
- Yes, with Internal Gasket
- -30C to 120C
- Refrigeration and Air Conditioning Charging Hoses
- SAE Flare Thread
- High
Refrigerant Charging Hose Connector Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Australia, Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
The Refrigerant Charging Hose Connector is a critical interface component used by HVAC/R technicians to link manifold gauges, vacuum pumps, and recovery units to a refrigeration system. These connectors are engineered to maintain a hermetic seal under high pressure while allowing for frequent manual attachment and detachment during system servicing, charging, and diagnostics.
Construction and Material Quality
High-performance connectors are precision-machined from heavy-duty brass, selected for its exceptional durability and natural resistance to the corrosive effects of various refrigerants and compressor oils. To facilitate ease of use, the outer surface usually features deep knurling, providing a non-slip grip for hand-tightening, even when the technician's hands are oily or gloved.
Internally, the connector is fitted with a high-grade chloroprene or nitrile rubber gasket. These seals are designed to resist "blow-outs" and chemical degradation, ensuring a leak-proof connection that prevents the loss of refrigerant and the entry of atmospheric moisture or non-condensables into the system.
Design Features and Variations
-
Anti-Blowback Technology: Many modern connectors feature an internal valve core depressor (actuator) that is precisely calibrated to open the systems Schrader valve only when a secure connection is made, minimizing "finger-burn" from escaping refrigerant.
-
Standard Sizing: Most connectors adhere to the industry-standard 1/4" SAE flare thread. However, specialized connectors for R-410A systems often utilize a 5/16" SAE (1/2"-20 UNF) size to prevent cross-contamination and match higher-pressure requirements.
-
Angled vs. Straight: Connectors are available in straight configurations for open access or 45-degree angles to accommodate tight spaces behind condenser units or within control panels.
Operational Excellence
The reliability of a charging hose connector directly impacts the accuracy of pressure readings and the efficiency of the charging process. By providing a secure, repeatable, and robust connection, these brass components ensure that HVAC systems are maintained at peak performance while adhering to environmental regulations regarding refrigerant containment. Whether used on a manifold set or a vacuum hose, the brass connector remains the industry standard for secure fluid transfer.
High-Performance Compatibility
Designed for use with a broad spectrum of refrigerants such as R134a, R22, R410a, and R12, this brass connector offers dependable performance in both commercial and residential HVAC servicing. The knurled grip and straight shape with hex nut support easy tool operation, ensuring a secure connection every time.
Enhanced Durability and Safety
Thanks to its nickel-plated brass construction, this connector resists corrosion even in harsh environments. The internal gasket delivers a leak-proof connection at pressures up to 600 psi, prioritizing both safety and efficiency during refrigerant recharging.
Designed for Ease of Use
The ergonomic blue grip and straightforward 1/4 inch SAE design simplify installation and removal. Versatile packaging options also accommodate various supply chain needs, whether for individual technicians or bulk purchases by exporters and suppliers.
FAQ's of Refrigerant Charging Hose Connector:
Q: How do I connect this refrigerant charging hose connector to my system?
A: Align the 1/4 inch SAE flare thread on the connector with the corresponding fitting on your charging hose or manifold. Tighten the hex nut securely using a standard wrench. The knurled blue grip aids in hand-tightening or loosening, ensuring a stable, leak-proof seal due to the internal gasket.Q: What types of refrigerants is this connector compatible with?
A: This connector is compatible with a variety of refrigerants, including R134a, R22, R410a, R12, and many others, making it suitable for most HVAC applications in both refrigeration and air conditioning systems.Q: When should I use this connector during maintenance?
A: It is used during the refrigerant charging, recovery, or evacuation processes when you need to securely connect your hose to system service ports. Its robust construction makes it ideal for both routine and high-pressure servicing situations.Q: Where is the best environment to use this connector?
A: With a working temperature range from -30C to 120C and high corrosion resistance, this connector is reliable in both indoor and outdoor settings, including demanding commercial or residential HVAC environments.Q: What are the benefits of the knurled grip and leak-proof design?
A: The knurled grip facilitates easier handling, especially when wearing gloves or working in tight spaces. The internal gasket within the connector ensures leak-proof performance, enhancing safety and preventing refrigerant loss.Q: How does the internal gasket maintain leak proof performance?
A: The internal gasket is engineered to compress tightly during connection, filling any micro-gaps and thus preventing refrigerant leaks even at pressures up to 600 psi. This guarantees system integrity and operational safety.
