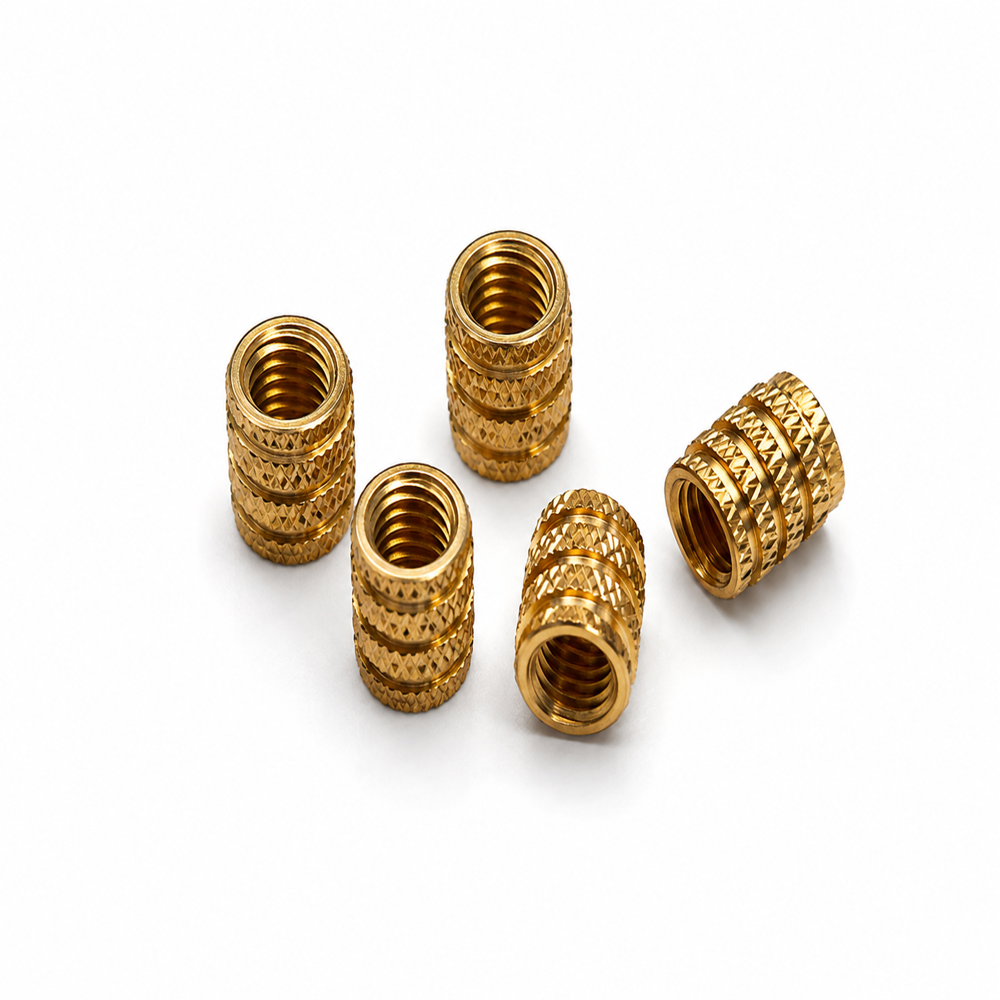

brass PCB Insert
Product Details:
- Size MULTI
- Material BRASS
- Product Type brass PCB Insert
- Type PCB Insert
- CNC Machining Yes
- Diameter 3 mm
- Tolerance 0.05 mm
- Click to View more
brass PCB Insert Price And Quantity
- 1150.0 INR/Kilograms
- 1000 Kilograms
brass PCB Insert Product Specifications
- Other
- 0.05 mm
- brass PCB Insert
- 3 mm
- Yes
- BRASS
- Other
- MULTI
- PCB Insert
- 10 mm
- Metric
- Nickel Plated
- High
- Polybag/Box
- High-Grade Brass
- -40C to +200C
- Printed Circuit Boards (PCBs), Electronic Components
- RoHS Compliant
- 80-130 HV
brass PCB Insert Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, Africa, North America, South America, Eastern Europe, Western Europe, Middle East
- All India
Product Description
Brass PCB inserts, also known as printed circuit board standoffs or surface-mount nuts, are specialized fasteners designed to provide threaded mounting points directly onto or through a circuit board. Unlike traditional hardware that may require manual assembly, these inserts are engineered to bridge the gap between mechanical housing and electronic circuitry, ensuring a secure and conductive connection.
Integration Methods
Depending on the manufacturing process, brass PCB inserts generally fall into three categories:
-
Surface Mount (SMT): These are delivered on tape-and-reel packaging and soldered directly onto the PCB during the reflow process alongside other components. This eliminates the need for secondary manual installation.
-
Broaching/Press-Fit: These inserts feature a knurled or serrated shank that is pressed into a pre-drilled, non-plated hole. The "teeth" of the insert cut into the board material (typically FR-4), creating a strong mechanical bond.
-
Flare-Mount: The shank is passed through the board and "flared" out on the underside, permanently locking it in place.
Functional Advantages
Brass is the industry-standard material for PCB inserts due to its high electrical conductivity and solderability. When soldered to a board, a brass insert can serve a dual purpose: it acts as a mechanical fastener for the enclosure and as an electrical grounding path or high-current terminal. Furthermore, brass is non-magnetic, ensuring it does not interfere with the sensitive electromagnetic signals of the circuit.
Key Applications
-
Industrial Controls: Mounting heavy heat sinks or high-power components that require robust mechanical support.
-
Telecommunications: Securing shielding cans and RF enclosures to prevent signal interference.
-
Automotive Electronics: Providing vibration-resistant mounting points for ECUs and sensor modules.
-
Data Centers: Supporting heavy busbars and power distribution units on thick-copper PCBs.
Precision Engineering for Reliable Connections
Our brass PCB inserts deliver unmatched durability and precise performance in electronic assemblies. Crafted from premium brass and finished with nickel plating, they offer excellent corrosion resistance and mechanical strength. Each insert is CNC machined to strict tolerances, ensuring a consistent and secure fit within printed circuit boards. Whether you are building prototypes or high-volume productions, these inserts provide the reliability that electronic manufacturers demand.
Optimized for Electronic Applications
Nickel-plated brass PCB inserts are specifically designed for use in PCBs and a wide array of electronic components. The metric threading supports easy integration into diverse assembly processes, while the high operating temperature range ensures performance under extreme conditions. Each insert is RoHS compliant, guaranteeing its suitability for environmentally conscious manufacturing. Find the sizing and packaging flexibility you need with options in both polybag and box formats.
FAQ's of brass PCB Insert:
Q: How are these brass PCB inserts installed in a printed circuit board?
A: The brass PCB inserts are designed to be press-fitted or heat-installed into pre-drilled holes on the PCB. Their metric threading allows for secure attachment of additional components or hardware, ensuring mechanical stability within electronic assemblies.Q: What advantages does nickel plating offer for these PCB inserts?
A: Nickel plating significantly improves the inserts' resistance to corrosion, thereby extending the product's lifespan. It also provides a smoother surface finish, which aids in easier assembly and ensures reliable electrical conductivity.Q: When should I use brass PCB inserts instead of other fastening methods?
A: Brass PCB inserts are ideal when repeated assembly and disassembly are required, or when strong, wear-resistant threads are needed. They are especially suitable for applications exposed to vibration or temperature fluctuations, thanks to their high durability and stable performance.Q: Where are these brass PCB inserts typically used?
A: These inserts are commonly utilized in electronic devices, control panels, and other appliances employing printed circuit boards. Their robust design makes them suitable for a variety of industries, including consumer electronics, industrial controls, and communications equipment.Q: What is the manufacturing process of these PCB inserts?
A: Our inserts are precision CNC machined from high-grade brass, followed by a nickel plating process to enhance surface properties. Each insert is then inspected for dimensional accuracy, ensuring a tolerance of 0.05 mm.Q: How does RoHS compliance benefit my application?
A: RoHS compliance ensures that these inserts are free from hazardous substances like lead, making them safe for use in electronics destined for global markets while aligning with environmental regulations.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
