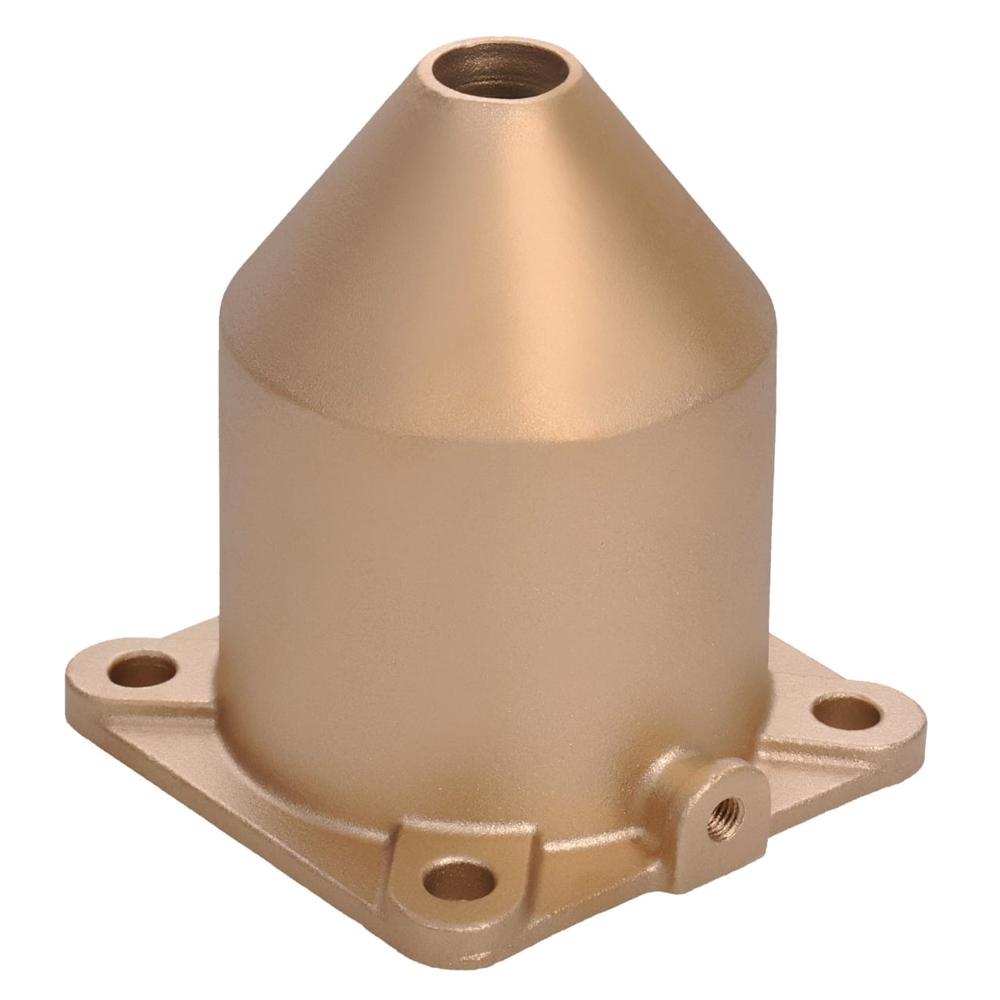

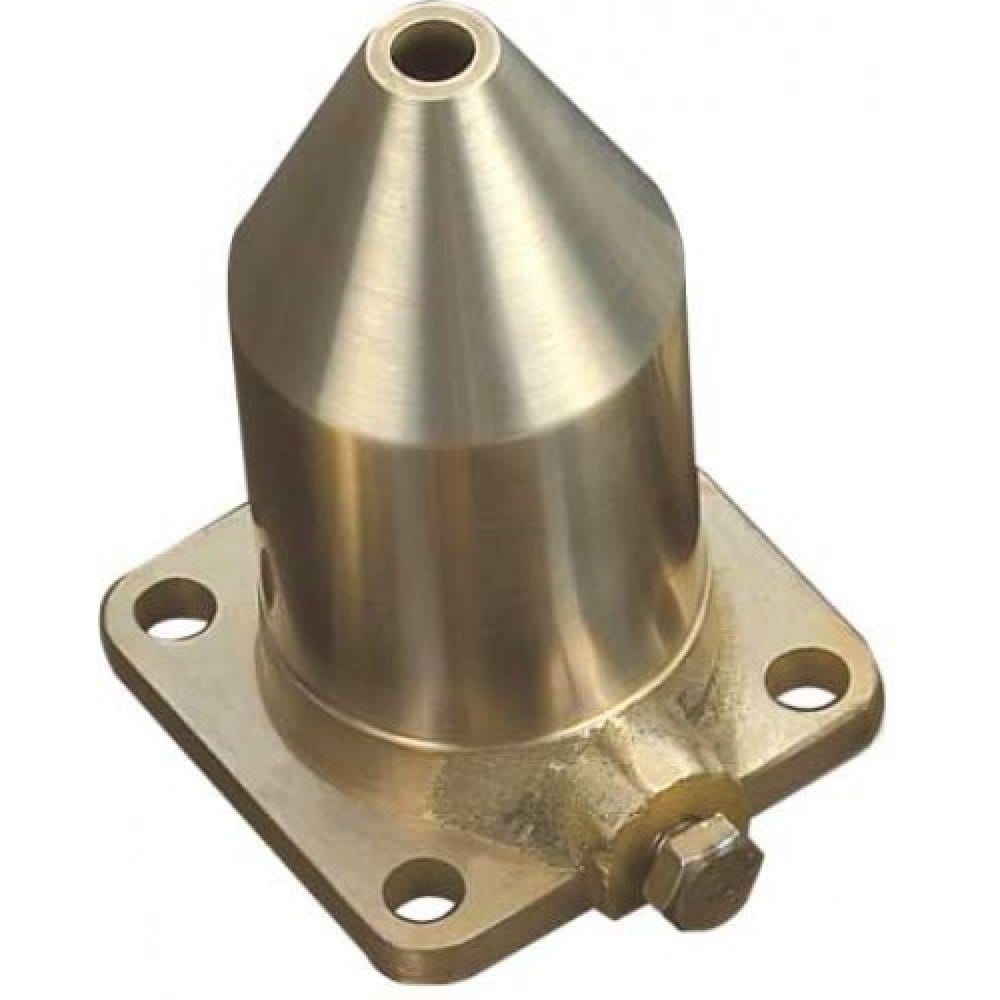

Brass Wiping Cable Gland

Name: Brass Wiping Cable Gland
Brand: Narayan Components
Price: 1150.0 INR
Availability: InStock

1150.0 INR/Piece

Get a Price/Quote

Product Details:

Weight Varies as per size, e.g. 80g-350g
Rated Temperature -20C to +80C
Features Dust proof, moisture resistant, flameproof construction, high conductivity, suitable for earth continuity
Tensile Strength High mechanical strength
Usage & Applications Electrical wiring, cable termination, earth continuity in panel boards, distribution boxes
Install Type Threaded, with lock nut and washer
Operating Temperature -20C to +80C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Brass Wiping Cable Gland Price And Quantity

Price 1150.0 INR/Piece
Minimum Order Quantity 1000 Piece

Brass Wiping Cable Gland Product Specifications

Connector Color Brass natural
Features Dust proof, moisture resistant, flameproof construction, high conductivity, suitable for earth continuity
Rated Temperature -20C to +80C
Tensile Strength High mechanical strength
Insulation Material Not applicable (This is a gland, not a cable)
Product Type BRASS CABLE GLAND
Material BRASS
Weight Varies as per size, e.g. 80g-350g
Usage & Applications Electrical wiring, cable termination, earth continuity in panel boards, distribution boxes
Install Type Threaded, with lock nut and washer
Size Standard metric/BSP sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm
Dimension (L*W*H) Available in various sizes (custom or standard), e.g. 20mm, 25mm, 32mm, etc.
Color Natural brass
Storage Temperature -25C to +90C
Diameter Based on cable entry size: e.g., 20mm, 25mm, etc.
Operating Temperature -20C to +80C
Voltage Up to 660V
Application Other
Insulation No insulation (metallic gland for cable connection)
Cable Type Compatible with lead sheathed and armored cables
Jacket Material Not applicable (No cable jacket present)
Length Customizable as per requirement
Locking Type Threaded with locknut

Ingress Protection IP54 when correctly installed
Accessory Compatibility Supplied with brass lock nut and fiber / PVC washer if required
Finish Natural brass, nickel plated finish available upon request
Thread Type Metric or BSP
Standards IS 12943, BS 6121
Corrosion Resistance High, especially with nickel plated options
Mounting Indoor and outdoor installation

Brass Wiping Cable Gland Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 2 Week
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

A Brass Wiping Cable Gland (often called a Wiping Cone) is a specialized heavy-duty fitting used primarily for terminating and earthing medium-to-high voltage power cables, specifically those with a lead sheath (such as PILCPaper Insulated Lead Covered cables).

Unlike standard compression glands that use rubber seals, "wiping" refers to the traditional method of "plumbing" or soldering a joint to create a permanent, watertight, and electrically conductive seal between the cable's lead sheath and the brass gland.

Key Features & Components

These glands are designed for high-stress environments like transformers, switchgear, and underground power distribution. A standard kit usually includes:

Brass Cone/Body: The main housing that provides mechanical strength and a surface for the "wiped" joint.
Armour Clamps: Often include jubilee clips or M.S. strips to secure the cable's steel wire armour (SWA).
Earthing Lead: Ensures electrical continuity and provides a path to ground.
Heatshrink Sleeve: Used in modern versions to provide additional environmental sealing over the wiped area.

Compliant with International Standards

Our brass wiping cable glands conform to IS 12943 and BS 6121 standards, ensuring quality, safety, and long-term reliability. These standards guarantee the product's suitability for demanding environments, providing peace of mind in electrical installations.

Adaptable and Customizable Designs

Available in a range of standard metric and BSP sizes, from 20mm to 75mm, our cable glands can also be tailored in length and dimensions to meet specific project requirements. The customizable nature ensures precise compatibility with any cable entry size.

Superior Mechanical and Environmental Performance

With high mechanical strength and corrosion resistance, particularly in the nickel-plated variant, these glands offer exceptional durability. Rated IP54 when installed correctly, they're dust-proof, moisture-resistant, and flameproof, suitable for both indoor and outdoor use.

FAQ's of Brass Wiping Cable Gland:

Q: How is the Brass Wiping Cable Gland installed?

A: The cable gland is installed using a threaded method, secured with a lock nut and an optional fiber or PVC washer. It can be mounted on both indoor and outdoor equipment, ensuring a tight seal and proper conductivity for earth continuity.

Q: What standards and protection ratings does this cable gland comply with?

A: This gland adheres to IS 12943 and BS 6121 standards and, when properly installed, achieves an ingress protection rating of IP54, providing dust and moisture resistance suitable for general electrical applications.

Q: When should I choose the nickel-plated finish option?

A: Choose the nickel-plated finish if your installation environment is prone to high humidity or corrosive elements. Nickel plating significantly enhances the gland's corrosion resistance, making it ideal for harsher conditions.

Q: Where can Brass Wiping Cable Glands be used?

A: These glands are suitable for a wide array of electrical applications, including panel boards, distribution boxes, and earth continuity systems-supporting both indoor and outdoor installations with lead-sheathed or armored cables.

Q: What is the process for selecting the right gland size?

A: To select the correct gland, determine the cable entry diameter and choose a matching metric or BSP size (from 20mm to 75mm). Custom lengths and sizes can be arranged to fit unique project needs, ensuring a secure fit and effective sealing.

Q: How does this cable gland benefit cable terminations and safety?

A: The gland provides flameproof, dust-proof, and moisture-resistant protection, ensuring reliable cable termination and earth continuity. Its high conductivity and mechanical strength enhance the safety and performance of electrical connections.

Q: What accessories are compatible with the Brass Wiping Cable Gland?

A: Each gland can be supplied with a brass lock nut and a fiber or PVC washer upon request, facilitating secure mounting and added sealing for improved environmental resistance.
