BRASS WING NUTS

Product Description

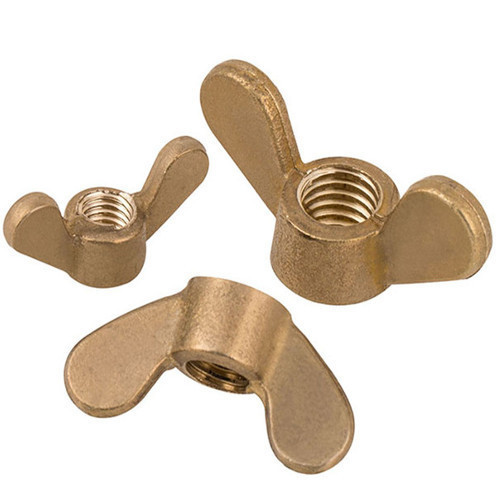

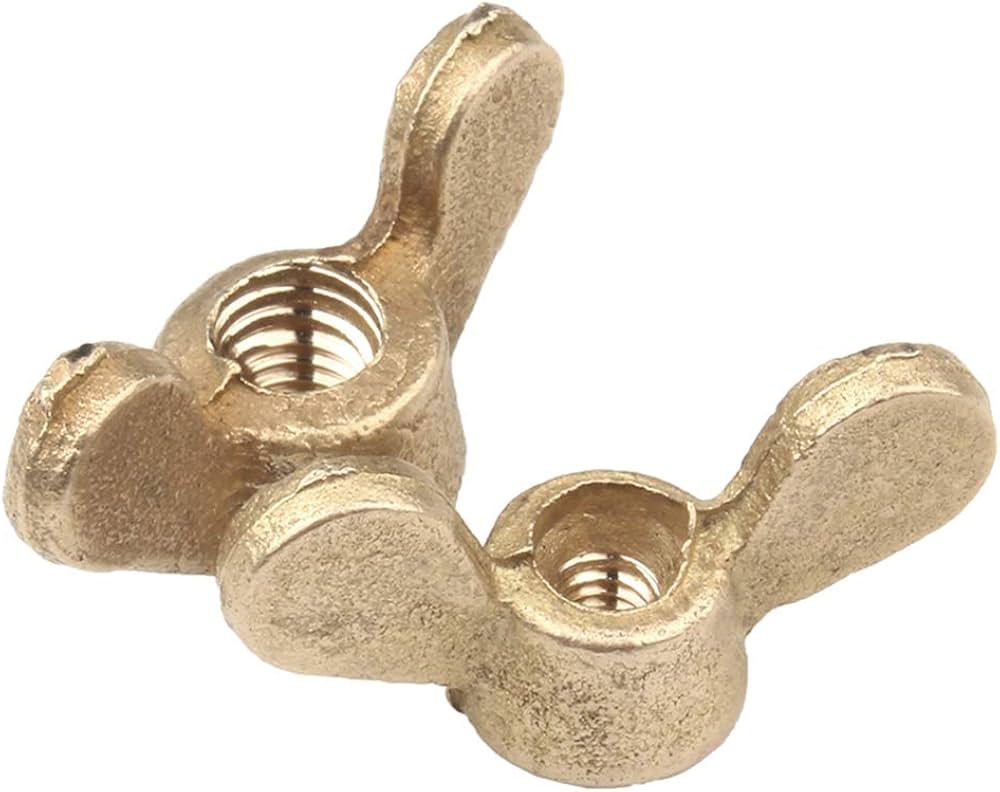

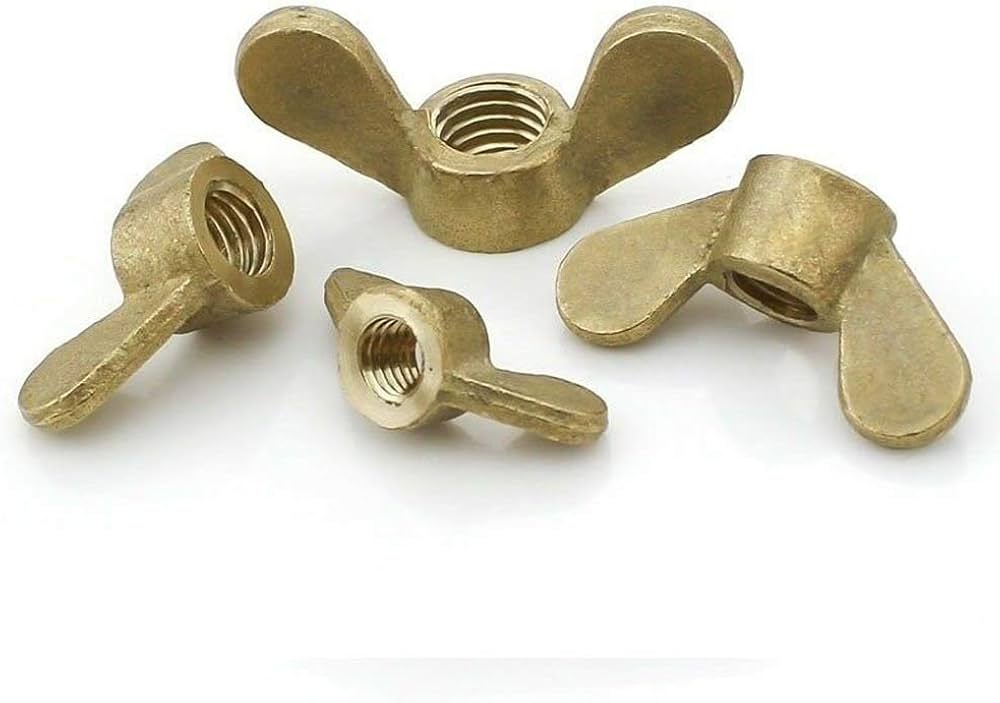

Brass Wing Nuts

A Brass Wing Nut (also known as a butterfly nut) is a specialized fastener designed with two large, flat metal "wings" extending from the sides of the nut body. This unique geometry allows the nut to be tightened and loosened manually using only finger pressure, eliminating the need for wrenches, sockets, or other hand tools.

Design and Ergonomic Functionality

The primary advantage of the wing nut is its accessibility. The wings act as a built-in lever, providing the mechanical advantage necessary to apply sufficient torque by hand.

• Finger-Tight Application: Ideal for assemblies that require frequent adjustments, maintenance, or disassembly.

• Wing Styles: Most industrial brass wing nuts follow the Type A (Cold Forged) or Type D (Stamping) designs, ensuring the wings are sturdy enough to withstand repeated manual torque without bending.

• Precision Threading: Despite being hand-operated, these nuts feature high-tolerance internal threads (Metric or Unified) to ensure a secure, shake-free fit on standard bolts.

Material Superiority: High-Grade Brass

In the industrial hardware sector, manufacturing wing nuts from Brass offers significant functional benefits over zinc-plated steel or plastic alternatives:

1. Superior Corrosion Resistance: Brass does not rust. This makes it the standard choice for marine environments, poolside equipment, and outdoor plumbing where fasteners are exposed to salt air or moisture.

2. Anti-Seize Properties: Brass has natural low-friction characteristics. This ensures that even after long periods of use in damp environments, the nut can still be removed by hand without the threads "locking" or seizing.

3. Conductivity & Spark Resistance: Brass is non-ferrous and does not spark, making these wing nuts safer for use in volatile environments or electrical applications where grounding is necessary.

4. Professional Finish: The natural gold-like luster of brass provides a high-end, clean appearance that is highly valued in architectural projects and consumer-facing product designs.

Common Industrial and Commercial Uses

Brass wing nuts are essential in sectors where speed of assembly and corrosion protection are prioritized:

• Marine & Boating: Used for battery terminals, hatch covers, and adjustable rigging where tool-free operation in saltwater environments is critical.

• Drums & Musical Instruments: Standard for securing cymbals and adjusting hardware stands, where brass provides both durability and a complementary aesthetic.

• Electrical & Lighting: Frequently used in temporary power setups or lighting fixtures to secure panels and adjust lamp positions.

• Laboratory & Industrial Equipment: Ideal for filter housings and access panels that technicians must open daily for inspection or cleaning.

Technical Summary for Cataloging

• Material: Solid Brass / Forged Brass (CW614N or equivalent).

• Thread Type: Metric (M4 to M20) and Imperial (UNC/UNF).

• Standards: Commonly manufactured to DIN 315 or ASME B18.6.9 specifications.

• Finish: Natural Brass, Polished Brass, or Chrome/Nickel plating for extra wear resistance.
