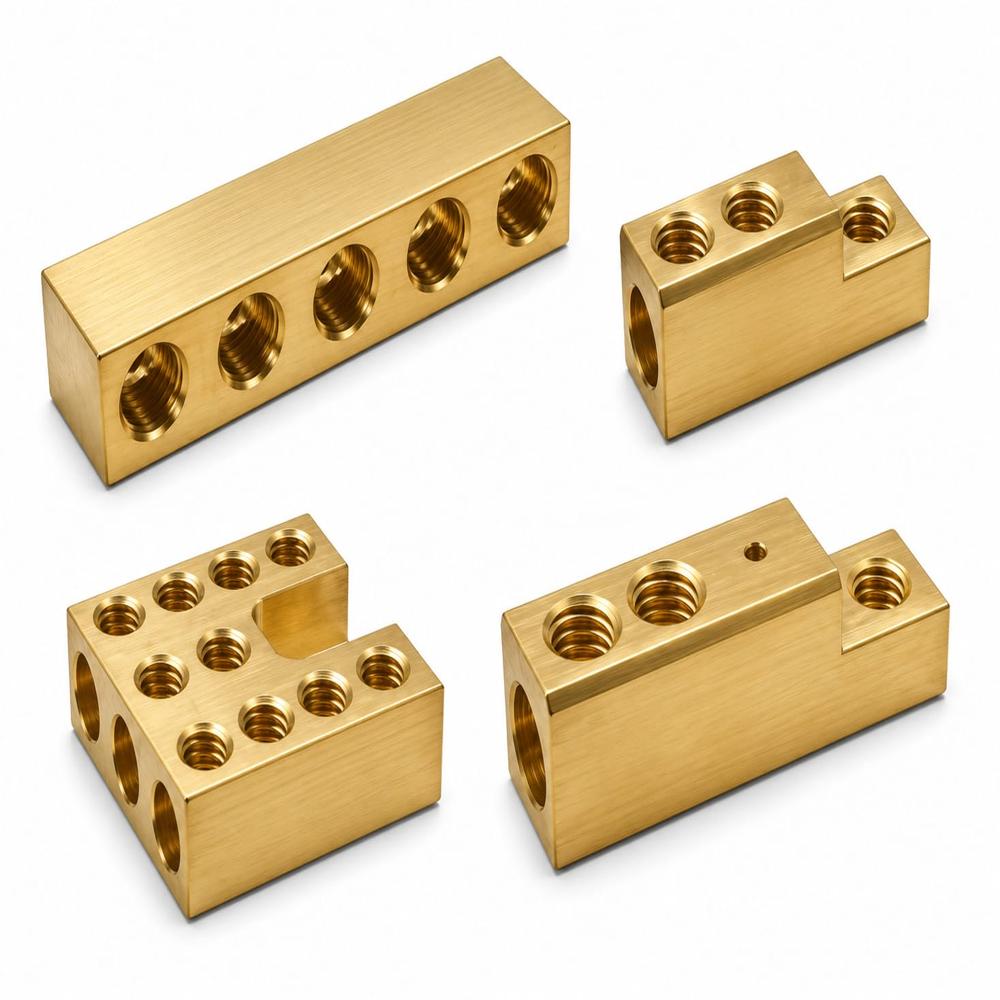

BRASS TERMINAL BLOCK

Product Description

Brass terminal blocks are foundational components in electrical engineering, serving as the primary junction point for connecting and distributing power or signals within a circuit. Manufactured typically from high-grade free-cutting brass, these blocks are favored for their excellent balance of electrical conductivity, mechanical strength, and corrosion resistance.

Material Composition and Properties

While copper offers higher conductivity, brass (an alloy of copper and zinc) is preferred for terminal blocks due to its superior machinability and structural integrity. This allows for the creation of intricate, high-precision threads that can withstand significant torque during wire installation without stripping. To prevent oxidation and "whiskering," these blocks are frequently nickel-plated or tin-plated, which also enhances solderability and provides a professional finish.

Design and Connectivity

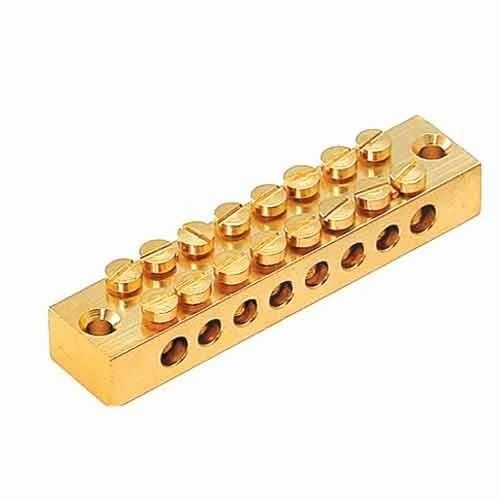

The core design of a brass terminal block usually features a solid metallic body with multiple bored holes. Wires are secured using:

• Set-Screws: Directly clamping the wire against the brass body.

• Clamping Plates: Distributing pressure evenly to prevent damage to stranded wires.

These blocks are categorized by their mounting styles, such as PCB-mount, DIN-rail, or Panel-mount, and are rated based on their "pitch" (the distance between the center of two consecutive poles).

Key Applications

• Industrial Automation: Used in control panels to organize complex wiring harnesses.

• Power Distribution: Serving as "Neutral Links" or "Earth Bars" in domestic and industrial switchgears.

• HVAC & Appliances: Providing heat-resistant connection points in high-temperature environments where plastic connectors might fail.

Advantages

The primary benefit of using brass is its thermal stability. Unlike some synthetic connectors, brass does not degrade under heat, ensuring a low-resistance path over decades of service. Furthermore, its non-magnetic properties make it ideal for sensitive electronic applications where electromagnetic interference must be minimized.
