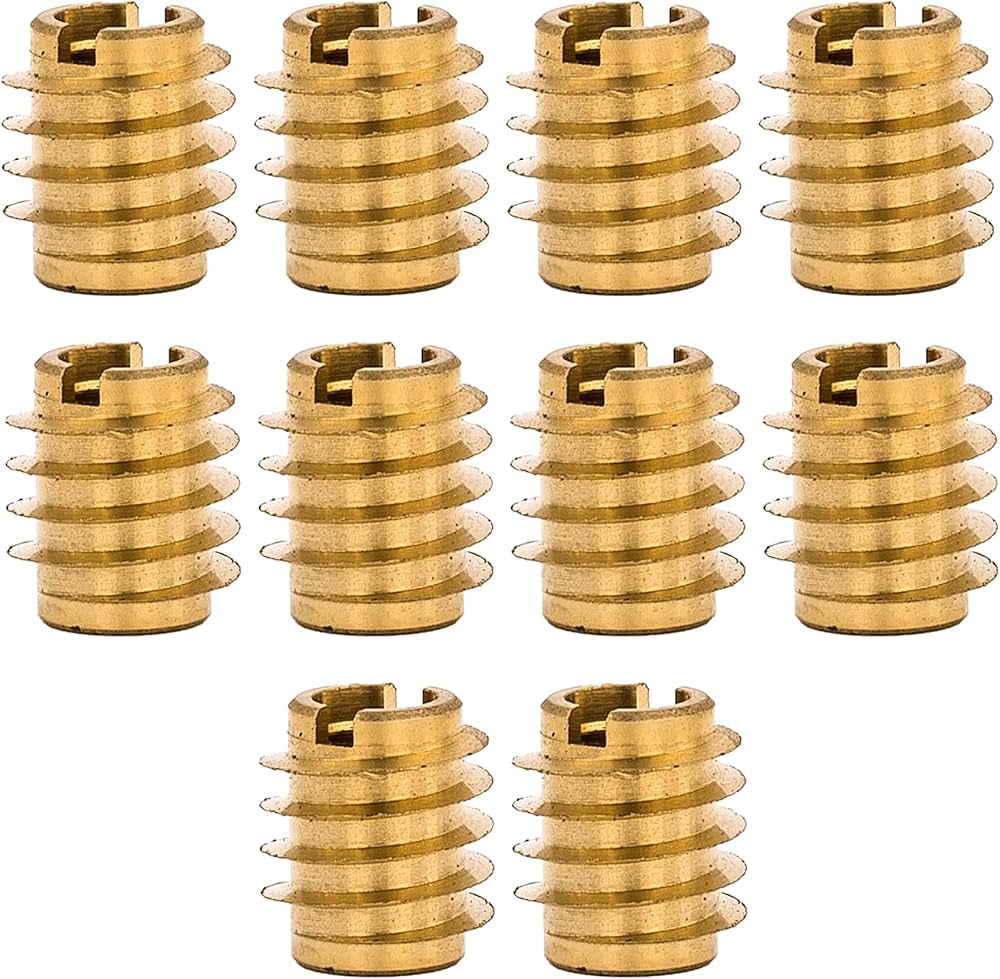

Brass Wood Insert
Product Details:
- Material BRASS
- Product Type Brass Wood Insert
- Size MULTI
- Type Brass Wood Insert
- CNC Machining Yes
- Diameter M4 to M12
- Tolerance 0.02 mm
- Click to View more
Brass Wood Insert Price And Quantity
- 1000 Kilograms
- 1150.0 INR/Kilograms
Brass Wood Insert Product Specifications
- Brass Wood Insert
- MULTI
- Brass Wood Insert
- Other
- 0.02 mm
- BRASS
- M4 to M12
- Yes
- Other
- Natural, Nickel Plated, Tin Plated or as required
- 6 mm to 40 mm
- 80-100 HV
- Suitable for Wood and Wooden Products
- DIN, ISO or as per customer design
- Yes
- Press Fit, Screw Fit or Ultrasonic Fit
- -30C to +120C
- High Grade Brass
- Metric, UNC, UNF, BSW
Brass Wood Insert Trade Information
- Cash in Advance (CID)
- 5000 Kilograms Per Month
- 2 Week
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
A brass wood insert (often called a threaded wood nut or furniture nut) is a high-strength fastener designed to provide a permanent, machine-screw thread in wood, plywood, or particle board. Unlike standard wood screws, which can strip the wood fibers after repeated removal, brass inserts allow for multiple assembly and disassembly cycles without damaging the host material.
Thread Geometry and Retention
The effectiveness of a wood insert lies in its dual-thread design:
-
External "Knife" Threads: The outer surface features deep, aggressive, and wide-spaced threads. These are designed to slice cleanly into wood fibers or composite grains, creating a massive surface area that resists being pulled out.
-
Internal Machine Threads: The inner core contains standard metric or imperial threads (e.g., M6, M8, or 1/4-20), allowing for the use of high-strength bolts and furniture connectors.
Installation Methods
Brass wood inserts are typically installed using one of two primary designs:
-
Hex-Drive (Screw-In): These feature a hex socket at the top, allowing them to be driven into a pre-drilled hole using an Allen key or power driver. This is the preferred method for hardwoods like oak or maple.
-
Knife-Thread (Self-Tapping): Designed with a slotted end, these act like a tap, carving their own path into softer woods or MDF to ensure a flush, perpendicular fit.
Primary Applications
-
Ready-to-Assemble (RTA) Furniture: Providing durable joints for beds, tables, and cabinets that may need to be moved or reconfigured.
-
Audio Equipment: Mounting speakers and drivers into wooden enclosures to ensure a vibration-proof seal.
-
Marine Cabinetry: Used in boat interiors where brasss natural resistance to salt-air corrosion is essential.
-
Jigs and Fixtures: Creating reusable mounting points on wooden workstations and tool benches.
Versatile Fastening Solution for Wood
Brass Wood Inserts deliver reliable performance across a range of wooden applications. Designed for both standard and custom requirements, they offer exceptional versatility with multiple thread options and fitting methods. Their robust construction and high-quality finishes ensure long-lasting, corrosion-resistant connections, making them suitable for numerous industries including furniture, cabinetry, and construction.
Precision and Durability
Manufactured with tight tolerances using CNC machining, these inserts guarantee consistent and secure fitting. Their material hardness and operating temperature range assure stability under varying conditions. Suitable for demanding environments, they maintain performance whether exposed to low or high temperatures, making them an ideal component for professional and industrial use.
FAQ's of Brass Wood Insert:
Q: How are Brass Wood Inserts installed in wooden products?
A: Brass Wood Inserts can be installed using press fit, screw fit, or ultrasonic fit methods. The chosen installation depends on the specific application, the wood type, and the desired strength of the connection.Q: What types of finishes are available for Brass Wood Inserts?
A: These inserts are offered in natural brass, nickel-plated, tin-plated finishes, or any custom finish as required, ensuring adaptability to various environments or aesthetic preferences.Q: Where are Brass Wood Inserts commonly used?
A: They are widely used in woodworking industries, including furniture manufacturing, cabinetry, and other wooden products where strong, threaded fastenings are required.Q: What are the benefits of using brass inserts over other materials?
A: Brass offers excellent corrosion resistance, durability, and stability across a wide temperature range. This ensures a long service life and less maintenance compared to inserts made from other materials.Q: What thread types and sizes are supported by these inserts?
A: Brass Wood Inserts come in multiple thread types including Metric, UNC, UNF, and BSW. Sizes range in diameter from M4 to M12, with lengths from 6 mm up to 40 mm, accommodating various application needs.Q: What is the manufacturing process for these wood inserts?
A: Brass Wood Inserts are precisely manufactured using CNC machining to meet strict tolerances (up to 0.02 mm), adhering to DIN, ISO, or custom standards as requested by customers.Q: When should I consider using a nickel or tin plated finish for my brass inserts?
A: Nickel or tin plating adds further corrosion resistance and can improve the appearance of the insert. They are recommended for environments with higher humidity, chemical exposure, or where specific aesthetic qualities are desired.
