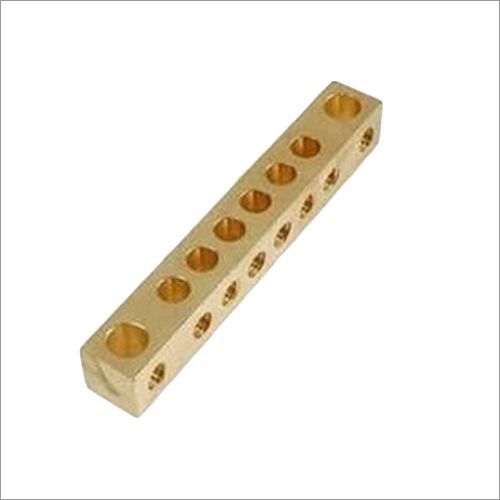

BRASS EARTH LINK

Product Description

A brass earth link is a specialized electrical connector used to join multiple grounding wires or to provide a disconnectable bridge between different parts of a grounding system. While similar to a bus bar, an earth link is often more compact and is frequently used as a terminal block within distribution boards to ensure every circuit has a secure path to the main earthing terminal.

Composition and Durability

These links are typically manufactured from high-grade brass (CW614N or CZ121), which provides the necessary mechanical strength to withstand repeated tightening of terminal screws. Brass is inherently resistant to rust, making it ideal for the long-term reliability required in safety components. For enhanced protection against galvanic corrosionespecially when used in outdoor or damp environmentsthey are commonly finished with tin or nickel plating, which ensures a consistent, low-resistance connection over time.

Functional Design

• Segmented Layout: Earth links often feature a series of holes with heavy-duty brass screws, allowing for the organized termination of multiple earth conductors.

• Disconnecting Feature: In many industrial configurations, earth links are equipped with a "removable link" or "sliding bridge." This allows engineers to isolate the earth system for maintenance and resistance testing without having to physically disconnect every individual cable.

• Mounting Versatility: They are designed to be mounted on base plates or insulated stand-offs, depending on whether they need to be isolated from or bonded to the enclosure.

Applications and Importance

Brass earth links are vital in consumer units, industrial control panels, and telecom base stations. By providing a reliable, centralized point for grounding, they prevent "floating grounds" and ensure that circuit breakers or RCDs trip instantly during a fault. Their robust construction ensures they can handle the high thermal stress of a short-circuit, maintaining the integrity of the safety system when it is needed most.
